How do Spherical Plain Bearings solve the wear problem of heavy machinery?

Spherical plain bearings effectively deal with wear problems in heavy machinery through their unique design characteristics and material advantages, which are specifically reflected in the following aspects:

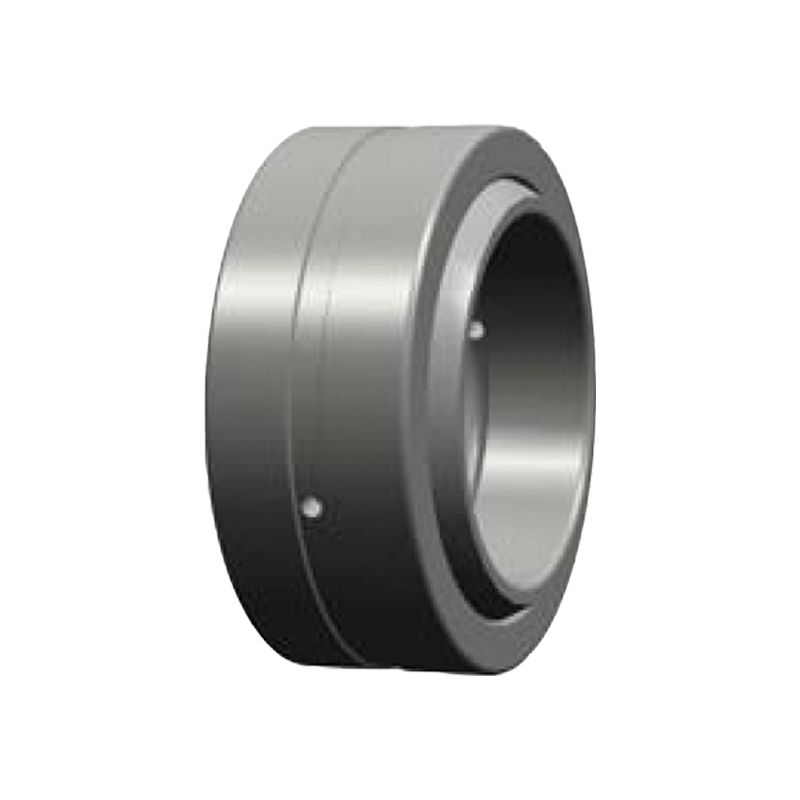

GE...(E)ES-2RS Automatic Transmission Spherical Plain Bearing

1. Adaptive angle compensation to reduce edge stress concentration

Design principle:
The inner and outer ring contact surfaces of spherical plain bearings are spherical, allowing the shaft to swing freely within a certain angle range (usually ±1°~±15°). This design enables the bearing to automatically adapt to the angle changes caused by installation errors, shaft deflection or dynamic loads, avoiding the edge stress concentration caused by rigid constraints in traditional bearings.
Actual effect:
In heavy machinery (such as excavators and cranes), the slight deflection or vibration of the shaft will be absorbed by the spherical structure of the bearing, reducing the risk of local wear. For example, when the crane boom swings, the bearing can flexibly adjust with the angle change to avoid early failure caused by rigid contact.

2. Combination of high load-bearing capacity and wear-resistant materials

Material selection:
Inner ring/outer ring: usually high carbon chromium bearing steel (such as GCr15) is used, the surface hardness can reach HRC60-64, and it has excellent fatigue resistance and wear resistance.
Liner/sliding layer: optional copper-based alloy, PTFE composite material or self-lubricating coating (such as MoS₂), forming a transfer film under heavy load to reduce the friction coefficient (usually μ<0.1).
Application case:
In mining crushers, bearings need to withstand impact loads and dust erosion. Spherical plane bearings with copper-based alloy liners reduce wear through self-lubricating properties, while resisting dust embedding and extending service life.

3. Self-lubricating and maintenance-free design

Technical features:
Solid lubrication: Some models have built-in solid lubricants (such as graphite, molybdenum disulfide), which can maintain low friction without external lubrication.
Sealing structure: integrated dust cover or sealing ring to prevent impurities from entering the contact surface while retaining lubricant.
Advantages comparison:
Traditional bearings require regular oiling and maintenance, while self-lubricating spherical plane bearings can run continuously for thousands of hours in harsh environments (such as high temperature, high humidity, and dust), reducing downtime and maintenance costs.

4. Distributed load, reduced unit pressure

Contact surface optimization:
The spherical contact design makes the load distribution more uniform and significantly reduces the pressure per unit area. For example, traditional plane bearings are prone to local high pressure (which may exceed the yield strength of the material) when they are eccentrically loaded, while spherical bearings disperse the pressure to a larger area through spherical contact.
Calculation example:
Assuming the load is 100kN, the contact area of ​​the traditional bearing is 0.01m², and the unit pressure is 10MPa; the spherical bearing expands the area to 0.02m² through spherical contact, and the unit pressure is reduced to 5MPa, significantly reducing the wear rate.

5. Impact and fatigue resistance design

Structural reinforcement:
Thick-walled outer ring: Enhanced deformation resistance, suitable for heavy-load impact scenarios.
Optimized raceway geometry: Optimize contact stress distribution through finite element analysis to reduce the risk of fatigue cracks.
Measured data:
In the vibration screening equipment, the spherical plane bearing with enhanced design is used, and its fatigue life is more than 3 times longer than that of traditional bearings, and the failure rate is reduced by 70%.
