SB series insert bearings are high performance bearings designed to meet the heavy load and high speed requirements in industrial and mechanical applications. Its unique design features include a spherical outer ring for easy installation and adjustment, while the internal structure uses high-quality steel and advanced lubrication technology to ensure excellent wear resistance and fatigue resistance. SB series insert bearings are widely used in motors, fans, conveyor belts and other rotating equipment. They have good sealing performance and effectively prevent the intrusion of dust and dirt, thus extending their service life. This series of bearings offers a variety of sizes and configurations, making it easy for users to choose according to specific needs. It has good compatibility and adaptability and is an indispensable key component in modern industry.

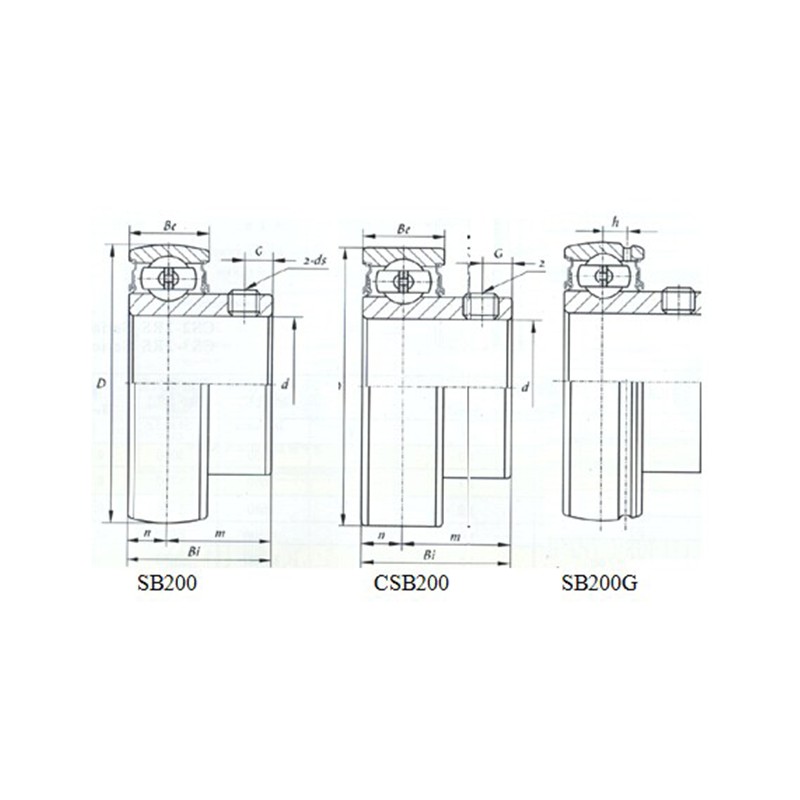

Product parameters
| Bearing No. | d | Dimensions（mm） | ||||||
| (mm) | (in.) | D | Bi | Be | n | G | ds | |
| SB201 | 12 | 40 | 22 | 12 | 6 | 4.5 | M5x0.8 | |
| SB201-8 | 12.7 | 1/2 | 40 | 22 | 12 | 6 | 4.5 | 10-32UNF |
| SB202 | 15 | 40 | 22 | 12 | 6 | 4.5 | M5x0.8 | |
| SB202-10 | 15.875 | 5/8 | 40 | 22 | 12 | 6 | 4.5 | 10-32UNF |
| SB203 | 17 | 40 | 22 | 12 | 6 | 4.5 | M5x0.8 | |
| SB203-11 | 17.462 | 11/16 | 40 | 22 | 12 | 6 | 4.5 | 10-32UNF |
| SB204-12 | 19.05 | 3/4 | 47 | 25 | 14 | 7 | 4.5 | 1/4-28UNF |
| SB204 | 20 | 47 | 25 | 14 | 7 | 4.5 | M6x1.0 | |
| SB205-14 | 22.225 | 7/8 | 52 | 27 | 15 | 7.5 | 5.5 | 1/4-28UNF |
| SB205 | 25 | 52 | 27 | 15 | 7.5 | 5.5 | M6x1.0 | |
| SB205-16 | 25.4 | 1 | 52 | 27 | 15 | 7.5 | 5.5 | 1/4-28UNF |
| SB206-18 | 28.575 | 11/8 | 62 | 30 | 16 | 8 | 6 | 1/4-28UNF |
| SB206 | 30 | 62 | 30 | 16 | 8 | 6 | M6x1.0 | |
| SB206-19 | 30.162 | 13/16 | 62 | 30 | 16 | 8 | 6 | 1/4-28UNF |
| SB206-20 | 31.75 | 11/4 | 62 | 30 | 16 | 8 | 6 | 1/4-28UNF |
| SB207-20 | 31.75 | 11/4 | 72 | 32 | 17 | 8.5 | 6.5 | 5/16-24UNF |
| SB207-22 | 34.925 | 13/8 | 72 | 32 | 17 | 8.5 | 6.5 | 5/16-24UNF |
| SB207 | 35 | 72 | 32 | 17 | 8.5 | 6.5 | M8x1.0 | |
| SB207-23 | 36.513 | 17/16 | 72 | 32 | 17 | 8.5 | 6.5 | 5/16-24UNF |
| SB208-24 | 38.1 | 11/2 | 80 | 34 | 18 | 9 | 7 | 5/16-24UNF |
| SB208-25 | 39.688 | 19/16 | 80 | 34 | 18 | 9 | 7 | 5/16-24UNF |
| SB208 | 40 | 80 | 34 | 18 | 9 | 7 | M8x1.0 | |
| SB209-26 | 41.275 | 15/8 | 85 | 41.2 | 19 | 9.5 | 8.2 | 5/16-24UNF |
| SB209-27 | 42.863 | 11/6 | 85 | 41.2 | 19 | 9.5 | 8.2 | 5/16-24UNF |
| SB209 | 45 | 85 | 41.2 | 19 | 9.5 | 8.2 | M8x1.0 | |
| SB209-28 | 44.45 | 13/4 | 85 | 41.2 | 19 | 9.5 | 8.2 | 5/16-24UNF |
| SB210-30 | 47.625 | 17/8 | 90 | 41.6 | 20 | 10 | 9.2 | 5/16-24UNF |
| SB210-31 | 49.213 | 15/16 | 90 | 41.6 | 20 | 10 | 9.2 | 5/16-24UNF |
| SB210 | 50 | 90 | 41.6 | 20 | 10 | 9.2 | M8x1.0 | |
| SB211-32 | 50.8 | 2 | 100 | 45.3 | 24 | 12 | 9.8 | 5/16-24UNF |
| S211-34 | 53.975 | 21/8 | 100 | 45.3 | 24 | 12 | 9.8 | 5/16-24UNF |
| SB211 | 55 | 100 | 45.3 | 24 | 12 | 9.8 | M8x1.0 | |
| SB211-35 | 55.563 | 23/16 | 100 | 45.3 | 24 | 12 | 9.8 | 3/8-24UNF |
| SB212-36 | 57.15 | 21/4 | 110 | 53.7 | 24 | 14.9 | 9.8 | 3/8-24UNF |
| SB212 | 60 | 110 | 53.7 | 24 | 14.9 | 9.8 | M10x1.25 | |
| SB212-38 | 60.325 | 23/8 | 110 | 53.7 | 24 | 14.9 | 9.8 | 3/8-24UNF |
