6000 Series

Send inquiry

Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
6000	10	26	8	0.3	4.55	1.96	2900	3400	0.019
6001	12	28	8	0.3	5.1	2.39	2600	3000	0.021
6002	15	32	9	0.3	5.6	2.83	2200	2600	0.03
6003	17	35	10	0.3	6.8	3.35	2000	2400	0.039
6004	20	42	12	0.6	9.4	5.05	1800	2100	0.069
6005	25	47	12	0.6	10.1	5.85	1500	1800	0.08
6006	30	55	13	1	13.2	8.3	1300	1500	0.116
6007	35	62	14	1	16	10.3	1200	1400	0.155
6008	40	68	15	1	16.8	11.5	1000	1200	0.19
6009	45	75	16	1	21	15.1	9200	1100	0.237
6010	50	80	16	1	21.8	16.6	8400	9000	0.261
6011	55	90	18	1.1	28.3	21.2	7700	9000	0.388
6012	60	95	18	1.1	29.5	23.2	7300	8300	0.414
6013	65	100	18	1.1	30.5	25.2	6500	7700	0.421
6014	70	110	20	1.1	38	31	6100	7100	0.604
6015	75	115	20	1.1	39.5	33.5	5700	6700	0.649
6016	80	125	22	1.1	47.5	40	5300	6200	0.854
6017	85	130	22	1.1	49.5	43	5000	5900	0.89
6018	90	140	24	1.5	58	49.5	4700	5600	1.02
6019	95	145	24	1.5	60.5	54	4500	5300	1.08
6020	100	150	24	1.5	60	54	4200	5000	1.15
6021	105	160	26	2	72.5	65.5	4000	4700	1.59
6022	110	170	28	2	82	73	3800	4500	1.96
6024	120	180	28	2	85	79.5	3500	4100	2.07
6026	130	200	33	2	106	101	3200	3800	3.16
6028	140	210	33	2	110	109	3000	3500	3.35
6030	150	225	35	2.1	126	126	2800	3200	4.08
6032	160	240	38	2.1	143	144	2600	3000	5.05
6034	170	260	42	2.1	168	172	2400	2800	6.76
6036	180	280	46	2.1	189	199	2300	2700	8.8
6038	190	290	46	2.1	197	215	2100	2500	9.18
6040	200	310	51	2.1	218	243	2000	2400	11.9
60/22	22	44	12	0.6	955	515	1700	2000	0.074
60/28	28	52	12	0.6	1270	755	1400	1600	0.098
60/32	32	58	13	1	1200	820	1200	1500	0.129

6000 Series

6000 Series Deep Groove Ball Bearing is the most common type of rolling bearing. It has the characteristics of simple structure, easy use and high limit speed. It mainly bears radial load and can also...

Product parameters

×

6200 Series

Send inquiry

Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
6200	10	30	9	0.6	5.1	2.39	25000	30000	0.032
6201	12	32	10	0.6	6.1	2.75	22000	26000	0.037
6202	15	35	11	0.6	7.75	3.6	19000	23000	0.045
6203	17	40	12	0.6	9.6	4.6	18000	21000	0.066
6204	20	47	14	1	12.8	6.65	16000	18000	0.106
6205	25	52	15	1	14	7.85	13000	15000	0.128
6206	30	62	16	1	19.5	11.3	11000	13000	0.199
6207	35	72	17	1.1	25.7	15.3	9800	11000	0.288
6208	40	80	18	1.1	29.1	17.8	8700	10000	0.366
6209	45	85	19	1.1	32.5	20.4	7800	9200	0.398
6210	50	90	20	1.1	35	23.2	7100	8300	0.454
6211	55	100	21	1.5	43.5	29.2	6400	7600	0.601
6212	60	110	22	1.5	52.5	36	6000	7000	0.783
6213	65	120	23	1.5	57.5	40	5500	6500	0.99
6214	70	125	24	1.5	62	44	5100	6000	1.07
6215	75	130	25	1.5	66	49.5	4800	5600	1.18
6216	80	140	26	2	72.5	53	4500	5300	1.4
6217	85	150	28	2	83.5	64	4200	5000	1.79
6218	90	160	30	2	96	71.5	4000	4700	2.15
6219	95	170	32	2.1	109	82	3700	4400	2.62
6220	100	180	34	2.1	122	93	3500	4200	3.14
6221	105	190	36	2.1	133	105	3400	4000	3.7
6222	110	200	38	2.1	144	117	3200	3800	4.36
6224	120	215	40	2.1	155	131	2900	3400	5.15
6228	140	250	42	3	166	150	2500	2900	7.57
6232	160	290	48	3	185	186	2100	2500	11.7
6234	170	310	52	4	212	223	20000	2400	14.5
6236	180	320	52	4	227	241	19000	22000	15.1
6238	190	340	55	4	255	281	18000	21000	18.2
6244	220	400	65	4	297	365	15000	18000	30.2
62/22	22	50	14	1	1320	690	14000	17000	0.117
62/28	28	58	16	1	1830	995	12000	14000	0.171
62/32	32	65	17	1	2110	1190	11000	12000	0.226

6200 Series

6200 Series Deep Groove Ball Bearing is a widely used bearing type. It has the characteristics of strong load-bearing capacity, smooth operation and low noise. It is suitable for mechanical equipment ...

Product parameters

×

6300 Series

Send inquiry

Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
6301	12	37	12	1	9.7	4.2	20000	24000	0.06
6302	15	42	13	1	11.4	5.45	17000	21000	0.082
6303	17	47	14	1	13.6	6.55	15000	18000	0.115
6304	20	52	15	1.1	15.9	7.8	14000	17000	0.145
6305	25	62	17	1.1	22.4	11.5	11000	14000	0.232
6306	30	72	19	1.1	28.1	15.8	9500	12000	0.348
6307	35	80	21	1.5	33.4	19.2	8500	10000	0.458
6308	40	90	23	1.5	40.7	24	7500	9000	0.632
6309	45	100	25	1.5	52.8	31.8	6700	8000	0.848
6310	50	110	27	2	61.8	37.9	6000	7000	1.1
6311	55	120	29	2	71.6	44.8	5300	6300	1.399
6312	60	130	31	2.1	81.8	51.8	5000	6000	1.72
6313	65	140	33	2.1	93.8	60.5	4500	5600	2
6314	70	150	35	2.1	105	68	4300	5300	2.6
63/22	22	56	16	1.1	18.4	9.3	13000	15000	0.176

6300 Series

6300 series deep groove ball bearings are a widely used rolling bearing type. It has a simple structure and is easy to achieve high precision. The bearing has an inner diameter of 10mm and an outer di...

Product parameters

×

6400 Series

Send inquiry

Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
6403	17	62	17	1.1	22.7	10.8	14000	16000	0.27
6404	20	72	19	1.1	28.5	13.9	12000	14000	0.4
6405	25	80	21	1.5	34.5	17.5	10000	12000	0.53
6406	30	90	23	1.5	43.5	23.9	8800	10000	0.735
6407	35	100	25	1.5	55	31	7800	9100	0.952
6408	40	110	27	2	63.5	36.5	7000	8200	1.23
6409	45	120	29	2	77	45	6300	7400	1.53
6410	50	130	31	2.1	83	49.5	5700	6700	1.88
6411	55	140	33	2.1	89	54	5200	6100	2.29
6412	60	150	35	2.1	102	64.5	4800	5700	2.77
6413	65	160	37	2.1	111	72.5	4400	5200	3.3
6414	70	180	42	3	128	89.5	4100	4800	4.83
6415	75	190	45	3	138	99	3800	4500	5.72
6416	80	200	48	3	164	125	3600	4200	6.76

6400 Series

6400 Series Deep Groove Ball Bearing is a widely used mechanical part. The inner diameter, outer diameter and width vary depending on the specific model. For example, the inner diameter of model 6411 ...

Product parameters

×

6700 Series

Send inquiry

Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
6700	10	15	3	0.1	1.01	0.555	3600	4200	0.0015
6701	12	18	4	0.2	0.93	0.53	8300	9500	0.002
6702	15	21	4	0.2	0.94	0.585	6600	7600	0.0025
6703	17	23	4	0.2	1	0.66	5000	6700	0.0025
6704	20	27	4	0.2	1.04	0.73	5000	5700	0.0045
6705	25	32	4	0.2	1.1	0.84	4000	4600	0.005
6706	30	37	4	0.2	1.14	0.95	3300	3800	0.006

6700 Series

6700 Series Deep Groove Ball Bearing is a rolling bearing used in a wide range of applications. Its inner diameter is 10mm, outer diameter is 15mm, and thickness is 3mm (some say 4mm). This type of be...

Product parameters

×

6800 Series

Send inquiry

Bearing Designation	Dimension（mm）				Basic load ratings (kN)		Speed ratings(rpm)		Weight
Bearing Designation	d	D	B	rs min	Cr	Cor	Grease	Oil	(Kg)
6800	10	19	5	0.3	1.83	0.925	32000	38000	0.005
6801	12	21	5	0.3	1.92	1.04	29000	35000	0.006
6802	15	24	5	0.3	2.08	1.26	26000	31000	0.007
6803	17	26	5	0.3	2.23	1.46	24000	28000	0.008
6804	20	32	7	0.3	4	2.47	21000	25000	0.019
6805	25	37	7	0.3	4.3	2.95	18000	21000	0.022
6806	30	42	7	0.3	4.7	3.65	15000	18000	0.026
6807	35	47	7	0.3	4.9	4.05	13000	16000	0.029
6808	40	52	7	0.3	5.1	4.4	12000	14000	0.033
6809	45	58	7	0.3	5.35	4.95	11000	12000	0.04
6810	50	65	7	0.3	6.6	6.1	9600	11000	0.052
6811	55	72	9	0.3	8.8	8.1	8700	10000	0.083
6812	60	78	10	0.3	11.5	10.6	8000	9400	0.106
6813	65	85	10	0.6	11.6	11	7400	8700	0.128
6814	70	90	10	0.6	12.1	11.9	6900	8100	0.137
6815	75	95	10	0.6	12.5	12.9	6400	7600	0.145
6816	80	100	10	0.6	12.7	13.3	6000	7100	0.154
6817	85	110	13	1	18.7	19	5700	6700	0.27
6818	90	115	13	1	19	19.7	5400	6300	0.285
6819	95	120	13	1	19.3	20.5	5000	5900	0.3
6820	100	125	13	1	19.6	21.2	4800	5600	0.313
6821	105	130	13	1	19.8	22	4600	5400	0.33
6822	110	140	16	1	24.9	28.2	4300	5100	0.515
6824	120	150	16	1	28.9	33	4000	4700	0.555
6826	130	165	18	1.1	37	41	3700	4300	0.8
6828	140	175	18	1.1	38.5	44.5	3300	4000	0.85
6830	150	190	20	1.1	47.5	55	3100	3700	1.16
6832	160	200	20	1.1	48.5	57	2900	3400	1.23
6834	170	215	22	1.1	60	70.5	2700	3200	1.63
6836	180	225	22	1.1	60.5	73	2600	3000	2.03
6838	190	240	24	1.5	73	88	2400	2900	2.62
6840	200	250	24	1.5	74	91.5	2300	2700	2.73

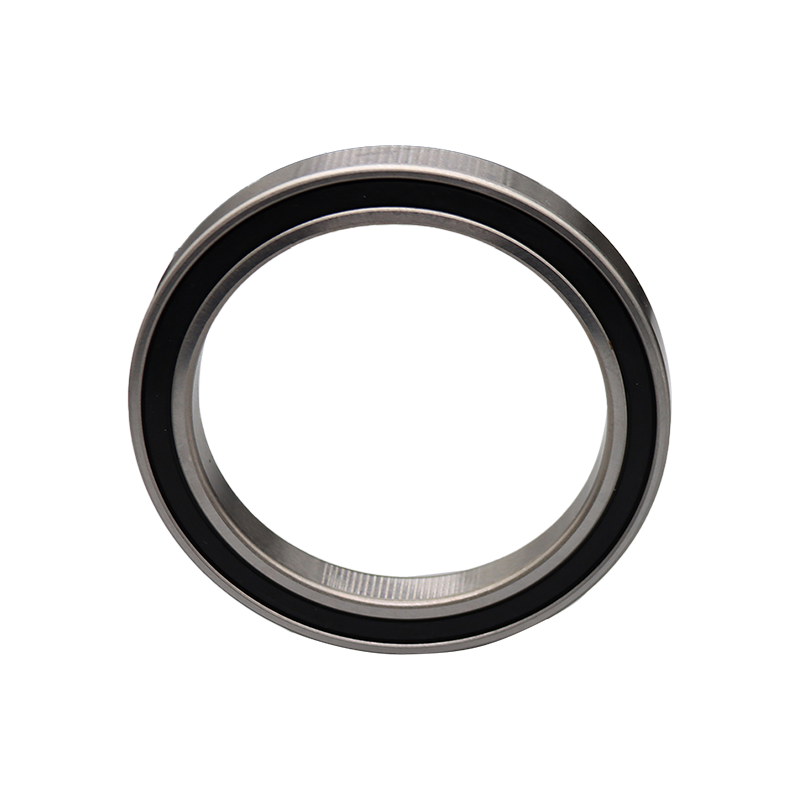

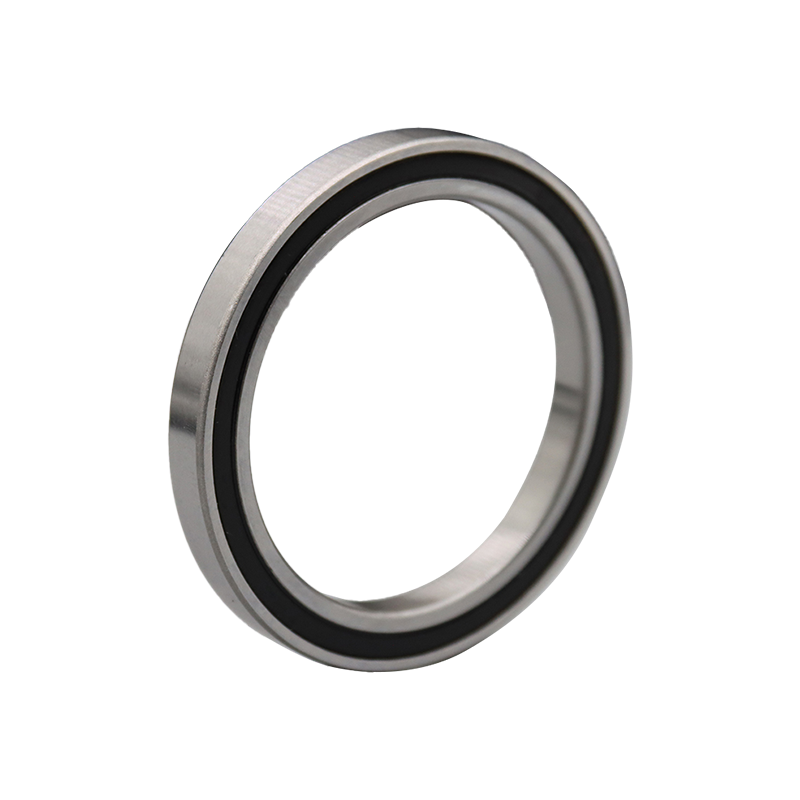

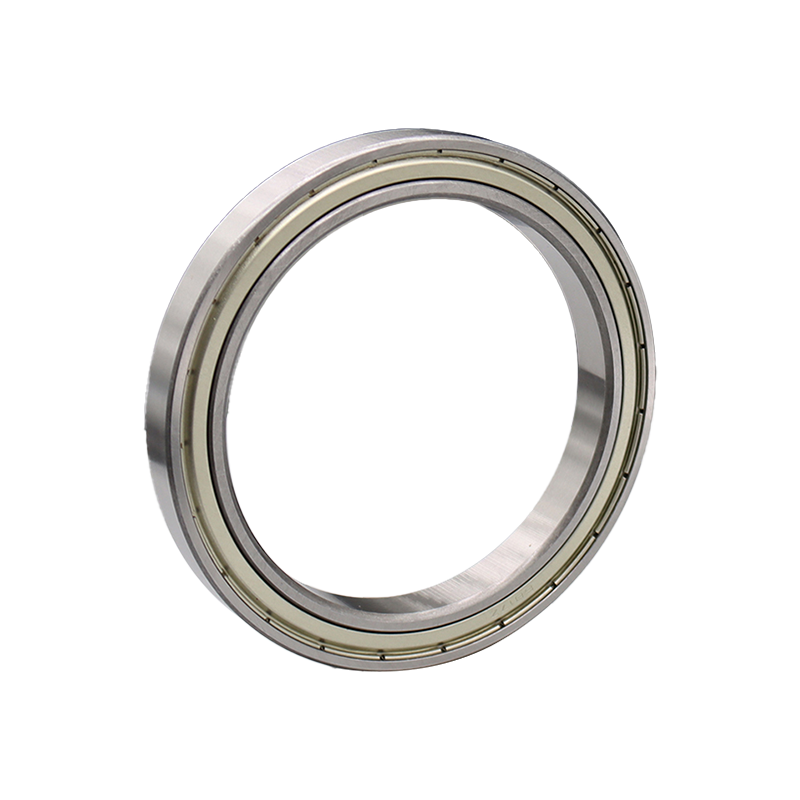

6800 Series

6800 Series Deep Groove Ball Bearing is a common bearing type. Its inner diameter is usually 10mm, outer diameter is 19mm, and width is 5mm. This series of bearings has the characteristics of simple s...

Product parameters
