Construction- Shanghai Yinin Bearing & Transmission Company

×

MTR Series

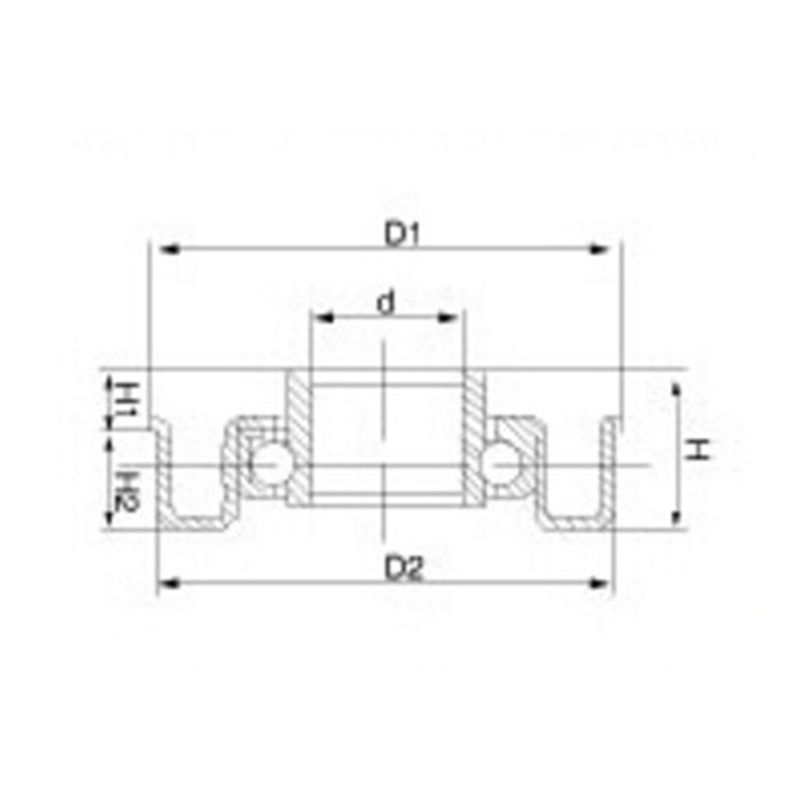

Item No.	D1	D2	H	H1	H2	d	Remark
MTR42.2	42.3	38.2+0.1	16.3	5.5	10.8	12.2+0.05	Black inner ring
MTR48.6	48.2	44+0.1	16	5.5	10.5	12.2	Black inner ring
MTR50.8	50.5	48+0.1	17	5.5	11.5	12.2+0.05	Black inner ring
MTR60.45	58.5	55+0.1	18	5.5	12.5	12.2+0.05	Black inner ring
MTR38	38-0.01	35-0.1	15.8	3.8	12	10.2	Black inner ring
MTR59	59+0.1	56-0.1	19.5	5	14.5	12.2	Black inner ring
MTR59	59+0.1	56-0.1	19.5	5	14.5	12.2	Black inner ring

MTR Series

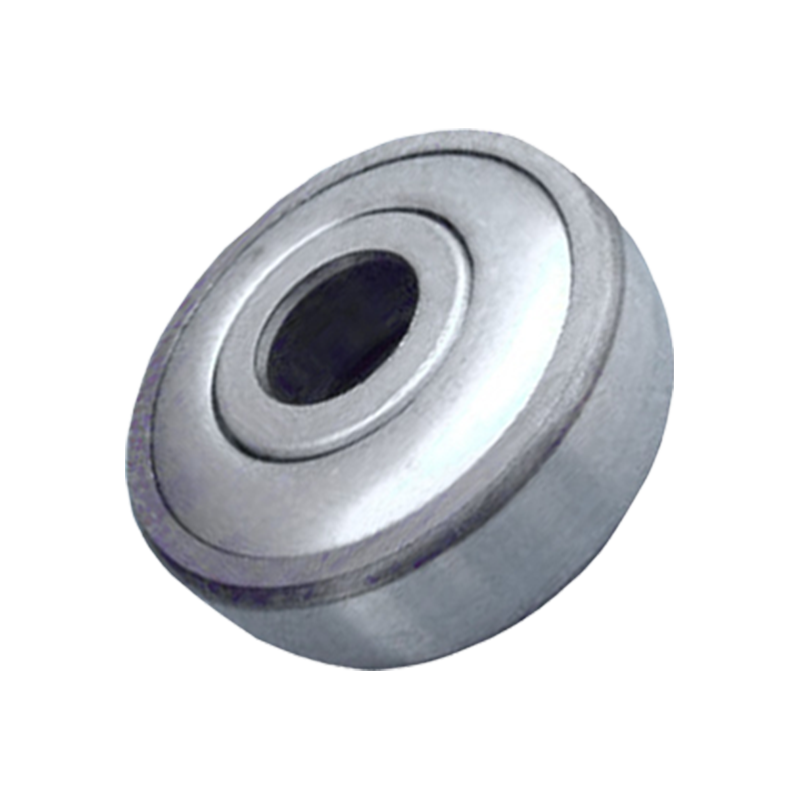

MTR series conveyor roller bearings are high-performance bearings designed for heavy-load and high-speed conveyor systems. This kind of bearing has excellent wear resistance and corrosion resistance, ...

Product parameters

×

W Series

Send inquiry

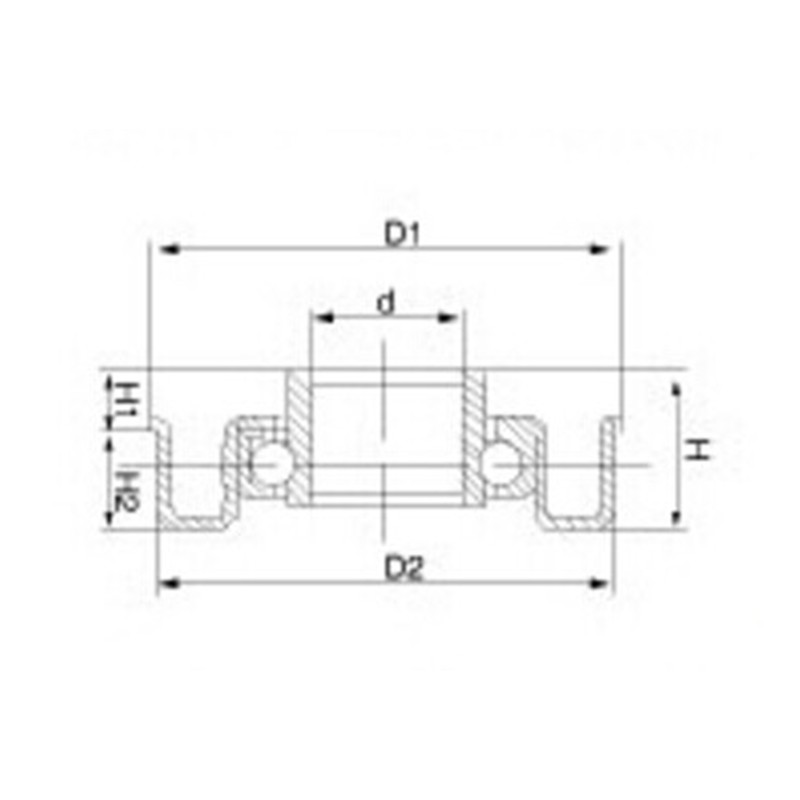

Item No.	D1	D2	H	H1	H2	d	Remark
1237W	40	37	13.5	8.5	5	12	Pressed steel cover
1238W	37.5	35	13.5	8.5	5	12	Pressed steel cover
1245W	45	42	15	10	5	12	Pressed steel cover
1250W	50	48	13.5	8.5	5	12	Pressed steel cover
1255W	55	51	16	11	5	12	Pressed steel cover
1260W	59	56	17	11.8	5.2	12	Pressed steel cover
1560W	60	55.5	16	10.5	5.5	15	Pressed steel cover
1257W	57	54	22	11	11	12	Pressed steel cover
1257-16	57	54	16	11	5	12	Pressed steel cover
1248W	48	42	15	13	2	12	Pressed steel cover

W Series

W Series Conveyor Roller Bearing is a rolling bearing specially designed for conveyor systems. It is often used in conveyor belt rollers to provide low friction and high-efficiency rotation support. T...

Product parameters

×

MRC Series

Send inquiry

Item No.	D1	D2	H	H1	H2	d	Remark
MRC1238	37.8	35.6	15	10	5	12.2	With precision ball bearing
MRC1238	38	35	15	10	5	12.2	With precision ball bearing
MRC1242	42	38	-	-	-	12.2	With precision ball bearing
MRC1250	50.8	48	18.5	12.8	5.7	12.2	With precision ball bearing
MRC1259	59	55	20	14	6	12.2	With precision ball bearing
MRC1260	60	56	20	14	6	12.2	With precision ball bearing
MRC1559	59	55	20	14	6	15.2	With precision ball bearing
MRC1560	60	56	20	14	6	15.2	With precision ball bearing
MRC2075	75	71	-	-	-	20	With precision ball bearing

MRC Series

The MRC Series Conveyor Roller Bearing is a high-performance industrial bearing designed specifically for conveyor systems to increase efficiency and durability. They are made of high-quality material...

Product parameters

×

KOLO Series

Send inquiry

Item No.	D	d	H	H1
KOLO 650	49.5	6.5	23.5	14.5
KOLO 1250	49.5	12	23.5	14.5
KOLO 1144	44	11	13.5	12.5
KOLO 1444	44	14	13.5	12.5
KOLO 1040	40	10	13	12
KOLO 1055	55	10	16	14
KOLO 1255	55	12	16	14
KOLO 1560	60	15	17	14.5
KOLO 1260	60	12	17	14.5
KOLO 0850	50	8	23.5	15
KOLO 0638	38	6	11	25
KOLO 0848	48	8	23.5	15
KOLO 0648	48	6	24	15.4
KOLO 0850-32	50	8	32	15

KOLO Series

KOLO series conveyor roller bearings are high-performance bearings designed specifically for conveyor systems with excellent durability and reliability. This series of bearings are made of high-qualit...

Product parameters

×

BT Series

Send inquiry

Item No.	D	D1	D2	R	H	H1	H2
BT5/8	48.5	32.2	40	4	19.9	16.4	15.35
BT1	70	51	52	5.5	31	23.5	18
BT1-1/4	86	63	70	7	39	31	22
BT1-1/2	-	-	-	-	-	-	-

BT Series

BT series conveying roller bearings are high-performance bearings specially designed for conveying systems and are widely used in material conveying and handling equipment. Its unique design ensures s...

Product parameters
