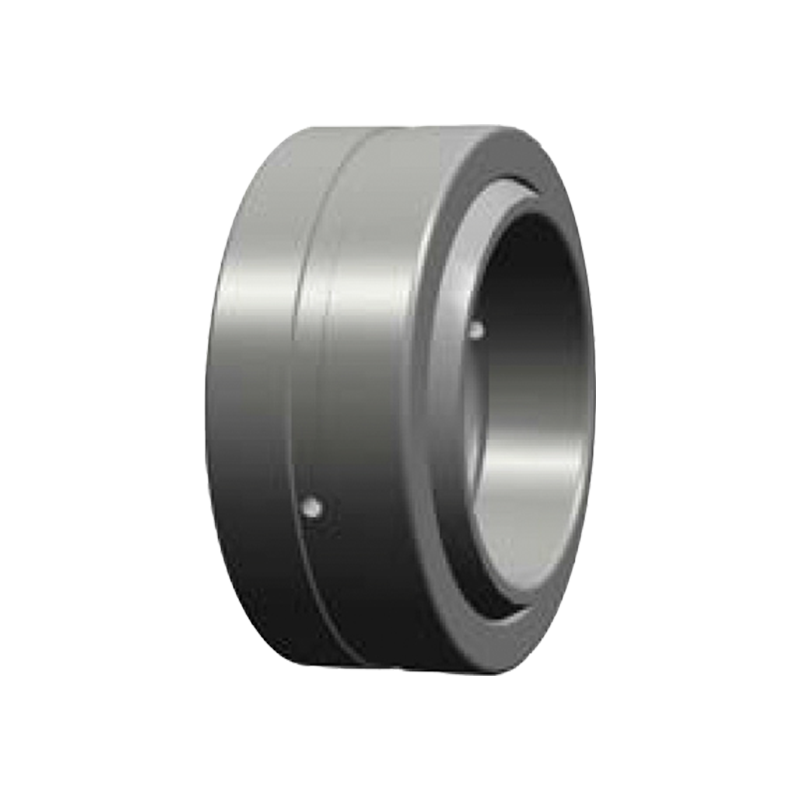

GE...(E)ES-2RS spherical plain bearings are high-performance rolling bearings designed to withstand higher loads and provide excellent movement flexibility. Its structural features include that both the inner and outer rings are spherical in design, allowing axial and radial displacement within a certain range to accommodate thermal expansion and assembly errors of the equipment. The bearing adopts a double-sided seal design, which can effectively prevent grease leakage and the intrusion of external pollutants, ensuring long-term stable operation. GE...(E)ES-2RS bearings are widely used in engineering machinery, aerospace, automotive, metallurgy and other fields, and can maintain excellent working performance and reliability in harsh environments. Its excellent wear resistance and low friction properties make it ideal for many heavy-duty and high-frequency applications.
Product parameters

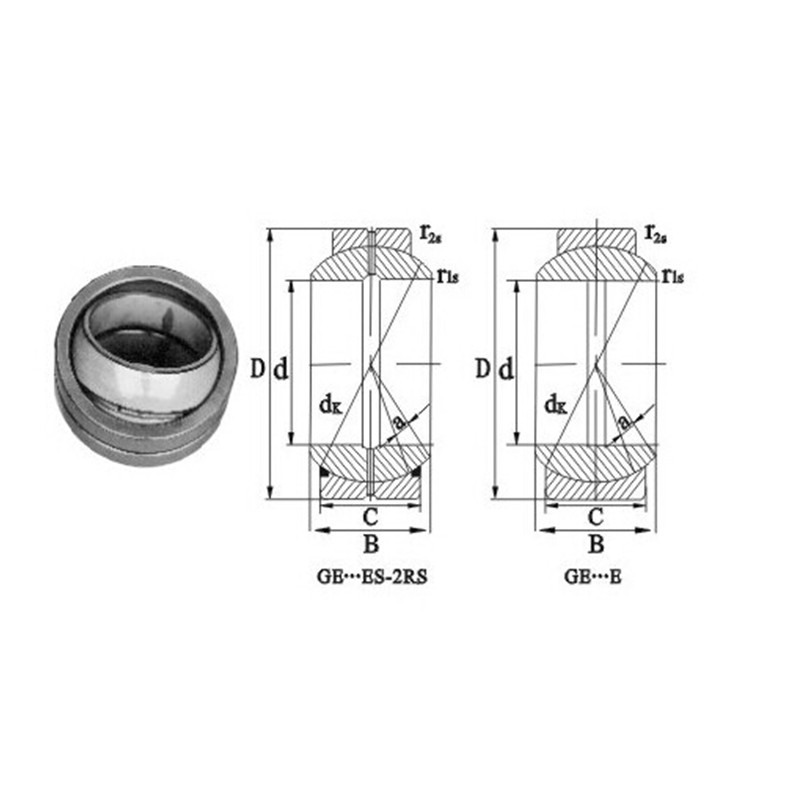

Designation | Dimensions (mm) | α· ≈ | Load Ratings (KN ) | Weight (kg) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Type1 | Type2 | d | D | B | C | dk | r1s min | r2s min | C | CO | ||
GE6E | - | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.4 | 17 | 0.004 |
GE8E | - | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.5 | 27.5 | 0.007 |
GE10E | - | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.15 | 40.5 | 0.011 |
GE12E | - | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 11 | 10.8 | 54 | 0.016 |
GB15ES | - | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 17 | 85 | 0.025 |
GE17ES | - | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21.2 | 106 | 0.041 |
GE20ES | GE20ES-2RS | 20 | 35 | 16 | 12 | 29 | 0.6 | 0.3 | 9 | 30 | 146 | 0.061 |
GE25ES | GE25ES-2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.11 |
GE30ES | GE30ES-2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.14 |
GE35ES | GE35ES-2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 80 | 400 | 0.22 |
GE40ES | GE40ES-2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 100 | 500 | 0.3 |
GE45ES | GE45ES-2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 640 | 0.4 |
GE50ES | GE50ES-2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.54 |
GE60ES | GE60ES-2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1 |
GE70ES | GE70ES-2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 315 | 1560 | 1.5 |
GB80BS | GE80ES-2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.2 |
GE90ES | GE90ES-2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 490 | 2450 | 2.7 |
GE100ES | GE100ES-2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 610 | 3050 | 4.3 |
GE110ES | GE110ES-2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 655 | 3250 | 4.7 |
GE120ES | GE120ES-2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8 |
GE140ES | GE140ES-2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 1080 | 5400 | 11 |
