SA series insert bearings are high-performance rolling bearings that are widely used in various mechanical equipment. The design of this bearing allows it to be mounted directly on the support structure, simplifying the installation process and improving work efficiency. SA series bearings have excellent load-carrying capacity and wear resistance, and can operate stably under high load and high speed conditions. The matching precision between the inner ring and the outer ring is high, which effectively reduces friction and heat and increases the service life. In addition, the sealing design of SA series bearings can effectively prevent the intrusion of dirt and moisture and adapt to harsh working environments. Due to their excellent performance, SA series insert bearings are widely used in agricultural machinery, conveying equipment, wind power generation and other industrial fields.

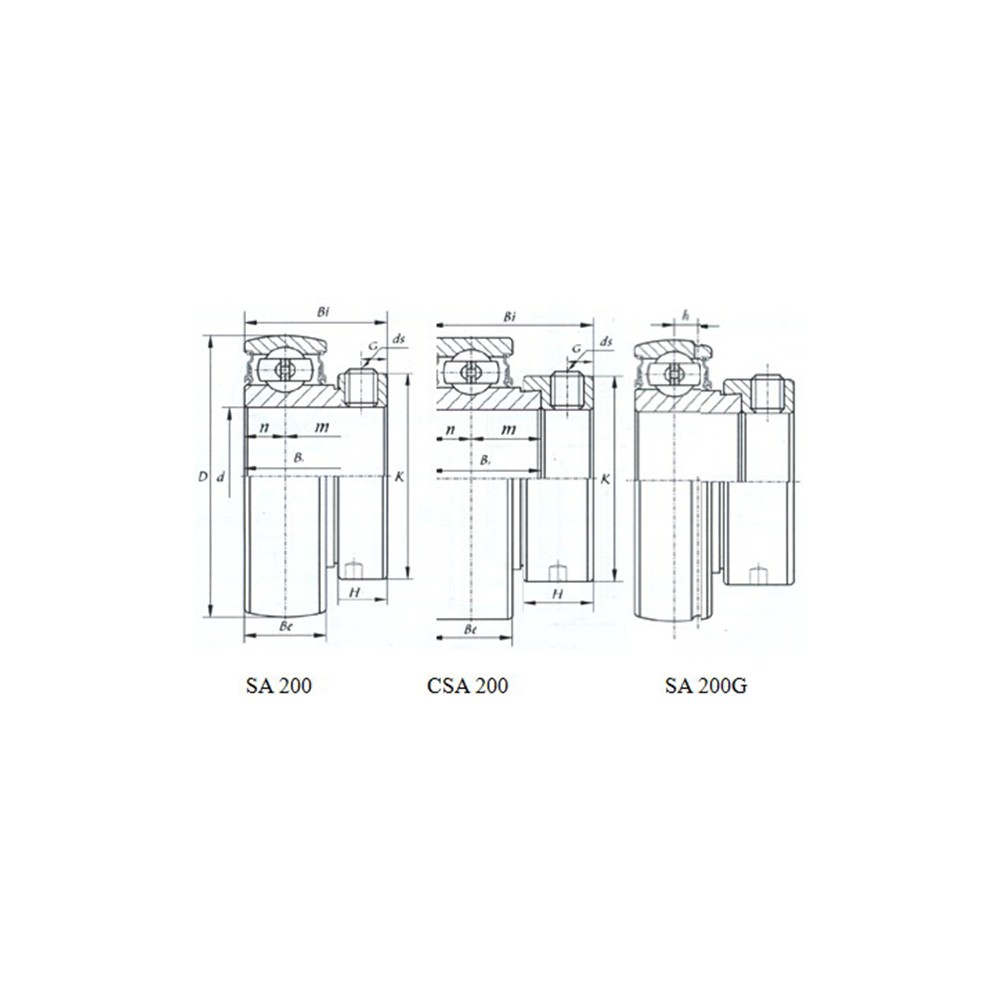

Product parameters
Bearing No. | d | Dimensions(mm) | |||||||||
(mm) | (in.) | D | Bi | Be | B1 | n | K | H | G | ds | |
SA201 | 12 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
SA201-8 | 12.7 | 1/2 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | 1/4-28UNF |
SA202 | 15 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
SA202-10 | 15.875 | 5/8 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | 1/4-28UNF |
SA203 | 17 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
SA203-11 | 17.462 | 11/16 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | 1/4-28UNF |
SA204-12 | 19.05 | 3/4 | 47 | 31 | 14 | 21.5 | 7.5 | 33.3 | 13.5 | 5 | 1/4-28UNF |
SA204 | 20 | 47 | 31 | 14 | 21.5 | 7.5 | 33.3 | 13.5 | 5 | M6x1 | |
SA205-14 | 22.225 | 7/8 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | 1/4-28UNF |
SA205 | 25 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | M6x1 | |
SA205-16 | 25.4 | 1 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | 1/4-28UNF |
SA206-18 | 28.575 | 11/8 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | 5/16-24UNF |
SA206 | 30 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | M8x1.0 | |
SA206-19 | 30.162 | 13/16 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | 5/16-24UNF |
SA206-20 | 31.75 | 11/4 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | 5/16-24UNF |
SA207-20 | 31.75 | 11/4 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | 5/16-24UNF |
SA207-22 | 34.925 | 13/8 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | 5/16-24UNF |
SA207 | 35 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | M8x1.0 | |
SA207-23 | 36.513 | 17/16 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | 5/16-24UNF |
SA208-24 | 38.1 | 11/2 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | 5/16-24UNF |
SA208-25 | 39.688 | 19/16 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | 5/16-24UNF |
SA208 | 40 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | M8x1.0 | |
SA209-26 | 41.275 | 15/8 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | 5/16-24UNF |
SA209-27 | 42.863 | 11/6 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | 5/16-24UNF |
SA209 | 45 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | M8x1.0 | |
SA209-28 | 44.45 | 13/4 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | 5/16-24UNF |
SA210-30 | 47.625 | 17/8 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | 5/16-24UNF |
SA210-31 | 49.213 | 15/16 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | 5/16-24UNF |
SA210 | 50 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | M8x1.0 | |
SA211-32 | 50.8 | 2 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | 3/8-24UNF |
SA211-34 | 53.975 | 21/8 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | 3/8-24UNF |
SA211 | 55 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | M10x1.25 | |
SA211-35 | 55.563 | 23/16 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | 3/8-24UNF |
SA212-36 | 57.15 | 21/4 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | 3/8-24UNF |
SA212 | 60 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | M10x1.25 | |
SA212-38 | 60.325 | 23/8 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | 3/8-24UNF |
