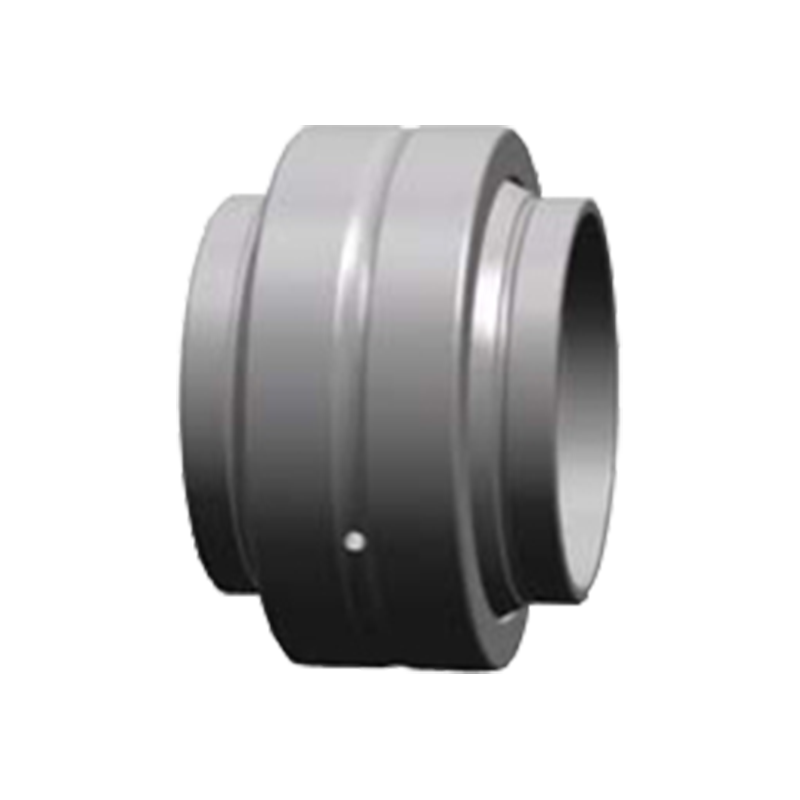

GE...HO-2RS series spherical sliding bearings are high-performance sliding bearings mainly used to bear radial and axial loads. This kind of bearing has a spherical inner ring and outer ring design, which can adapt to a certain angular deviation, thereby effectively reducing friction and wear caused by installation errors or equipment movement. This series of products is made of high-quality materials, has excellent wear resistance and corrosion resistance, and is suitable for working in harsh environments. In addition, the GE...HO-2RS bearing adopts a double-lip seal design inside, which can effectively prevent dust and liquid from intruding and extend the service life of the bearing. It is widely used in machinery manufacturing, engineering equipment, automobile and other industries to provide reliable support and motion solutions.
Product parameters

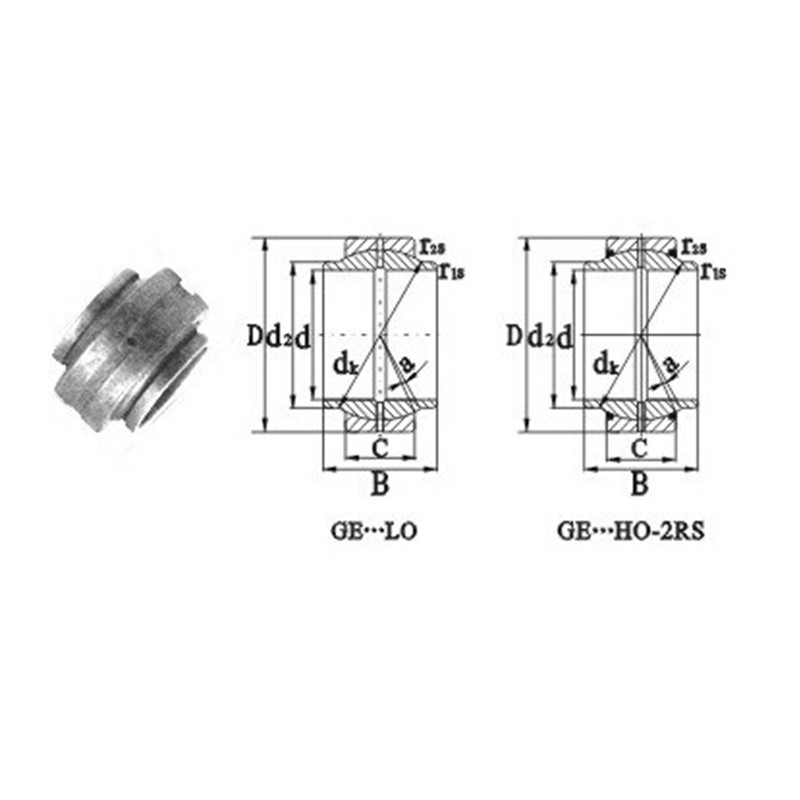

| Designation | Dimensions (mm) | α· ≈ | Load Ratings (KN) | Weight (kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | d2 min | D | B | C | dk | r1s min | r2s min | C | CO | |||
| GE20LO | 20 | 25 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 4 | 30 | 146 | 0.07 |
| GE25LO | 25 | 30 | 42 | 25 | 16 | 35.5 | 0.6 | 0.6 | 4 | 48 | 240 | 0.12 |
| GE32LO | 32 | 38 | 52 | 32 | 18 | 44 | 0.6 | 1 | 4 | 67 | 335 | 0.2 |
| GE40LO | 40 | 46 | 62 | 40 | 22 | 53 | 0.6 | 1 | 4 | 100 | 500 | 0.34 |
| GE50LO | 50 | 57 | 75 | 50 | 28 | 66 | 0.6 | 1 | 4 | 156 | 780 | 0.56 |
| GE63LO | 63 | 71.5 | 95 | 63 | 36 | 83 | 0.1 | 1 | 4 | 255 | 1270 | 1.2 |
| GE70LO | 70 | 79 | 105 | 70 | 40 | 92 | 1 | 1 | 4 | 315 | 1560 | 1.7 |
| GE8OLO | 80 | 91 | 120 | 80 | 45 | 105 | 1 | 1 | 4 | 400 | 2000 | 2.4 |
| GE20HO-2RS | 20 | 24 | 35 | 24 | 12 | 29 | 0.2 | 0.3 | 3 | 30 | 146 | 0.057 |
| GE25HO-2RS | 25 | 29 | 42 | 29 | 16 | 35.5 | 0.2 | 0.6 | 3 | 48 | 240 | 0.1 |
| GE30HO-2RS | 30 | 34.2 | 47 | 30 | 18 | 40.7 | 0.2 | 0.6 | 3 | 62 | 310 | 0.14 |
| GE35HO-2RS | 35 | 40 | 55 | 35 | 20 | 47 | 0.3 | 1 | 3 | 80 | 400 | 0.24 |
| GE40HO-2RS | 40 | 45 | 62 | 38 | 22 | 53 | 0.3 | 1 | 3 | 100 | 500 | 0.29 |
| GE45HO-2RS | 45 | 51.5 | 68 | 40 | 25 | 60 | 0.3 | 1 | 3 | 127 | 640 | 0.43 |
| GE50HO-2RS | 50 | 56.5 | 75 | 43 | 28 | 66 | 0.3 | 1 | 3 | 156 | 780 | 0.54 |
| GE60H0-2RS | 60 | 67.7 | 90 | 54 | 36 | 80 | 0.3 | 1 | 3 | 245 | 1220 | 1.1 |
| GE70HO-2RS | 70 | 78 | 105 | 65 | 40 | 92 | 0.3 | 1 | 3 | 315 | 1560 | 1.6 |
| GE80HO-2RS | 80 | 90 | 120 | 74 | 45 | 105 | 0.3 | 1 | 3 | 400 | 2000 | 2.4 |
