62 Series Metric Minature Ball Bearing
62 Series Metric Minature Ball Bearing
62 Series Metric Minature Ball Bearing

62 Series

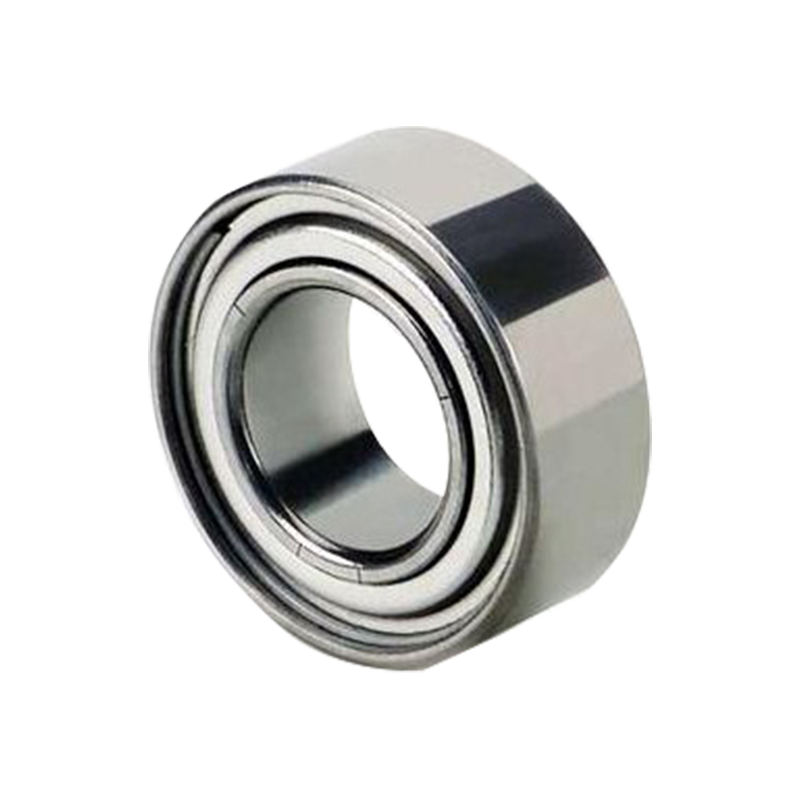

62 series metric miniature ball bearings are small precision bearings that are widely used in equipment that require high speed, low noise and low friction, such as micro motors, medical equipment, office equipment and industrial instruments. This type of bearing usually has a smaller outer diameter and is suitable for compact space design. It is a deep groove ball bearing in structure and can withstand radial and certain axial loads. The 62 series has good rotation accuracy and durability. The commonly used materials are high-quality steel or stainless steel. Sealed or open designs can be selected as needed to adapt to different working environments, extend service life and improve operating efficiency.

Send inquiry

Product parameters

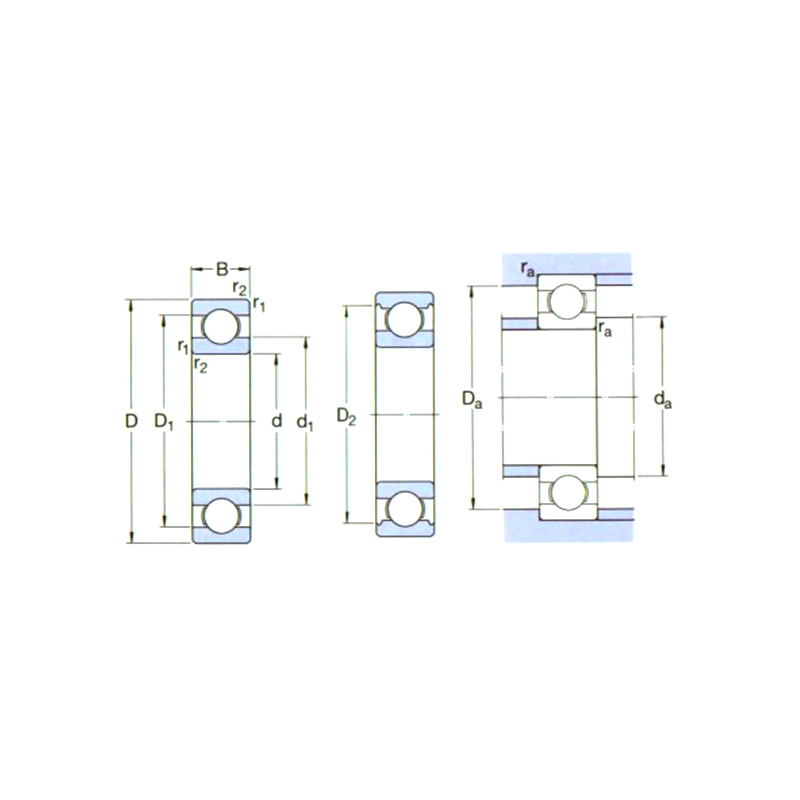

Designation Principal dimensions(mm) Basic load ratings(N) Basic load ratings{kgf} Speed ratings(rpm) Abutment and fillet dimensions (mm) Weight(g)
With shiled Open type With seal VV With seal DD d D B B1 r(min) Cr Cor Cr Cor Grease Oil da(min) db(max) Da(Max) Db(min) ra(max) rb(max) Open type With shiled
ZZ D·D Z
623 623ZZ - - 3 10 4 4 0.15 630 218 64 22 50000 - 60000 4.2 4.3 8.8 8 0.15 0.15 1.65 1.66
624 624ZZ - - 4 13 5 5 0.2 1300 485 133 49 40000 - 48000 5.6 6 11.4 11.3 0.2 0.2 3.03 3.04
625 625ZZ1 625VV 625DD 5 16 5 5 0.3 1730 670 177 68 36000 32000 43000 7 7.5 14 13.8 0.3 0.3 4.95 4.86
626 626ZZ1 626VV 626DD 6 19 6 6 0.3 2340 885 238 90 32000 30000 40000 8 8.5 17 16.5 0.3 0.3 8.15 7.94
627 627ZZ 627VV 627DD 7 22 7 7 0.3 3300 1370 335 140 30000 28000 36000 9 10.5 20 19 0.3 0.3 12.7 12.9
628 628ZZ 628VV 628DD 8 24 8 8 0.3 3350 1430 340 146 28000 24000 34000 10 12 22 20.5 0.3 0.3 17.2 17.4
629 629ZZ 629VV 629DD 9 26 8 8 -0.6 4550 1970 465 201 28000 22000 34000 11 12.8 24 22.8 0.3 0.3 19.5 19.3
