Custom UC200 Series Stainless Steel Insert Ball Bearings Manufacturers, Factory

UC200 Series

UC200 series insert bearing is a high-performance rolling bearing widely used in mechanical equipment. Its design features include ease of installation and maintenance, making it suitable for a variety of work environments. The UC200 series usually has an integrated housing structure that can withstand large radial loads and axial loads while providing good anti-fouling capabilities. High-quality steel is used inside the bearing to ensure high wear resistance and long service life. This series of insert bearings also comes in a variety of models and sizes to meet different application needs and is commonly used in agricultural machinery, conveying equipment and industrial machinery. In addition, UC200 series bearings are equipped with different types of sealing devices to prevent grease leakage and the intrusion of external contaminants, further improving their working stability and reliability.

Send inquiry

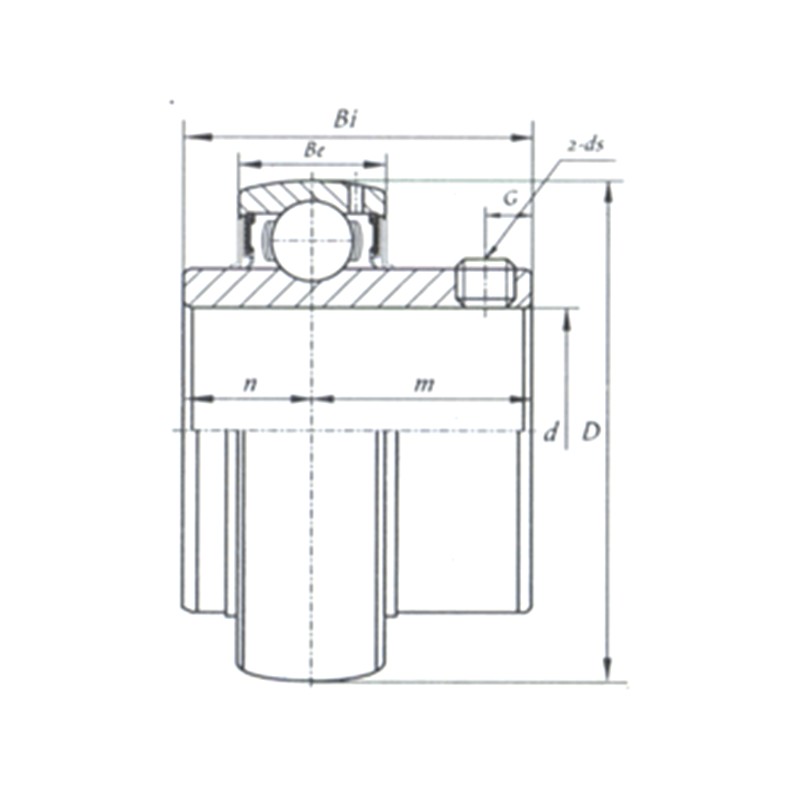

Bearing No.	d		Dimensions（mm）
Bearing No.	(mm)	(in.)	D	Bi	Be	n	m	G	ds
UCW201	12		40	27.4	14	11.5	15.9	4	M5x0.8
UCW202	15		40	27.4	14	11.5	15.9	4	M5x0.8
UCW203	17		40	27.4	14	11.5	15.9	4	M5x0.8
UC201	12		47	31	17	12.7	18.3	5	M6x1.0
UC201-8	12.7	0.5	47	31	17	12.7	18.3	5	1/4-28UNF
UC202	15		47	31	17	12.7	18.3	5	M6x1.0
UC202-10	15.875	0.625	47	31	17	12.7	18.3	5	1/4-28UNF
UC203	17		47	31	17	12.7	18.3	5	M6x1.0
UC203-11	17.463	0.6875	47	31	17	12.7	18.3	5	1/4-28UNF
UC204-12	19.05	0.75	47	31	17	12.7	18.3	5	1/4-28UNF
UC204	20		47	31	17	12.7	18.3	5	M6x1.0
UC205-14	22.225	0.875	52	34	17	14.3	19.7	5.5	1/4-28UNF
UC205-15	23.813	15/16	52	34	17	14.3	19.7	5.5	1/4-28UNF
UC205	25		52	34	17	14.3	19.7	5.5	M6x1.0
UC205-16	25.4	1	52	34	17	14.3	19.7	5.5	1/4-28UNF
UC206-18	28.575	1.125	62	38.1	19	15.9	22.2	5.5	1/4-28UNF
UC206	30		62	38.1	19	15.9	22.2	5.5	M6x1.0
UC206-19	30.163	1.1875	62	38.1	19	15.9	22.2	5.5	1/4-28UNF
UC206-20	31.75	1.25	62	38.1	19	15.9	22.2	5.5	1/4-28UNF
UC207-20	31.75	1.25	72	42.9	20	17.5	25.4	6.5	5/16-24UNF
UC207-21	33.338	1.3125	72	42.9	20	17.5	25.4	6.5	5/16-24UNF
UC207-22	34.925	1.375	72	42.9	20	17.5	25.4	6.5	5/16-24UNF
UC207	35		72	42.9	20	17.5	25.4	6.5	M8x1.0
UC207-23	36.513	1.4375	72	42.9	20	17.5	25.4	6.5	5/16-24UNF
UC208-24	38.1	1.5	80	49.2	21	19	30.2	8	5/16-24UNF
UC208-25	39.688	1.5625	80	49.2	21	19	30.2	8	5/16-24UNF
UC208	40		80	49.2	21	19	30.2	8	M8x1.0
UC209-26	41.275	1.625	85	49.2	22	19	30.2	8	5/16-24UNF
UC209-27	42.863	1.6875	85	49.2	22	19	30.2	8	5/16-24UNF
UC209-28	44.45	1.75	85	49.2	22	19	30.2	8	5/16-24UNF
UC209	45		85	49.2	22	19	30.2	8	M8x1.0
UC210-30	47.625	1.875	90	51.6	24	19	32.6	9.5	3/8-24UNF
UC210-31	49.213	1-15/16	90	51.6	24	19	32.6	9.5	3/8-24UNF
UC210	50		90	51.6	24	19	32.6	9.5	M10x1.25
UC210-32	50.8	2	90	51.6	24	19	32.6	9.5	3/8-24UNF
UC211-32	50.8	2	100	55.6	25	22.2	33.4	10	3/8-24UNF
UC211-34	53.975	2.125	100	55.6	25	22.2	33.4	10	3/8-24UNF
UC211	55		100	55.6	25	22.2	33.4	10	M10x1.25
UC211-35	55.563	2.1875	100	55.6	25	22.2	33.4	10	3/8-24UNF
UC212-36	57.15	2.25	110	65.1	27	25.4	39.7	10	3/8-24UNF
UC212	60		110	65.1	27	25.4	39.7	10	M10x1.25
UC212-38	60.325	2.375	110	65.1	27	25.4	39.7	10	3/8-24UNF
UC212-39	61.913	2.4375	110	65.1	27	25.4	39.7	10	3/8-24UNF
UC213-40	63.5	2.5	120	65.1	28	25.4	39.7	10	3/8-24UNF
UC213	65		120	65.1	28	25.4	39.7	10	M10x1.25
UC214-44	69.85	2.75	125	74.6	30	30.2	44.4	12	7/16-20UNF
UC214	70		125	74.6	30	30.2	44.4	12	M12x1.5
UC215-47	74.613	2.9375	130	77.8	30	33.3	44.5	12	7/16-20UNF
UC215	75		130	77.8	30	33.3	44.5	12	M12x1.5
UC215-48	76.2	3	130	77.8	30	33.3	44.5	12	7/16-20UNF
UC216-50	79.375	3.125	140	82.6	33	33.3	49.3	14	7/16-20UNF
UC216	80		140	82.6	33	33.3	49.3	14	M12x1.5
UC217-52	82.55	3.25	150	85.7	35	34.1	51.6	14	7/16-20UNF
UC217	85		150	85.7	35	34.1	51.6	14	M12x1.5
UC218-56	88.9	3.5	160	96	37	39.7	56.3	14	1/2-20UNF
UC218	90		160	96	37	39.7	56.3	14	M12x1.5

UC200 Series
