Custom W-S Series (Ball-ball Type) Automotive Water Pump Bearing Manufacturers, Factory

W-S Series (Ball-ball Type)

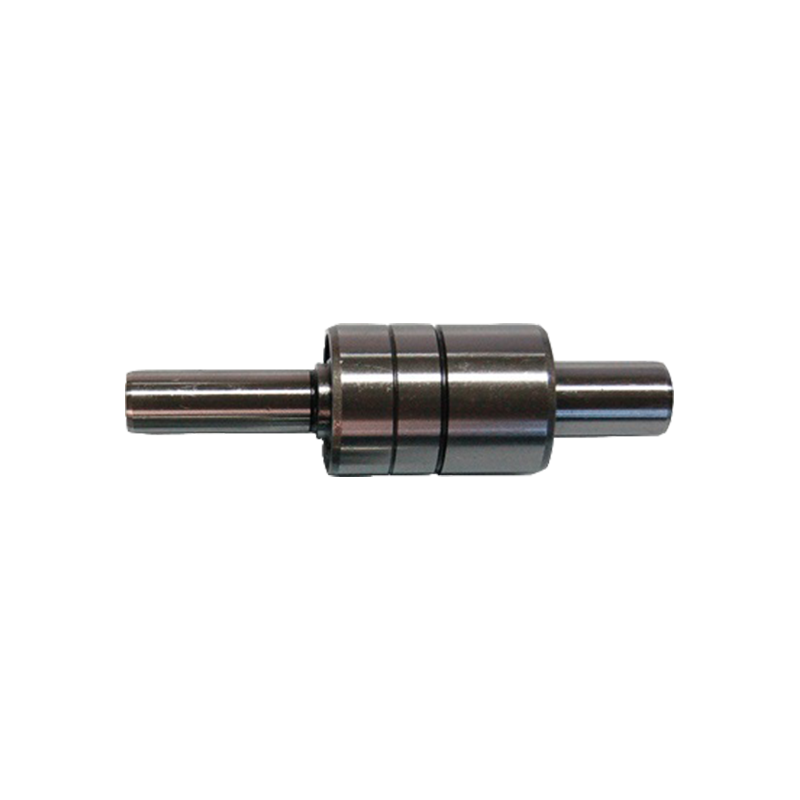

W-S Series (Ball-ball Type) Water Pump Bearing is a high-precision, high-durability water pump bearing made of high-quality chromium steel material with excellent wear resistance and corrosion resistance. This series of bearings has compact structure and good sealing performance, and is suitable for various rotating equipment such as automobiles and industrial water pumps. Its unique double-row deep groove ball design can effectively carry radial and axial loads and ensure stable operation of the water pump. In addition, W-S series bearings also come in a variety of specifications and models to meet the needs of different customers.

Send inquiry

Domestic models	NSK	FAG	Dimension (inch)
Domestic models	NSK	FAG	A	B	C	D	D2	S2
WIB163085	885122	W2334S	3.35	0.51	1.3	0.6267	0.474	1.18
WIB163088	-	W2346-1S	3.47	0.49	1.45	0.6267	0.4739	1.33
WIB163088A	-	W2346-2S	3.47	0.56	1.38	0.6267	0.4739	1.28
WIB163090	-	W2355S	3.55	0.61	1.41	0.6267	0.4739	1.33
WIB163092	-	W2364-5S	3.64	0.65	1.46	0.6267	0.4739	1.36
WIB163092A	885477	W2364S	3.64	0.99	1.12	0.6267	0.4739	1.02
WIB163093	-	W2366-1S	3.66	0.65	1.49	0.6267	0.4739	1.33
WIB163099	885474	W2387S	3.88	0.89	1.46	0.6267	0.4739	1.32
WIB1630100A	-	W2394S	3.95	0.84	1.58	0.6267	0.4739	1.44
WIB1630101	-	W2397S	3.98	0.98	1.46	0.6267	0.4739	1.36
WIB1630102A	885147	W2404S	4.04	0.88	1.63	0.6267	0.4739	1.5
WIB1630103	-	W2405-1S	4.05	0.65	1.87	0.6267	0.4739	1.69
WIB1630105C	BWF30-15-A-RR6	W2415-1S	4.15	0.93	1.7	0.6267	0.4739	1.56
WIB1630106	-	W2417S	4.17	1.18	1.46	0.6267	0.4739	1.32
WIB1630106A	-	W2418-3S	4.18	0.73	1.92	0.6267	0.4739	1.61
WIB1630107	-	W2420-1S	4.2	0.81	1.87	0.6267	0.4739	1.69
WIB1630109	-	W2431-2S	4.31	0.99	1.79	0.6267	0.4739	1.66
WIB1630115	-	W2453-1S	4.54	0.65	2.35	0.6267	0.4739	1.44
WIB1630124B	885326	W2488S	4.88	1.65	1.7	0.6267	0.4739	1.56
WIB1630102	-	W3399-2S	4	0.69	1.78	0.6275	0.4739	1.7
WIB1630850S	885122OS2	W6334S	3.35	1.3	0.51	0.629	0.4744	1.18
WIB163092OS	885477OS	W6364-1S	3.64	0.99	1.12	0.629	0.4744	1.08
WIB163099OS	885474OS2	W6387S	3.88	0.89	1.46	0.629	0.4744	1.33
WIB1630101OS	-	W6397-2S	3.98	0.95	1.5	0.629	0.4744	1.38
WIB1630101OS	-	W6397-3S	3.98	0.98	1.46	0.629	0.4744	1.36
WIB1630104OS	-	W6407-2S	4.08	0.77	1.77	0.629	0.4744	1.65
WIB1630105BOS	-	W6415-1S	4.15	0.93	1.7	0.629	0.4744	1.57
WIB1630106BOS	885439OS2	W6418S	4.18	0.99	1.66	0.629	0.4744	1.53
WIB1630112OS	885327OS2	W6440-5S	4.41	1.18	1.7	0.629	0.4744	1.56
WIB1630124OS	885326OS2	W6488S	4.88	1.65	1.7	0.629	0.4744	1.56
WIB1630102OS	-	W7399-2S	4	0.69	1.78	0.6295	0.4759	1.7
