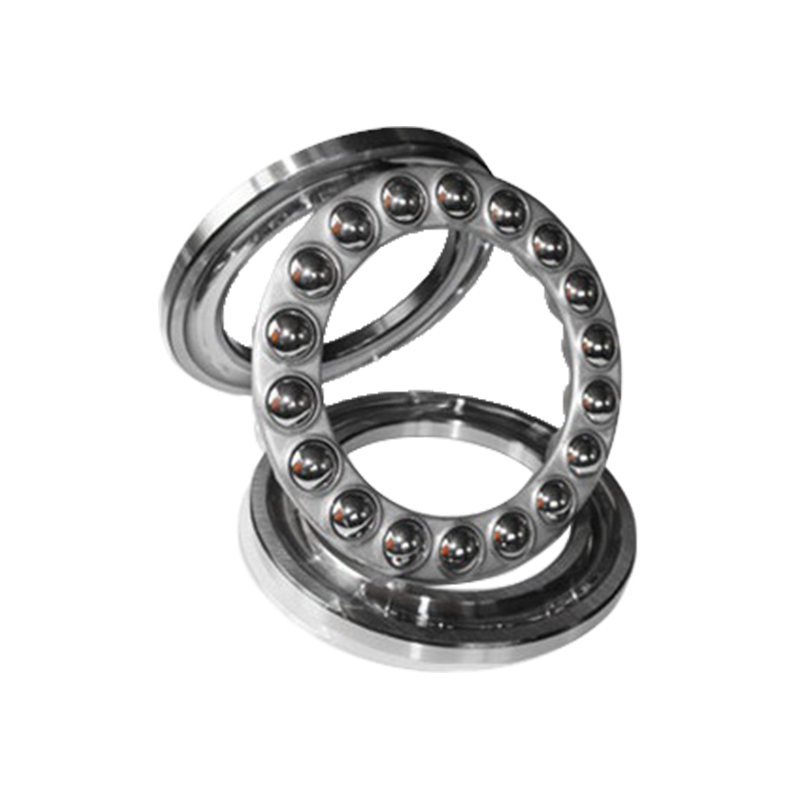

The 51100 series thrust ball bearing is a bearing specially designed to withstand axial loads and is widely used in machinery, automobiles, aviation and other fields. This series of bearings consists of an inner ring, an outer ring and a set of spheres. The design of the spheres enables smooth rotation under high loads. The 51100 series has excellent load-bearing capacity and wear resistance, and is suitable for operation under high-speed and low-noise conditions. This series of products is usually used in applications that require precise positioning and high reliability, such as motors, reducers and other rotating equipment. In addition, 51100 series thrust ball bearings are easy to install and maintain, and can be used with other types of bearings to meet different engineering needs.
Product parameters

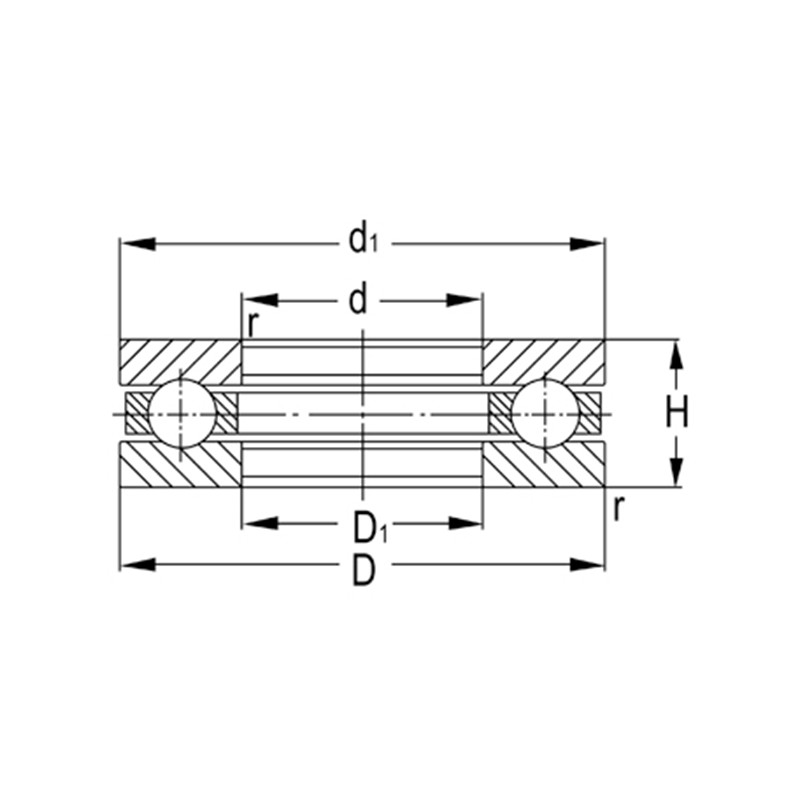

Designation | Principal Dimensions(mm) | Basic Load Ratings(KN) | Limited Speed(rpm) | Weight | ||||
d | D | T | Dynamic(Cr) | Static(Cor) | Grease | Oil | (kg) | |
51103 | 17 | 30 | 9 | 10.8 | 18.2 | 5300 | 7500 | 0.024 |
51104 | 20 | 35 | 10 | 14.2 | 24.5 | 4800 | 6700 | 0.036 |
51105 | 25 | 42 | 11 | 15.2 | 30.2 | 4300 | 6000 | 0.055 |
51106 | 30 | 47 | 11 | 16 | 34.2 | 4000 | 5600 | 0.062 |
51107 | 35 | 52 | 12 | 18.2 | 41.5 | 3800 | 5300 | 0.077 |
51108 | 40 | 60 | 13 | 26.8 | 62.8 | 3400 | 4800 | 0.11 |
51109 | 45 | 65 | 14 | 27 | 66 | 3200 | 4500 | 0.14 |
51110 | 50 | 70 | 14 | 27.2 | 69.2 | 3000 | 4300 | 0.15 |
51111 | 55 | 78 | 16 | 33.8 | 89.2 | 2800 | 4000 | 0.22 |
51112 | 60 | 85 | 17 | 40.2 | 108 | 2600 | 3800 | 0.27 |
51113 | 65 | 90 | 18 | 40.5 | 112 | 2400 | 3600 | 0.31 |
51114 | 70 | 95 | 18 | 40.8 | 115 | 2200 | 3400 | 0.33 |
51115 | 75 | 100 | 19 | 48.2 | 140 | 2000 | 3200 | 0.38 |
51116 | 80 | 105 | 19 | 48.5 | 145 | 1900 | 3000 | 0.4 |
