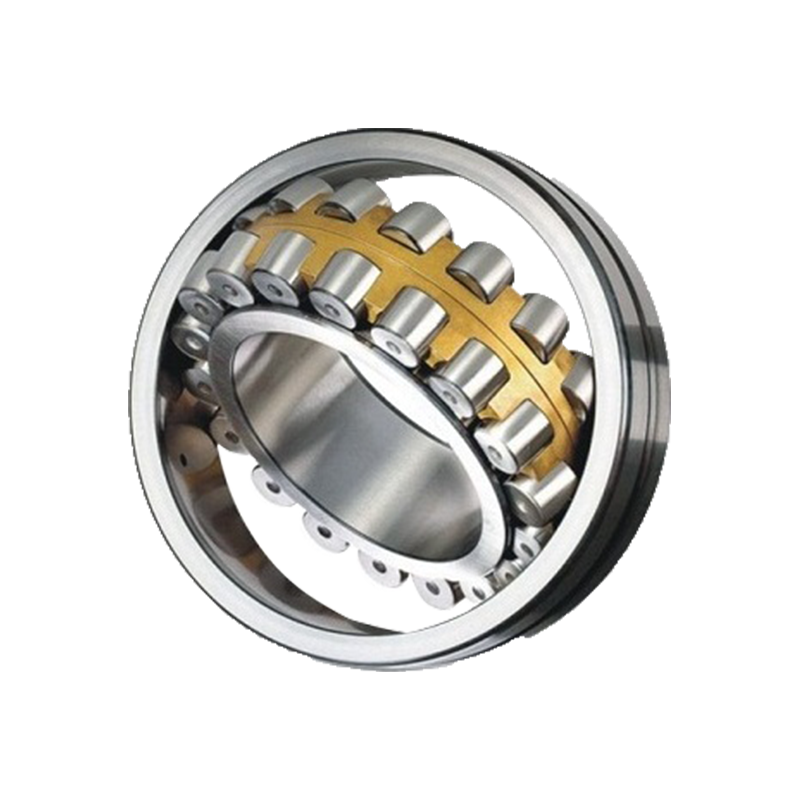

The 23900 series spherical roller bearing is a self-aligning bearing designed to withstand heavy loads and impact loads. It is especially suitable for use under conditions with large alignment errors. Its unique spherical roller structure enables the bearing to withstand radial and bidirectional axial loads at the same time, and has strong vibration and impact resistance. This series of bearings are usually made of high-quality steel and have the characteristics of wear resistance, fatigue resistance and high reliability. They are widely used in heavy industries such as metallurgy, mining, and machinery manufacturing. Its design helps maintain stable operation under harsh operating conditions, reducing maintenance requirements and extending equipment life.
Product parameters

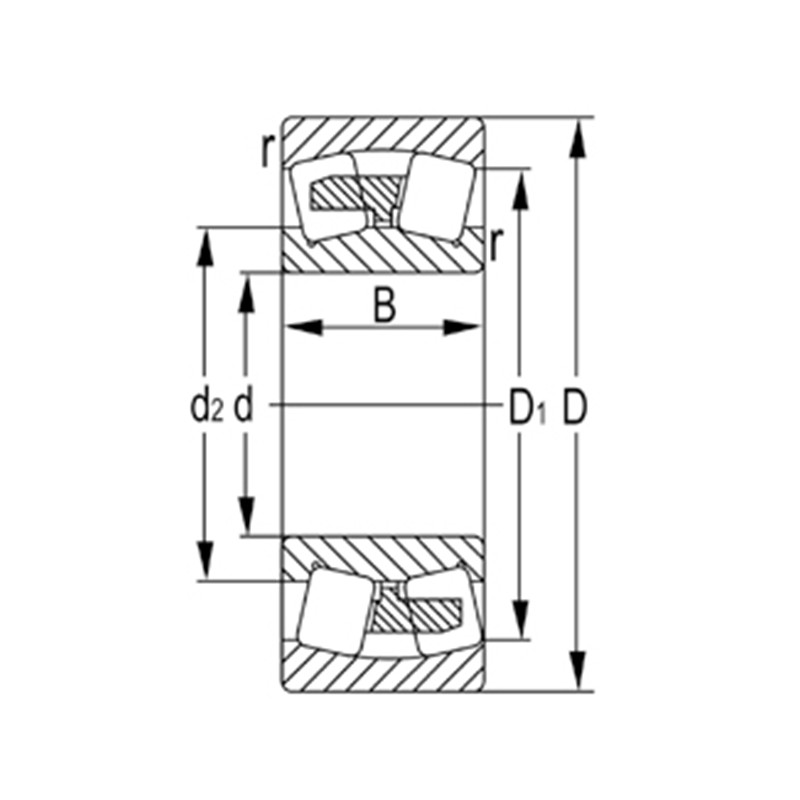

Designation | Principal Dimensions(mm) | Basic Load Ratings(KN) | Limited Speed(rpm) | Weight | |||||
---|---|---|---|---|---|---|---|---|---|
d | D | B | rs min | Dynamic(Cr) | Static(Cor) | Grease | Oil | (kg) | |
23936 | 180 | 250 | 52 | 2 | 440 | 835 | 1200 | 1800 | 8.21 |
23936K | 180 | 250 | 52 | 2 | 440 | 835 | 1200 | 1800 | 7.95 |
23936KW33C3 | 180 | 250 | 52 | 2 | 440 | 835 | 1200 | 1800 | 7.95 |
23936W33C3 | 180 | 250 | 52 | 2 | 440 | 835 | 1200 | 1800 | 8.21 |
23938 | 190 | 260 | 52 | 2 | 460 | 890 | 1100 | 1700 | 8.6 |
23938K | 190 | 260 | 52 | 2 | 460 | 890 | 1100 | 1700 | 8.34 |
23938KW33C3 | 190 | 260 | 52 | 2 | 460 | 890 | 1100 | 1700 | 8.34 |
23938W33C3 | 190 | 260 | 52 | 2 | 460 | 890 | 1100 | 1700 | 8.6 |
23940 | 200 | 280 | 60 | 2.1 | 545 | 1100 | 1000 | 1600 | 12.1 |
23940K | 200 | 280 | 60 | 2.1 | 545 | 1100 | 1000 | 1600 | 11.7 |
23940KW33C3 | 200 | 280 | 60 | 2.1 | 545 | 1100 | 1000 | 1600 | 11.7 |
23940W33C3 | 200 | 280 | 60 | 2.1 | 545 | 1100 | 1000 | 1600 | 12.1 |
23944 | 220 | 300 | 60 | 2.1 | 565 | 1170 | 930 | 1400 | 13.1 |
23944K | 220 | 300 | 60 | 2.1 | 565 | 1170 | 930 | 1400 | 12.7 |
23944KW33C3 | 220 | 300 | 60 | 2.1 | 565 | 1170 | 930 | 1400 | 12.7 |
23944W33C3 | 220 | 300 | 60 | 2.1 | 565 | 1170 | 930 | 1400 | 13.1 |
23948 | 240 | 320 | 60 | 2.1 | 565 | 1190 | 840 | 1300 | 14 |
23948K | 240 | 320 | 60 | 2.1 | 565 | 1190 | 840 | 1300 | 13.6 |
23948KW33C3 | 240 | 320 | 60 | 2.1 | 565 | 1190 | 840 | 1300 | 13.6 |
23948W33C3 | 240 | 320 | 60 | 2.1 | 565 | 1190 | 840 | 1300 | 14 |
23952 | 260 | 360 | 75 | 2.1 | 760 | 1580 | 770 | 1200 | 24 |
23952K | 260 | 360 | 75 | 2.1 | 760 | 1580 | 770 | 1200 | 23.3 |
23952KW33C3 | 260 | 360 | 75 | 2.1 | 760 | 1580 | 770 | 1200 | 23.3 |
23952W33C3 | 260 | 360 | 75 | 2.1 | 760 | 1580 | 770 | 1200 | 24 |
23956 | 280 | 380 | 75 | 2.1 | 830 | 1750 | 710 | 1100 | 26.4 |
23956K | 280 | 380 | 75 | 2.1 | 830 | 1750 | 710 | 1100 | 25.6 |
23956KW33C3 | 280 | 380 | 75 | 2.1 | 830 | 1750 | 710 | 1100 | 25.6 |
23956W33C3 | 280 | 380 | 75 | 2.1 | 830 | 1750 | 710 | 1100 | 26.4 |
23960 | 300 | 420 | 90 | 3 | 1110 | 2320 | 650 | 1000 | 40 |
23960K | 300 | 420 | 90 | 3 | 1110 | 2320 | 650 | 1000 | 38.7 |
23960KW33C3 | 300 | 420 | 90 | 3 | 1110 | 2320 | 650 | 1000 | 38.7 |
23960W33C3 | 300 | 420 | 90 | 3 | 1110 | 2320 | 650 | 1000 | 40 |
