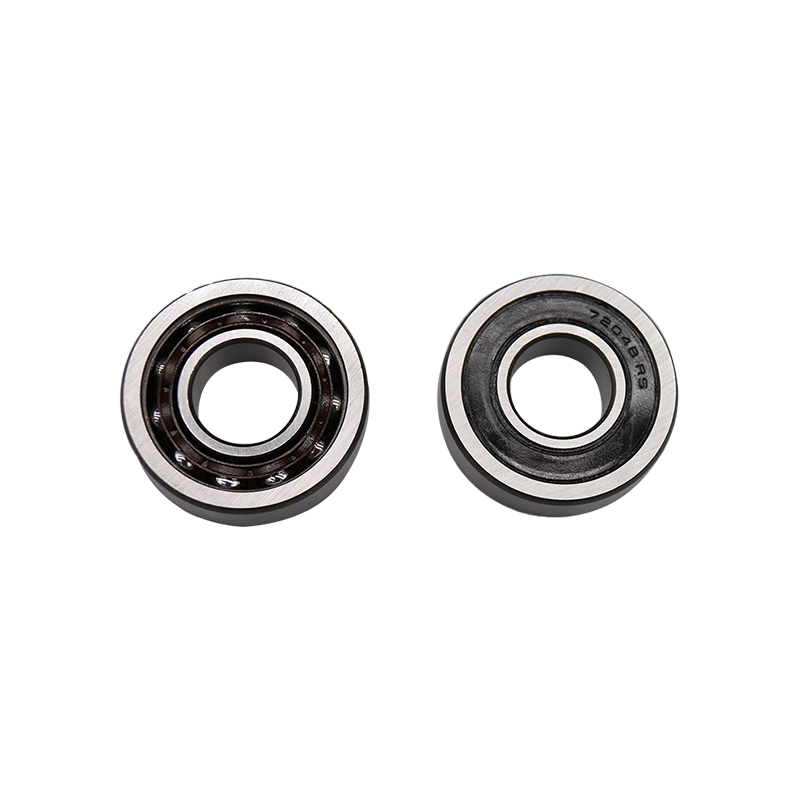

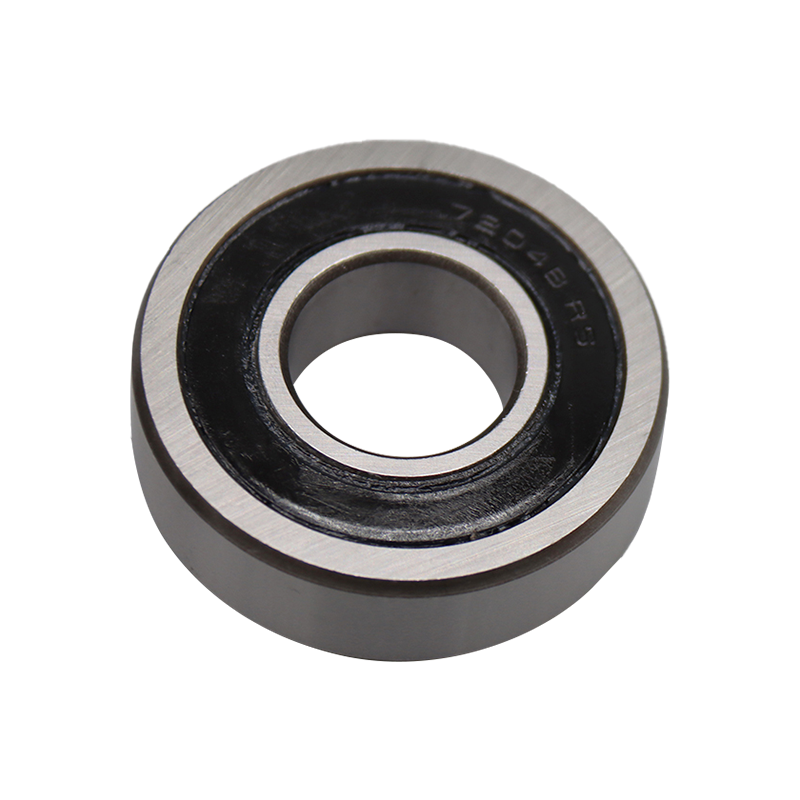

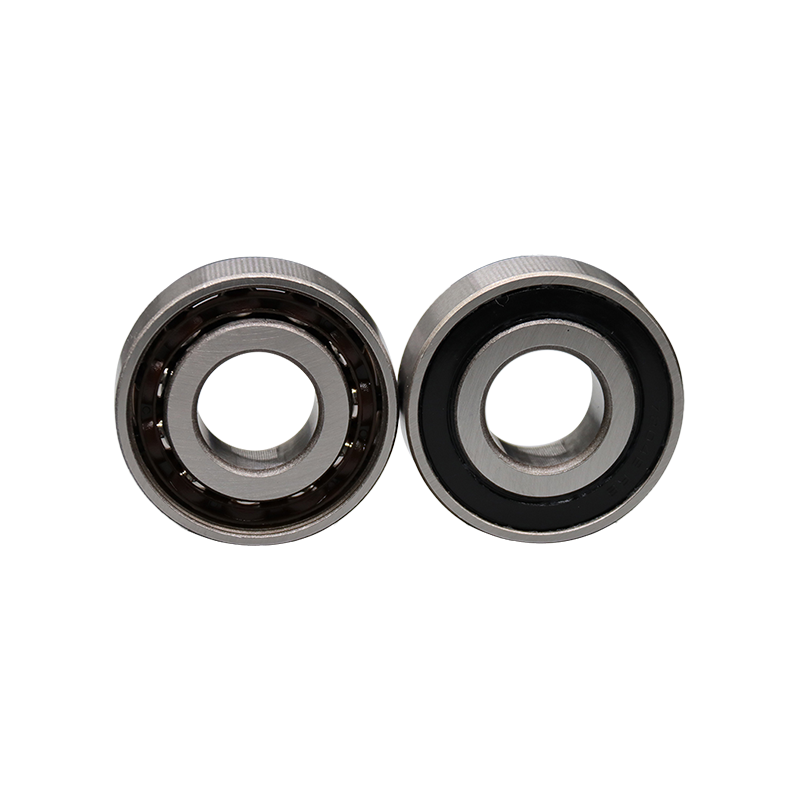

7200 Series Single Row Angular Contact Ball Bearings
7200 Series Single Row Angular Contact Ball Bearings
7200 Series Single Row Angular Contact Ball Bearings
7200 Series Single Row Angular Contact Ball Bearings
7200 Series Single Row Angular Contact Ball Bearings
7200 Series Single Row Angular Contact Ball Bearings
7200 Series Single Row Angular Contact Ball Bearings

7200 Series

The 7200 series single row angular contact ball bearing is a high-precision, high-stiffness rolling bearing that is widely used in machine tools, automation equipment, aerospace and other fields. This kind of bearing adopts a single-row design and can withstand radial and axial loads. It is especially suitable for occasions that require high speed and high precision. Its internal structure design is optimized to effectively reduce friction and temperature rise, thereby improving work efficiency and service life. In addition, 7200 series bearings are usually made of high-quality materials, have good wear resistance and fatigue resistance, and are suitable for various working environments. In order to meet the needs of different working conditions, the 7200 series also provides a variety of configuration and size options to facilitate use with other mechanical components.

Send inquiry

Product parameters

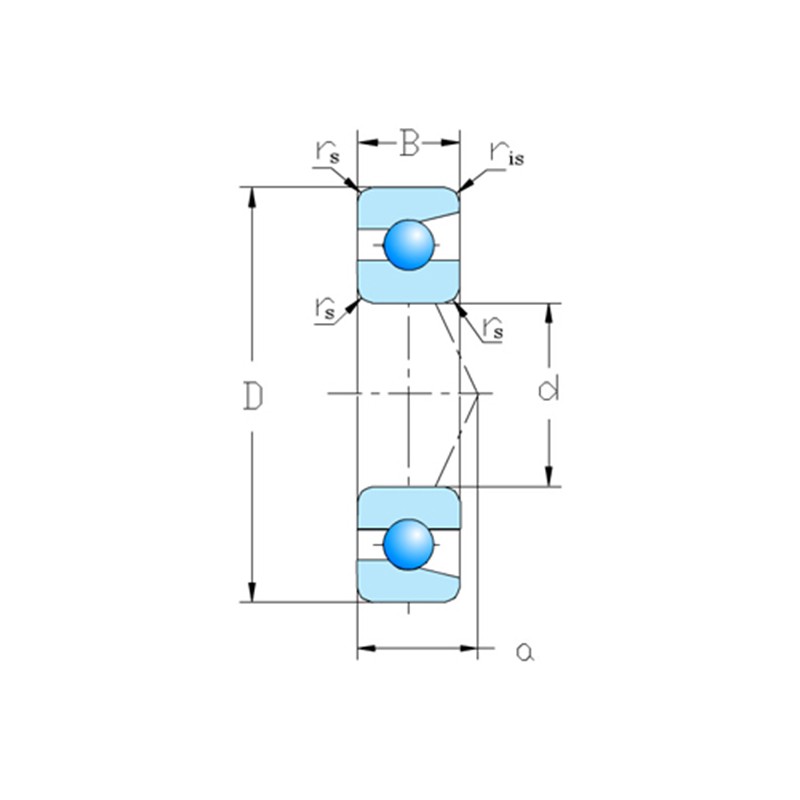

Bearing Numbers Principal dimensions(mm) Basic load ratings(N) Basic load ratings(kgf) Value Limiting Speed (rpm) Distance of action point(mm) Abutment and fillet dimensions Weight Basic load ratings(duplex bearing) (N) Basic load ratings(duplex bearing) (kgf) Limiting Speed(duplex bearing) (rpm) Distance of action point (duplex bearing)(a0) Installation dimensions(duplex bearing)
Single row DB DF DT d D B r(min) r1(min) Cr Cor Cr Cor fo Grease Oil a da(min) Da(max) ra(max) (kg) Cr Cor Cr Cor Grease Oil back-to-back arrangement face-to-face arrangement db(min) Db(max) rb(max)
7200A 7200DB 7200DF 7200DT 10 30 9 0.6 0.3 5400 2710 555 276 13.8 28000 38000 10.3 15 25 0.6 0.032 8800 5400 900 555 22000 30000 20.5 2.5 12.5 27.5 0.3
7200B 7200DB 7200DF 7200DT 10 30 9 0.6 0.3 5000 2500 510 255 14.4 20000 28000 12.9 15 25 0.6 0.032 8100 5000 825 510 16000 22000 25.8 7.8 12.5 27.5 0.3
7200C 7200DB 7200DF 7200DT 10 30 9 0.6 0.3 5400 2610 550 266 13.2 40000 56000 7.2 15 25 0.6 0.036 8800 5200 895 530 32000 45000 14.4 3.6 - 27.5 0.3
7201A 7201DB 7201DF 7201DT 12 32 10 0.6 0.3 8000 4050 815 410 13.1 26000 34000 11.4 17 27 0.6 0.037 13000 8050 1330 820 20000 28000 22.7 2.7 14.5 29.5 0.3
7201B 7201DB 7201DF 7201DT 12 32 10 0.6 0.3 7450 3750 760 380 13.8 18000 26000 14.2 17 27 0.6 0.038 12100 7500 1230 765 15000 20000 28.5 8.5 14.5 29.5 0.3
7201C 7201DB 7201DF 7201DT 12 32 10 0.6 0.3 7900 3850 805 395 12.5 36000 50000 7.9 17 27 0.6 0.041 12800 7700 1310 785 30000 40000 15.9 4.1 - 29.5 0.3
7202A 7202DB 7202DF 7202DT 15 35 11 0.6 0.3 8650 4650 880 475 13.8 22000 30000 12.7 20 30 0.6 0.045 14000 9300 1430 950 18000 24000 25.4 3.4 17.5 32.5 0.3
7202B 7202DB 7202DF 7202DT 15 35 11 0.6 0.3 7950 4300 810 440 14.4 16000 22000 16 20 30 0.6 0.046 12900 8600 1310 875 13000 18000 32 10 17.5 32.5 0.3
7202C 7202DB 7202DF 7202DT 15 35 11 0.6 0.3 8650 4550 885 460 13.2 32000 45000 8.8 20 30 0.6 0.052 14100 9050 1440 925 26000 36000 17.7 4.3 - 32.5 0.3
7203A 7203DB 7203DF 7203DT 17 40 12 0.6 0.3 10800 6000 1100 610 13.8 20000 28000 14.2 22 35 0.6 0.067 17600 12000 1790 1220 16000 22000 28.5 4.5 19.5 37.5 0.3
7203B 7203DB 7203DF 7203DT 17 40 12 0.6 0.3 9950 5500 1010 565 14.4 14000 19000 18 22 35 0.6 0.068 16100 11000 1650 1130 11000 15000 35.9 11.9 19.5 37.6 0.3
7203C 7203DB 7203DF 7203DT 17 40 12 0.6 0.3 10900 5850 1110 595 13.2 28000 38000 9.8 22 35 0.6 0.075 17600 11700 1800 1190 22000 32000 19.6 4.4 - 37.5 0.3
7204A 7204DB 7204DF 7204DT 20 47 14 1 0.6 14500 8300 1480 845 13.8 17000 22000 16.7 26 41 1 0.106 23500 16600 2400 1690 13000 19000 33.3 5.3 25 42 0.6
7204B 7204DB 7204DF 7204DT 20 47 14 1 0.6 13300 7650 1360 780 14.4 12000 16000 21.1 26 41 1 0.109 21600 15300 2210 1560 9500 13000 42.1 14.1 25 42 0.6
7204C 7204DB 7204DF 7204DT 20 47 14 1 0.6 14600 8050 1480 825 13.2 24000 34000 11.5 26 41 1 0.118 23600 16100 2410 1650 19000 26000 23 5 - 42 0.6
7205A 7205DB 7205DF 7205DT 25 52 15 1 0.6 16200 10300 1650 1050 14.4 15000 20000 18.6 31 46 1 0.13 26300 20500 2690 2090 12000 16000 37.2 7.2 30 47 0.6
7205B 7205DB 7205DF 7205DT 25 52 15 1 0.6 14800 9400 1510 960 15 10000 14000 23.7 31 46 1 0.133 24000 18800 2450 1920 8500 11000 47.3 17.3 30 47 0.6
7205C 7205DB 7205DF 7205DT 25 52 15 1 0.6 16600 10200 1690 1040 14 22000 28000 12.7 31 46 1 0.143 27000 20400 2750 2080 17000 24000 25.3 4.7 - 47 0.6
7206A 7206DB 7206DF 7206DT 30 62 16 1 0.6 22500 14800 2300 1510 14.4 12000 17000 21.3 36 56 1 0.197 36500 29500 3750 3000 10000 13000 42.6 10.6 35 57 0.6
7206B 7206DB 7206DF 7206DT 30 62 16 1 0.6 20500 13500 2090 1380 14.9 8500 12000 27.3 36 56 1 0.202 33500 27000 3400 2760 7100 9500 54.6 22.6 35 57 0.6
7206C 7206DB 7206DF 7206DT 30 62 16 1 0.6 23000 14700 2350 1500 14 18000 24000 14.2 36 56 1 0.222 37500 29300 3800 2990 14000 20000 28.3 3.7 - 57 0.6
7207A 7207DB 7207DF 7207DT 35 72 17 1.1 0.6 29700 20100 3050 2050 14.7 10000 14000 23.9 42 65 1 0.287 48500 40000 4900 4100 8500 12000 47.9 13.9 40 67 0.6
7207B 7207DB 7207DF 7207DT 35 72 17 1.1 0.6 27100 18400 2760 1870 14.9 7500 10000 30.9 42 65 1 0.294 44000 36500 4500 3750 6000 8000 61.9 27.9 40 67 0.6
7207C 7207DB 7207DF 7207DT 35 72 17 1.1 0.6 30500 19900 3100 2030 14 15000 20000 15.7 42 65 1 0.32 49500 40000 5050 4050 12000 17000 31.3 2.7 - 67 0.6
7204A 7204DB 7204DF 7204DT 20 47 14 1 0.6 14500 8300 1480 845 13.8 17000 22000 16.7 26 41 1 0.106 23500 16600 2400 1690 13000 19000 33.3 5.3 25 42 0.6
7204B 7204DB 7204DF 7204DT 20 47 14 1 0.6 13300 7650 1360 780 14.4 12000 16000 21.1 26 41 1 0.109 21600 15300 2210 1560 9500 13000 42.1 14.1 25 42 0.6
7204C 7204DB 7204DF 7204DT 20 47 14 1 0.6 14600 8050 1480 825 13.2 24000 34000 11.5 26 41 1 0.118 23600 16100 2410 1650 19000 26000 23 5 - 42 0.6
7205A 7205DB 7205DF 7205DT 25 52 15 1 0.6 16200 10300 1650 1050 14.4 15000 20000 18.6 31 46 1 0.13 26300 20500 2690 2090 12000 16000 37.2 7.2 30 47 0.6
7205B 7205DB 7205DF 7205DT 25 52 15 1 0.6 14800 9400 1510 960 15 10000 14000 23.7 31 46 1 0.133 24000 18800 2450 1920 8500 11000 47.3 17.3 30 47 0.6
7205C 7205DB 7205DF 7205DT 25 52 15 1 0.6 16600 10200 1690 1040 14 22000 28000 12.7 31 46 1 0.143 27000 20400 2750 2080 17000 24000 25.3 4.7 - 47 0.6
7206A 7206DB 7206DF 7206DT 30 62 16 1 0.6 22500 14800 2300 1510 14.4 12000 17000 21.3 36 56 1 0.197 36500 29500 3750 3000 10000 13000 42.6 10.6 35 57 0.6
7206B 7206DB 7206DF 7206DT 30 62 16 1 0.6 20500 13500 2090 1380 14.9 8500 12000 27.3 36 56 1 0.202 33500 27000 3400 2760 7100 9500 54.6 22.6 35 57 0.6
7206C 7206DB 7206DF 7206DT 30 62 16 1 0.6 23000 14700 2350 1500 14 18000 24000 14.2 36 56 1 0.222 37500 29300 3800 2990 14000 20000 28.3 3.7 - 57 0.6
7207A 7207DB 7207DF 7207DT 35 72 17 1.1 0.6 29700 20100 3050 2050 14.7 10000 14000 23.9 42 65 1 0.287 48500 40000 4900 4100 8500 12000 47.9 13.9 40 67 0.6
7207B 7207DB 7207DF 7207DT 35 72 17 1.1 0.6 27100 18400 2760 1870 14.9 7500 10000 30.9 42 65 1 0.294 44000 36500 4500 3750 6000 8000 61.9 27.9 40 67 0.6
7207C 7207DB 7207DF 7207DT 35 72 17 1.1 0.6 30500 19900 3100 2030 14 15000 20000 15.7 42 65 1 0.32 49500 40000 5050 4050 12000 17000 31.3 2.7 - 67 0.6
7208A 7208DB 7208DF 7208DT 40 80 18 1.1 0.6 35500 25100 3600 2560 14.6 9500 13000 26.3 47 73 1 0.375 57500 50500 5850 5150 7500 10000 52.6 16.6 45 75 0.6
7208B 7208DB 7208DF 7208DT 40 80 18 1.1 0.6 32000 23000 3250 2340 15.1 6700 9000 34.2 47 73 1 0.383 52000 46000 5300 4700 5300 7500 68.3 32.3 45 75 0.6
7208C 7208DB 7208DF 7208DT 40 80 18 1.1 0.6 36500 25200 3700 2570 14.2 14000 19000 17 47 73 1 0.418 59000 50500 6000 5150 11000 15000 34.1 1.9 - 75 0.6
7209A 7209DB 7209DF 7209DT 45 85 19 1.1 0.6 39500 28700 4050 2930 14.7 8500 12000 28.3 52 78 1 0.411 64500 57500 6550 5850 7100 9500 56.5 18.5 50 80 0.6
7209B 7209DB 7209DF 7209DT 45 85 19 1.1 0.6 36000 26200 3650 2680 15.4 6300 8500 36.8 52 78 1 0.421 58500 52500 5950 5350 5000 6700 73.5 35.5 50 80 0.6
7209C 7209DB 7209DF 7209DT 45 85 19 1.1 0.6 41000 28800 4150 2940 14.2 12000 17000 18.2 52 78 1 0.468 66500 57500 6750 5850 10000 14000 36.4 1.6 - 80 0.6
7210A 7210DB 7210DF 7210DT 50 90 20 1.1 0.6 41500 31500 4200 3200 15 8000 11000 30.2 57 83 1 0.466 67000 63000 6850 6400 6300 9000 60.4 20.4 55 85 0.6
7210B 7210DB 7210DF 7210DT 50 90 20 1.1 0.6 37500 28600 3800 2920 15.4 5600 8000 39.4 57 83 1 0.477 60500 57000 6200 5850 4500 6300 78.7 38.7 55 85 0.6
7210C 7210DB 7210DF 7210DT 50 90 20 1.1 0.6 43000 31500 4350 3250 14.5 12000 16000 19.4 57 83 1 0.528 69500 63500 7100 6450 9500 13000 38.7 1.3 - 85 0.6
7211A 7211DB 7211DF 7211DT 55 100 21 1.5 1 51000 39500 5200 4050 15.2 7100 10000 32.9 64 91 1.5 0.613 83000 79000 8450 8050 6000 8000 65.7 23.7 61 94 1
7211B 7211DB 7211DF 7211DT 55 100 21 1.5 1 46500 36000 4700 3700 15.4 5300 7100 43 64 91 1.5 0.627 75000 72000 7650 7350 4000 5600 86 44 61 94 1
7211C 7211DB 7211DF 7211DT 55 100 21 1.5 1 53000 40000 5400 4100 14.5 10000 14000 20.9 64 91 1.5 0.688 86000 80000 8800 8150 8500 12000 41.7 0.3 - 94 1
7212A 7212DB 7212DF 7212DT 60 110 22 1.5 1 62000 48500 6300 4950 14.9 6700 9000 35.5 69 101 1.5 0.798 100000 97500 10200 9950 5300 7100 71.1 27.1 66 104 1
7212B 7212DB 7212DF 7212DT 60 110 22 1.5 1 56000 44500 5700 4550 15.3 4800 6300 46.7 69 101 1.5 0.815 91000 89000 9300 9050 3800 5300 93.3 49.3 66 104 1
7212C 7212DB 7212DF 7212DT 60 110 22 1.5 1 64000 49000 6550 5000 14.4 9500 13000 22.4 69 101 1.5 0.889 104000 98500 10600 10000 7500 11000 44.8 0.8 - 104 1
7213A 7213DB 7213DF 7213DT 65 120 23 1.5 1 70500 58000 7150 5900 15 6000 8500 38.2 74 111 1.5 1.03 114000 116000 11600 11800 4800 6700 76.4 30.4 71 114 1
7213B 7213DB 7213DF 7213DT 65 120 23 1.5 1 63500 52500 6500 5350 15.4 4300 6000 50.3 74 111 1.5 1.05 103000 105000 10500 10700 3400 4800 100.6 54.6 71 114 1
7213C 7213DB 7213DF 7213DT 65 120 23 1.5 1 73000 58500 7450 6000 14.6 9000 12000 23.9 74 111 1.5 1.14 119000 117000 12100 12000 7100 9500 47.8 1.8 - 114 1
7214A 7214DB 7214DF 7214DT 70 125 24 1.5 1 76500 63500 7800 6500 15 5600 8000 40.1 79 116 1.5 1.11 124000 127000 12600 13000 4500 6300 80.3 32.3 76 119 1
7214B 7214DB 7214DF 7214DT 70 125 24 1.5 1 69000 58000 7050 5900 15.5 4000 5600 52.9 79 116 1.5 1.14 112000 116000 11500 11800 3200 4500 105.8 57.8 76 119 1
7214C 7214DB 7214DF 7214DT 70 125 24 1.5 1 79500 64500 8100 6600 14.6 8500 11000 25.1 79 116 1.5 1.24 129000 129000 13200 13200 6700 9000 50.1 2.1 - 119 1
7215A 7215DB 7215DF 7215DT 75 130 25 1.5 1 76000 64500 7750 6550 15.2 5600 7500 42.1 84 121 1.5 1.19 123000 129000 12600 13100 4300 6000 84.2 34.2 81 124 1
7215B 7215DB 7215DF 7215DT 75 130 25 1.5 1 68500 58500 7000 5950 15.6 3800 5300 55.5 84 121 1.5 1.22 112000 117000 11400 11900 3200 4300 111 61 81 124 1
7215C 7215DB 7215DF 7215DT 75 130 25 1.5 1 83000 70000 8450 7100 14.8 8000 11000 26.2 84 121 1.5 1.36 134000 140000 13700 14200 6300 9000 52.4 2.4 - 124 1
7212A 7212DB 7212DF 7212DT 60 110 22 1.5 1 62000 48500 6300 4950 14.9 6700 9000 35.5 69 101 1.5 0.798 100000 97500 10200 9950 5300 7100 71.1 27.1 66 104 1
7212B 7212DB 7212DF 7212DT 60 110 22 1.5 1 56000 44500 5700 4550 15.3 4800 6300 46.7 69 101 1.5 0.815 91000 89000 9300 9050 3800 5300 93.3 49.3 66 104 1
7212C 7212DB 7212DF 7212DT 60 110 22 1.5 1 64000 49000 6550 5000 14.4 9500 13000 22.4 69 101 1.5 0.889 104000 98500 10600 10000 7500 11000 44.8 0.8 - 104 1
7213A 7213DB 7213DF 7213DT 65 120 23 1.5 1 70500 58000 7150 5900 15 6000 8500 38.2 74 111 1.5 1.03 114000 116000 11600 11800 4800 6700 76.4 30.4 71 114 1
7213B 7213DB 7213DF 7213DT 65 120 23 1.5 1 63500 52500 6500 5350 15.4 4300 6000 50.3 74 111 1.5 1.05 103000 105000 10500 10700 3400 4800 100.6 54.6 71 114 1
7213C 7213DB 7213DF 7213DT 65 120 23 1.5 1 73000 58500 7450 6000 14.6 9000 12000 23.9 74 111 1.5 1.14 119000 117000 12100 12000 7100 9500 47.8 1.8 - 114 1
7214A 7214DB 7214DF 7214DT 70 125 24 1.5 1 76500 63500 7800 6500 15 5600 8000 40.1 79 116 1.5 1.11 124000 127000 12600 13000 4500 6300 80.3 32.3 76 119 1
7214B 7214DB 7214DF 7214DT 70 125 24 1.5 1 69000 58000 7050 5900 15.5 4000 5600 52.9 79 116 1.5 1.14 112000 116000 11500 11800 3200 4500 105.8 57.8 76 119 1
7214C 7214DB 7214DF 7214DT 70 125 24 1.5 1 79500 64500 8100 6600 14.6 8500 11000 25.1 79 116 1.5 1.24 129000 129000 13200 13200 6700 9000 50.1 2.1 - 119 1
7215A 7215DB 7215DF 7215DT 75 130 25 1.5 1 76000 64500 7750 6550 15.2 5600 7500 42.1 84 121 1.5 1.19 123000 129000 12600 13100 4300 6000 84.2 34.2 81 124 1
7215B 7215DB 7215DF 7215DT 75 130 25 1.5 1 68500 58500 7000 5950 15.6 3800 5300 55.5 84 121 1.5 1.22 112000 117000 11400 11900 3200 4300 111 61 81 124 1
7215C 7215DB 7215DF 7215DT 75 130 25 1.5 1 83000 70000 8450 7100 14.8 8000 11000 26.2 84 121 1.5 1.36 134000 140000 13700 14200 6300 9000 52.4 2.4 - 124 1
7216A 7216DB 7216DF 7216DT 80 140 26 2 1 89000 76000 9100 7750 15.4 5000 7100 44.8 90 130 2 1.46 145000 152000 14700 15600 4000 5600 89.5 37.5 86 134 1
7216B 7216DB 7216DF 7216DT 80 140 26 2 1 80500 69500 8200 7050 15.5 3600 5000 59.1 90 130 2 1.49 131000 139000 13300 14100 2800 4000 118.3 66.3 86 134 1
7216C 7216DB 7216DF 7216DT 80 140 26 2 1 93000 77500 9450 7900 14.8 7500 10000 27.7 90 130 2 1.64 151000 155000 15400 15800 6000 8000 55.5 3.5 - 134 1
7217A 7217DB 7217DF 7217DT 85 150 28 2 1 103000 89000 10500 9100 15.1 4800 6700 47.9 95 140 2 1.83 167000 178000 17100 18200 3800 5300 95.8 39.8 91 144 1
7217B 7217DB 7217DF 7217DT 85 150 28 2 1 93000 81000 9500 8250 15.5 3400 4800 63.3 95 140 2 1.87 151000 162000 15400 16500 2800 3800 126.6 70.6 91 144 1
7217C 7217DB 7217DF 7217DT 85 150 28 2 1 107000 90500 10900 9250 14.9 6700 9500 29.7 95 140 2 2.04 174000 181000 17800 18500 5600 7500 59.5 3.5 - 144 1
7218A 7218DB 7218DF 7218DT 90 160 30 2 1 118000 103000 12000 10500 15.1 4500 6000 51.1 100 150 2 2.25 191000 206000 19500 21000 3600 5000 102.2 42.2 96 154 1
7218B 7218DB 7218DF 7218DT 90 160 30 2 1 107000 94000 10900 9550 15.5 3200 4300 67.4 100 150 2 2.29 173000 188000 17700 19100 2600 3400 134.9 74.9 96 154 1
7218C 7218DB 7218DF 7218DT 90 160 30 2 1 123000 105000 12500 10700 14.6 6300 9000 31.7 100 150 2 2.51 199000 209000 20300 21400 5300 7100 63.5 3.5 - 154 1
7219A 7219DB 7219DF 7219DT 95 170 32 2.1 1.1 128000 111000 13000 11300 15 4300 5600 54.2 107 158 2 2.68 208000 `221000 21200 22600 3400 4500 108.5 44.5 102 163 1
7219B 7219DB 7219DF 7219DT 95 170 32 2.1 1.1 116000 101000 11800 10300 15.4 3000 4000 71.6 107 158 2 2.74 188000 202000 19200 20500 2400 3200 143.2 79.2 102 163 1
7219C 7219DB 7219DF 7219DT 95 170 32 2.1 1.1 133000 112000 13500 11400 14.6 6000 8500 33.7 107 158 2 3.05 216000 224000 22000 22800 4800 6700 67.5 3.5 - 163 1
7216A 7216DB 7216DF 7216DT 80 140 26 2 1 89000 76000 9100 7750 15.4 5000 7100 44.8 90 130 2 1.46 145000 152000 14700 15600 4000 5600 89.5 37.5 86 134 1
7216B 7216DB 7216DF 7216DT 80 140 26 2 1 80500 69500 8200 7050 15.5 3600 5000 59.1 90 130 2 1.49 131000 139000 13300 14100 2800 4000 118.3 66.3 86 134 1
7216C 7216DB 7216DF 7216DT 80 140 26 2 1 93000 77500 9450 7900 14.8 7500 10000 27.7 90 130 2 1.64 151000 155000 15400 15800 6000 8000 55.5 3.5 - 134 1
7217A 7217DB 7217DF 7217DT 85 150 28 2 1 103000 89000 10500 9100 15.1 4800 6700 47.9 95 140 2 1.83 167000 178000 17100 18200 3800 5300 95.8 39.8 91 144 1
7217B 7217DB 7217DF 7217DT 85 150 28 2 1 93000 81000 9500 8250 15.5 3400 4800 63.3 95 140 2 1.87 151000 162000 15400 16500 2800 3800 126.6 70.6 91 144 1
7217C 7217DB 7217DF 7217DT 85 150 28 2 1 107000 90500 10900 9250 14.9 6700 9500 29.7 95 140 2 2.04 174000 181000 17800 18500 5600 7500 59.5 3.5 - 144 1
7218A 7218DB 7218DF 7218DT 90 160 30 2 1 118000 103000 12000 10500 15.1 4500 6000 51.1 100 150 2 2.25 191000 206000 19500 21000 3600 5000 102.2 42.2 96 154 1
7218B 7218DB 7218DF 7218DT 90 160 30 2 1 107000 94000 10900 9550 15.5 3200 4300 67.4 100 150 2 2.29 173000 188000 17700 19100 2600 3400 134.9 74.9 96 154 1
7218C 7218DB 7218DF 7218DT 90 160 30 2 1 123000 105000 12500 10700 14.6 6300 9000 31.7 100 150 2 2.51 199000 209000 20300 21400 5300 7100 63.5 3.5 - 154 1
7219A 7219DB 7219DF 7219DT 95 170 32 2.1 1.1 128000 111000 13000 11300 15 4300 5600 54.2 107 158 2 2.68 208000 `221000 21200 22600 3400 4500 108.5 44.5 102 163 1
7219B 7219DB 7219DF 7219DT 95 170 32 2.1 1.1 116000 101000 11800 10300 15.4 3000 4000 71.6 107 158 2 2.74 188000 202000 19200 20500 2400 3200 143.2 79.2 102 163 1
7219C 7219DB 7219DF 7219DT 95 170 32 2.1 1.1 133000 112000 13500 11400 14.6 6000 8500 33.7 107 158 2 3.05 216000 224000 22000 22800 4800 6700 67.5 3.5 - 163 1
7220A 7220DB 7220DF 7220DT 100 180 34 2.1 1.1 144000 126000 14700 12800 15 4000 5300 57.4 112 168 2 3.22 233000 251000 23800 25600 3200 4300 114.8 46.8 107 173 1
7220B 7220DB 7220DF 7220DT 100 180 34 2.1 1.1 130000 114000 13300 11700 15.4 2800 3800 75.7 112 168 2 3.29 212000 229000 21600 23300 2200 3000 151.5 83.5 107 173 1
7220C 7220DB 7220DF 7220DT 100 180 34 2.1 1.1 149000 127000 15200 12900 14.5 5600 8000 35.7 112 168 2 3.65 242000 254000 24700 25900 4500 6300 71.5 3.5 - 173 1
7221A 7221DB 7221DF 7221DT 105 190 36 2.1 1.1 157000 142000 16000 14400 15 3800 5000 60.6 117 178 2 3.84 254000 283000 25900 28900 3000 4000 121.2 49.2 112 183 1
7221B 7221DB 7221DF 7221DT 105 190 36 2.1 1.1 142000 129000 14500 13100 15.4 2600 3600 79.9 117 178 2 3.92 231000 258000 23500 26300 2200 3000 159.8 87.8 112 183 1
7221C 7221DB 7221DF 7221DT 105 190 36 2.1 1.1 162000 143000 16600 14600 14.5 5300 7500 37.7 117 178 2 4.33 264000 286000 26900 29100 4300 6000 75.5 3.5 - 183 1
7222A 7222DB 7222DF 7222DT 110 200 38 2.1 1.1 170000 158000 17300 16100 15.2 3600 4800 63.7 122 188 2 4.49 276000 315000 28100 32500 2800 4000 127.5 51.6 117 193 1
7222B 7222DB 7222DF 7222DT 110 200 38 2.1 1.1 154000 144000 15700 14700 15.4 2600 3400 84 122 188 2 4.58 250000 289000 25500 29400 2000 2800 168.1 92.1 117 193 1
7222C 7222DB 7222DF 7222DT 110 200 38 2.1 1.1 176000 160000 17900 16300 14.5 5000 7100 39.8 122 188 2 5.1 286000 320000 29200 32500 4000 5600 79.5 3.5 - 193 1
7224A 7224DB 7224DF 7224DT 120 215 40 2.1 1.1 183000 177000 18600 18100 15 3200 4500 68.3 132 203 2 6.22 297000 355000 30500 36000 2600 3600 136.7 56.7 - 208 1
7224B 7224DB 7224DF 7224DT 120 215 40 2.1 1.1 165000 162000 16900 16500 15.4 2400 3200 90.3 132 203 2 6.26 269000 325000 27400 33000 1900 2600 180.5 100.5 - 208 1
7226A 7226DB 7226DF 7226DT 130 230 40 3 1.1 189000 193000 19300 19600 15.3 2400 3200 72 144 216 2.5 7.06 310000 385000 31500 39500 1900 2600 143.9 63.9 - 223 1
7226B 7226DB 7226DF 7226DT 130 230 40 3 1.1 171000 175000 17400 17800 15.7 2200 3000 95.5 144 216 2.5 7.1 278000 350000 28300 35500 1700 2400 191 111 - 223 1
7228A 7228DB 7228DF 7228DT 140 250 42 3 1.1 218000 234000 22300 23900 15.2 2200 3000 77.3 154 236 2.5 8.92 355000 470000 36000 48000 1800 2400 154.6 70.6 - 243 1
7228B 7228DB 7228DF 7228DT 140 250 42 3 1.1 197000 213000 20100 21700 15.6 2000 2800 102.8 154 236 2.5 8.94 320000 425000 32500 43500 1600 2200 205.6 121.6 - 243 1
7230A 7230DB 7230DF 7230DT 150 270 45 3 1.1 248000 280000 25300 28500 15.2 2000 2800 83.1 164 256 2.5 11.2 405000 560000 41000 57000 1600 2200 166.3 76.3 - 263 1
7230B 7230DB 7230DF 7230DT 150 270 45 3 1.1 225000 254000 22900 25900 15.5 1800 2600 110.6 164 256 2.5 11.2 365000 510000 37000 52000 1500 2000 221.2 131.2 - 263 1
7232A 7232DB 7232DF 7232DT 160 290 48 3 1.1 263000 305000 26800 31500 15.3 1900 2600 89 174 276 2.5 14.1 425000 615000 43500 62500 1500 2000 177.9 81.9 - 283 1
7232B 7232DB 7232DF 7232DT 160 290 48 3 1.1 238000 279000 24200 28400 15.9 1700 2400 118.4 174 276 2.5 14.2 385000 555000 39500 57000 1400 1900 236.8 140.8 - 283 1
7234A 7234DB 7234DF 7234DT 170 310 52 4 1.5 295000 360000 30000 36500 15.2 1800 2400 95.3 188 292 3 17.3 480000 715000 49000 73000 1400 1900 190.6 86.6 - 301 1.5
7234B 7234DB 7234DF 7234DT 170 310 52 4 1.5 266000 325000 27200 33000 15.6 1600 2200 126.7 188 292 3 17.6 435000 650000 44000 66500 1300 1700 253.4 149.4 - 301 1.5
7236A 7236DB 7236DF 7236DT 180 320 52 4 1.5 305000 385000 31000 39000 15.3 1700 2200 98.2 198 302 3 18.1 495000 770000 50500 78500 1400 1800 196.3 92.3 - 311 1.5
7236B 7236DB 7236DF 7236DT 180 320 52 4 1.5 276000 350000 28100 35500 15.7 1500 2000 130.9 198 302 3 18.4 450000 700000 45500 71000 1200 1700 261.8 157.8 - 311 1.5
7238A 7238DB 7238DF 7238DT 190 340 55 4 1.5 315000 410000 32000 42000 15.5 1600 2200 104 208 322 3 22.4 510000 825000 52000 84000 1300 1700 208 98 - 331 1.5
7238B 7238DB 7238DF 7238DT 190 340 55 4 1.5 284000 375000 28900 38000 15.9 1400 2000 138.7 208 322 3 22.5 460000 750000 47000 76000 1100 1600 277.3 167.3 - 331 1.5
7240A 7240DB 7240DF 7240DT 200 360 58 4 1.5 335000 450000 34500 46000 15.5 1500 2000 109.8 218 342 3 26.5 550000 900000 56000 92000 1200 1600 219.6 103.6 - 351 1.5
7240B 7240DB 7240DF 7240DT 200 360 58 4 1.5 305000 410000 31000 41500 15.8 1300 1800 146.5 218 342 3 26.6 495000 815000 50500 83000 1100 1500 292.9 176.9 - 351 1.5
