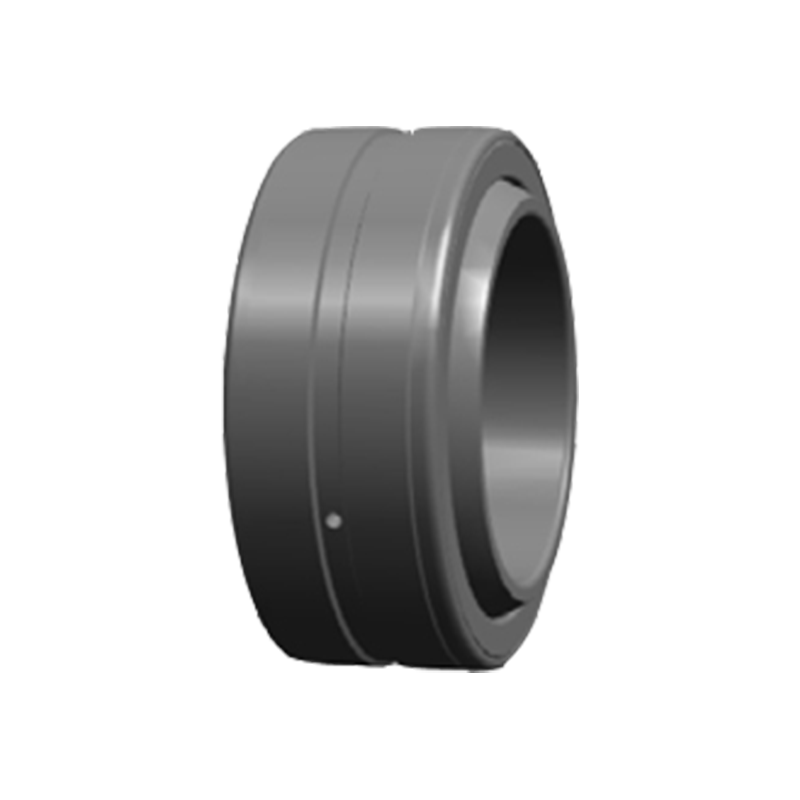

GEG...(E)ES-2RS spherical plain bearings are high-performance bearings specially designed to carry radial and axial loads. This bearing's spherical design provides a flexible fit between non-parallel shafts and is suitable for a variety of dynamic applications. Its "2RS" means that both sides of the bearing are equipped with sealing rings, which can effectively prevent the intrusion of dust and moisture, thus extending the service life of the bearing. GEG...(E)ES-2RS bearings also have a low friction coefficient, which can reduce energy loss and improve equipment operating efficiency. Such bearings are widely used in agricultural machinery, construction equipment and transportation industries.
Product parameters

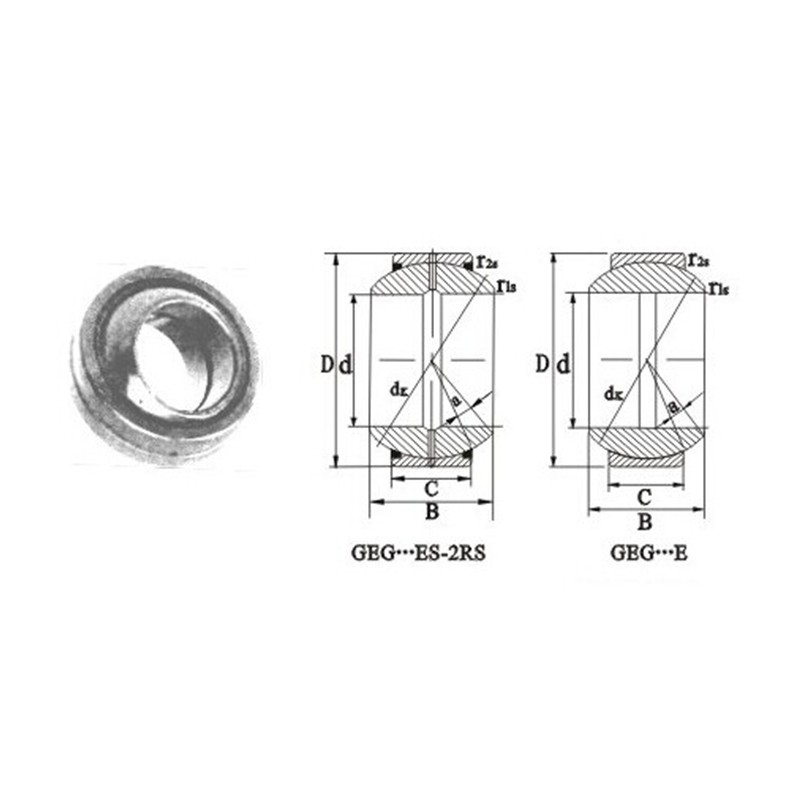

| Designation | Dimensions (mm) | Load Ratings (KN) | Weight (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type1 | Type2 | d | D | B | C | dk | α· ≈ | r2s min | r2s min | C | CO | |
| GEG6E | - | 6 | 16 | 9 | 5 | 13 | 21 | 0.3 | 0.3 | 5.5 | 27.5 | 0.008 |
| GEG8E | - | 8 | 19 | 11 | 6 | 16 | 21 | 0.3 | 0.3 | 8.15 | 40.5 | 0.014 |
| GEG10E | - | 10 | 22 | 12 | 7 | 18 | 18 | 0.3 | 0.3 | 10.8 | 54 | 0.02 |
| GEG12E | - | 12 | 26 | 15 | 9 | 22 | 18 | 0.3 | 0.3 | 17 | 85 | 0.034 |
| GEG15E | - | 15 | 30 | 16 | 10 | 25 | 16 | 0.3 | 0.3 | 21.2 | 106 | 0.046 |
| GEG17E | - | 17 | 35 | 20 | 12 | 29 | 19 | 0.3 | 0.3 | 30 | 146 | 0.078 |
| GEG20ES | GEG20ES-2RS | 20 | 42 | 25 | 16 | 35.5 | 17 | 0.6 | 0.6 | 48 | 240 | 0.15 |
| GEG25ES | GEG25ES-2RS | 25 | 47 | 28 | 18 | 40.7 | 17 | 0.6 | 0.6 | 12 | 310 | 0.19 |
| GEG30ES | GEG30ES-2RS | 30 | 55 | 32 | 20 | 47 | 17 | 0.6 | 1 | 80 | 400 | 0.29 |
| GEG35ES | GEG35ES-2RS | 35 | 62 | 35 | 23 | 53 | 16 | 0.6 | 1 | 100 | 500 | 0.39 |
| GEG40ES | GEG40ES-2RS | 40 | 68 | 40 | 25 | 60 | 17 | 0.6 | 1 | 127 | 640 | 0.52 |
| GEG45ES | GEG45ES-2RS | 45 | 75 | 43 | 28 | 66 | 15 | 0.6 | 1 | 156 | 780 | 0.68 |
| GEG50ES | GEG50ES-2RS | 50 | 90 | 56 | 36 | 80 | 17 | 0.6 | 1 | 245 | 1220 | 1.4 |
| GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 17 | 1 | 1 | 315 | 1560 | 2 |
| GEG70ES | GEG70ES-2RS | 70 | 120 | 70 | 45 | 105 | 16 | 1 | 1 | 400 | 2000 | 2.9 |
| GEG80ES | GEG80ES-2RS | 80 | 130 | 75 | 50 | 115 | 14 | 1 | 1 | 490 | 2450 | 3.5 |
| GEG90ES | GEG90ES-2RS | 90 | 150 | 85 | 55 | 130 | 15 | 1 | 1 | 610 | 3050 | 5.4 |
| GEG100ES | GEG100ES-2RS | 100 | 160 | 85 | 55 | 140 | 14 | 1 | 1 | 655 | 3250 | 5.9 |
