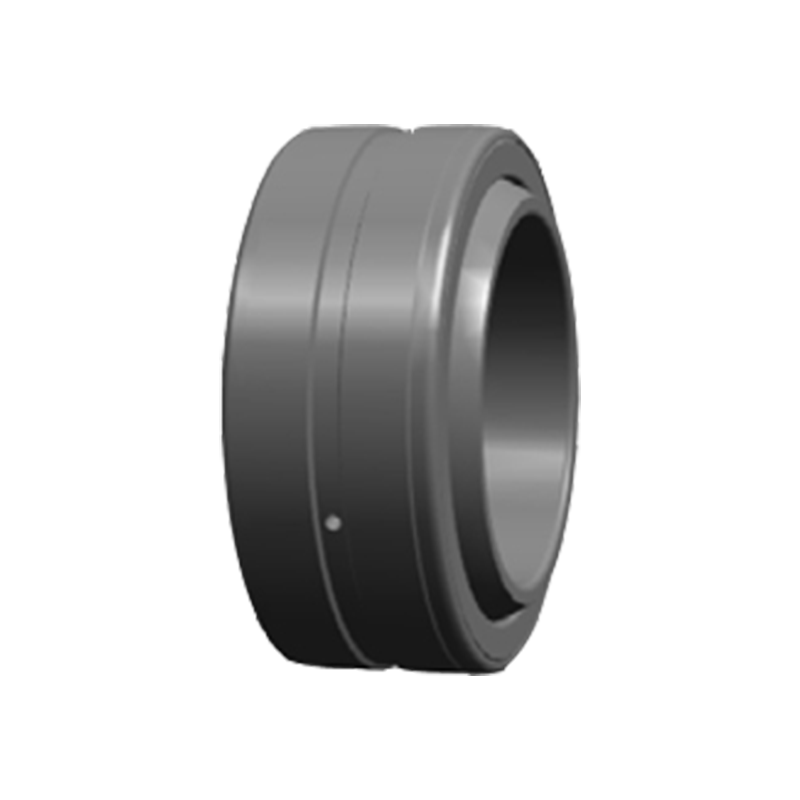

GEG...(E)ES spherical plain bearings are high-performance plain bearings widely used in mechanical engineering and the automotive industry. Its unique design combines spherical rolling elements with flat contact surfaces, allowing self-alignment under multi-axial loads, reducing friction and wear and improving overall operating efficiency. The bearing is made of high-quality materials, has excellent wear resistance and corrosion resistance, and can adapt to various harsh environments. GEG...(E)ES series bearings have good load-bearing capacity and long service life, and are often used in equipment requiring high precision and stability. Whether it is rotational motion or swing motion, GEG...(E)ES spherical plane bearings can effectively support and improve the performance of equipment, and are an indispensable and important component of modern mechanical equipment.
Product parameters

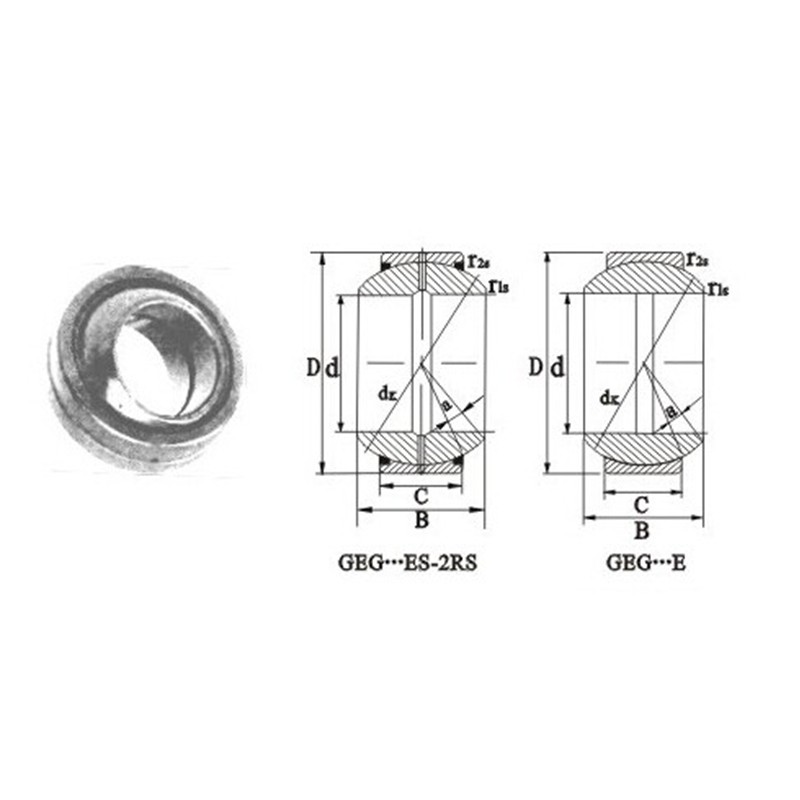

Designation | Dimensions (mm) | Load Ratings (KN) | Weight (kg) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Type1 | Type2 | d | D | B | C | dk | α· ≈ | r2s min | r2s min | C | CO | |
GEG6E | - | 6 | 16 | 9 | 5 | 13 | 21 | 0.3 | 0.3 | 5.5 | 27.5 | 0.008 |
GEG8E | - | 8 | 19 | 11 | 6 | 16 | 21 | 0.3 | 0.3 | 8.15 | 40.5 | 0.014 |
GEG10E | - | 10 | 22 | 12 | 7 | 18 | 18 | 0.3 | 0.3 | 10.8 | 54 | 0.02 |
GEG12E | - | 12 | 26 | 15 | 9 | 22 | 18 | 0.3 | 0.3 | 17 | 85 | 0.034 |
GEG15E | - | 15 | 30 | 16 | 10 | 25 | 16 | 0.3 | 0.3 | 21.2 | 106 | 0.046 |
GEG17E | - | 17 | 35 | 20 | 12 | 29 | 19 | 0.3 | 0.3 | 30 | 146 | 0.078 |
GEG20ES | GEG20ES-2RS | 20 | 42 | 25 | 16 | 35.5 | 17 | 0.6 | 0.6 | 48 | 240 | 0.15 |
GEG25ES | GEG25ES-2RS | 25 | 47 | 28 | 18 | 40.7 | 17 | 0.6 | 0.6 | 12 | 310 | 0.19 |
GEG30ES | GEG30ES-2RS | 30 | 55 | 32 | 20 | 47 | 17 | 0.6 | 1 | 80 | 400 | 0.29 |
GEG35ES | GEG35ES-2RS | 35 | 62 | 35 | 23 | 53 | 16 | 0.6 | 1 | 100 | 500 | 0.39 |
GEG40ES | GEG40ES-2RS | 40 | 68 | 40 | 25 | 60 | 17 | 0.6 | 1 | 127 | 640 | 0.52 |
GEG45ES | GEG45ES-2RS | 45 | 75 | 43 | 28 | 66 | 15 | 0.6 | 1 | 156 | 780 | 0.68 |
GEG50ES | GEG50ES-2RS | 50 | 90 | 56 | 36 | 80 | 17 | 0.6 | 1 | 245 | 1220 | 1.4 |
GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 17 | 1 | 1 | 315 | 1560 | 2 |
GEG70ES | GEG70ES-2RS | 70 | 120 | 70 | 45 | 105 | 16 | 1 | 1 | 400 | 2000 | 2.9 |
GEG80ES | GEG80ES-2RS | 80 | 130 | 75 | 50 | 115 | 14 | 1 | 1 | 490 | 2450 | 3.5 |
GEG90ES | GEG90ES-2RS | 90 | 150 | 85 | 55 | 130 | 15 | 1 | 1 | 610 | 3050 | 5.4 |
GEG100ES | GEG100ES-2RS | 100 | 160 | 85 | 55 | 140 | 14 | 1 | 1 | 655 | 3250 | 5.9 |
