GE...FW-2RS

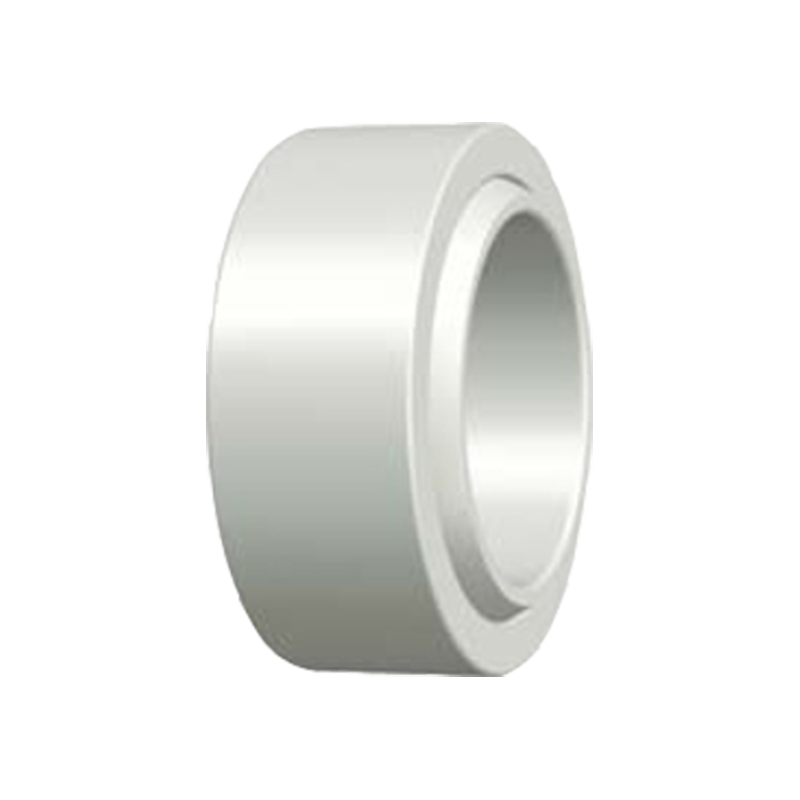

GE...FW-2RS spherical sliding bearing is a high-performance mechanical component widely used in industrial equipment and heavy machinery. Its design combines high load carrying capacity with excellent self-alignment for eccentric shaft and misalignment applications. The bearing adopts a double-lip seal design, which can effectively prevent dirt and moisture from entering and extend its service life. The internal materials are usually wear-resistant alloys with good corrosion resistance and wear resistance, ensuring stability and reliability in harsh working environments. GE...FW-2RS bearings are easy to install and maintain and are widely used in aerospace, automobile manufacturing, engineering machinery and other fields. They are an important choice for achieving efficient and stable mechanical operation.

Send inquiry

Product parameters

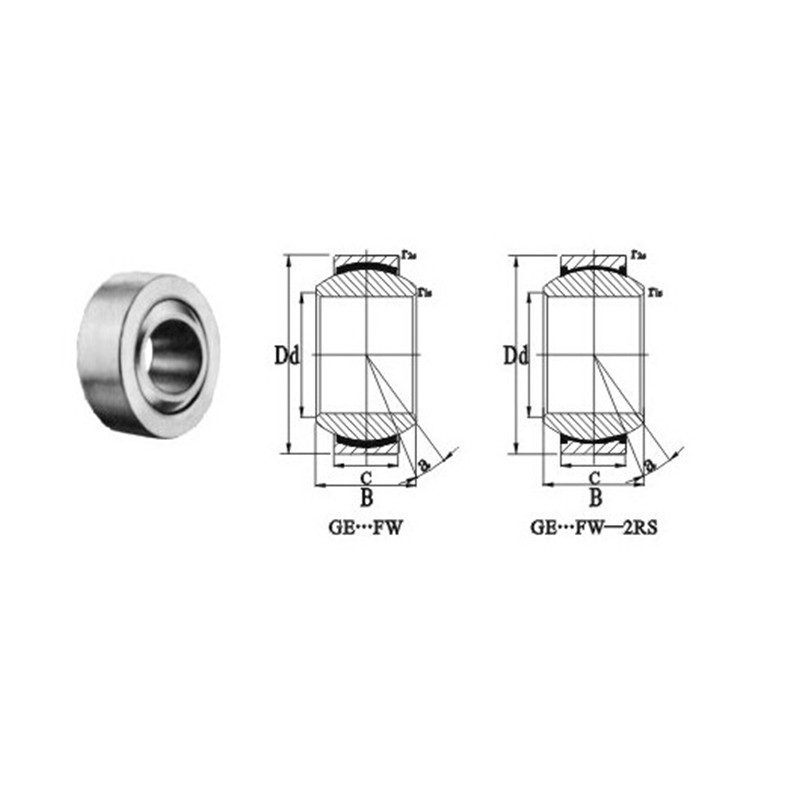

Designation Dimensions (mm) Load Ratings α· ≈ Weight (kg)
d D B C r1s min r2s min C CO
GE4FW 4 14 7 4 0.3 0.3 3.6 9.1 20 0.005
GE5FW 5 16 9 5 0.3 0.3 5.8 14 21 0.006
GE6FW 6 16 9 5 0.3 0.3 5.8 14 21 0.008
GE8FW 8 19 11 6 0.3 0.3 8.6 21 21 0.014
GE10FW 10 22 12 7 0.3 0.3 11 28 18 0.021
GE12FW 12 26 15 9 0.3 0.3 18 45 18 0.033
GE15FW-2RS 15 30 16 10 0.3 0.3 22.4 56 16 0.046
GE17FW-2RS 17 35 20 12 0.3 0.3 31.5 78 19 0.078
GE20FW-2RS 20 42 25 16 0.6 0.6 51 127 17 0.15
GE25FW-2RS 25 47 28 18 0.6 0.6 65.5 166 17 0.19
GE30FW-2RS 30 55 32 20 0.6 0.6 112 224 17 0.29
GE35FW-2RS 35 62 35 23 0.6 1 140 280 16 0.39
GE40FW-2RS 40 68 40 25 0.6 1 180 360 17 0.52
GE45FW-2RS 45 75 43 28 0.6 1 220 440 15 0.68
GE50FW-2RS 50 90 56 36 0.6 1 345 695 17 1.4
GE60FW-2RS 60 105 63 40 1 1 440 880 17 2
GE70FW-2RS 70 120 70 45 1 1 570 1140 16 2.9
GE80FW-2RS 80 130 75 50 1 1 695 1370 14 3.5
GE90FW-2RS 90 150 85 55 1 1 865 1730 15 5.4
GE100FW-2RS 100 160 85 55 1 1 930 1860 14 5.9
