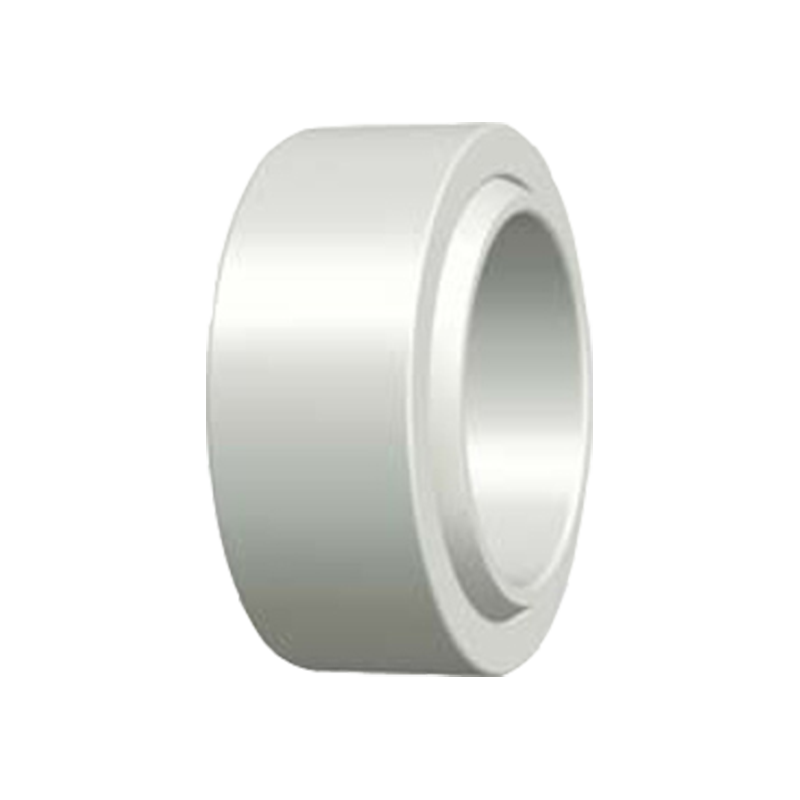

GEFW spherical plain bearing is a high-performance sliding bearing widely used in industrial and mechanical equipment. It uses a spherical design that allows free movement in multiple directions and can effectively withstand axial and radial loads. The bearing is made of high-strength material and has excellent wear resistance and corrosion resistance, ensuring its reliability in harsh environments. GEFW spherical plain bearings are particularly suitable for applications requiring high load bearing and flexible movement, such as engineering machinery, automation equipment and aerospace fields. In addition, its easy installation and maintenance features make it the first choice of many engineers.
Product parameters

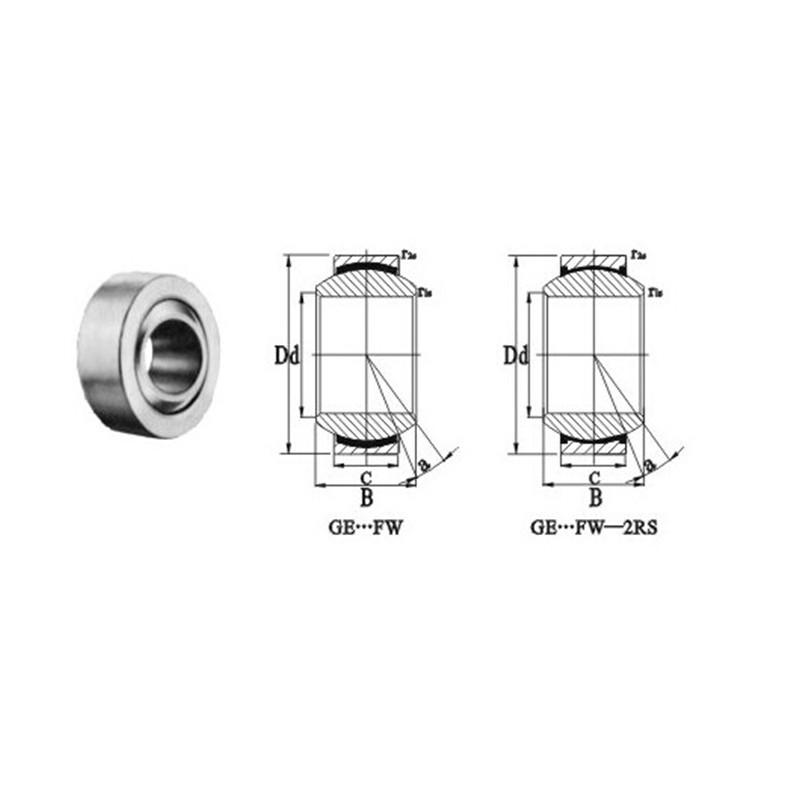

| Designation | Dimensions (mm) | α· ≈ | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d | D | B | C | dk | r1s min | r2s min | |||
| GE4FW | 4 | 14 | 7 | 4 | 0.3 | 0.3 | 3.6 | 20 | 0.005 |
| GE5FW | 5 | 16 | 9 | 5 | 0.3 | 0.3 | 5.8 | 21 | 0.006 |
| GE6FW | 6 | 16 | 9 | 5 | 0.3 | 0.3 | 5.8 | 21 | 0.008 |
| GE8FW | 8 | 19 | 11 | 6 | 0.3 | 0.3 | 8.6 | 21 | 0.014 |
| GE10FW | 10 | 22 | 12 | 7 | 0.3 | 0.3 | 11 | 18 | 0.021 |
| GE12FW | 12 | 26 | 15 | 9 | 0.3 | 0.3 | 18 | 18 | 0.033 |
| GE15FW-2RS | 15 | 30 | 16 | 10 | 0.3 | 0.3 | 22.4 | 16 | 0.046 |
| GE17FW-2RS | 17 | 35 | 20 | 12 | 0.3 | 0.3 | 31.5 | 19 | 0.078 |
| GE20FW-2RS | 20 | 42 | 25 | 16 | 0.6 | 0.6 | 51 | 17 | 0.15 |
| GE25FW-2RS | 25 | 47 | 28 | 18 | 0.6 | 0.6 | 65.5 | 17 | 0.19 |
| GE30FW-2RS | 30 | 55 | 32 | 20 | 0.6 | 0.6 | 112 | 17 | 0.29 |
| GE35FW-2RS | 35 | 62 | 35 | 23 | 0.6 | 1 | 140 | 16 | 0.39 |
| GE40FW-2RS | 40 | 68 | 40 | 25 | 0.6 | 1 | 180 | 17 | 0.52 |
| GE45FW-2RS | 45 | 75 | 43 | 28 | 0.6 | 1 | 220 | 15 | 0.68 |
| GE50FW-2RS | 50 | 90 | 56 | 36 | 0.6 | 1 | 345 | 17 | 1.4 |
| GE60FW-2RS | 60 | 105 | 63 | 40 | 1 | 1 | 440 | 17 | 2 |
| GE70FW-2RS | 70 | 120 | 70 | 45 | 1 | 1 | 570 | 16 | 2.9 |
| GE80FW-2RS | 80 | 130 | 75 | 50 | 1 | 1 | 695 | 14 | 3.5 |
| GE90FW-2RS | 90 | 150 | 85 | 55 | 1 | 1 | 865 | 15 | 5.4 |
| GE100FW-2RS | 100 | 160 | 85 | 55 | 1 | 1 | 930 | 14 | 5.9 |
