GE...(E)ES spherical plain bearing is a high-performance mechanical component widely used in various mechanical equipment. Its design features include spherical contact surfaces on the inner and outer rings, which can effectively withstand radial and axial loads. The bearing has a low sliding friction coefficient and good self-lubricating properties, making it suitable for environments with high loads and poor motion conditions. In addition, GE...(E)ES bearings are manufactured from high-quality materials and offer excellent wear and corrosion resistance for extended service life. Its unique structure makes installation and maintenance easy, and it is widely used in engineering machinery, aerospace, automobiles and other fields. It is an ideal choice to improve equipment reliability and performance. Through reasonable selection and maintenance, GE...(E)ES spherical plain bearings can significantly improve the efficiency and stability of the equipment.

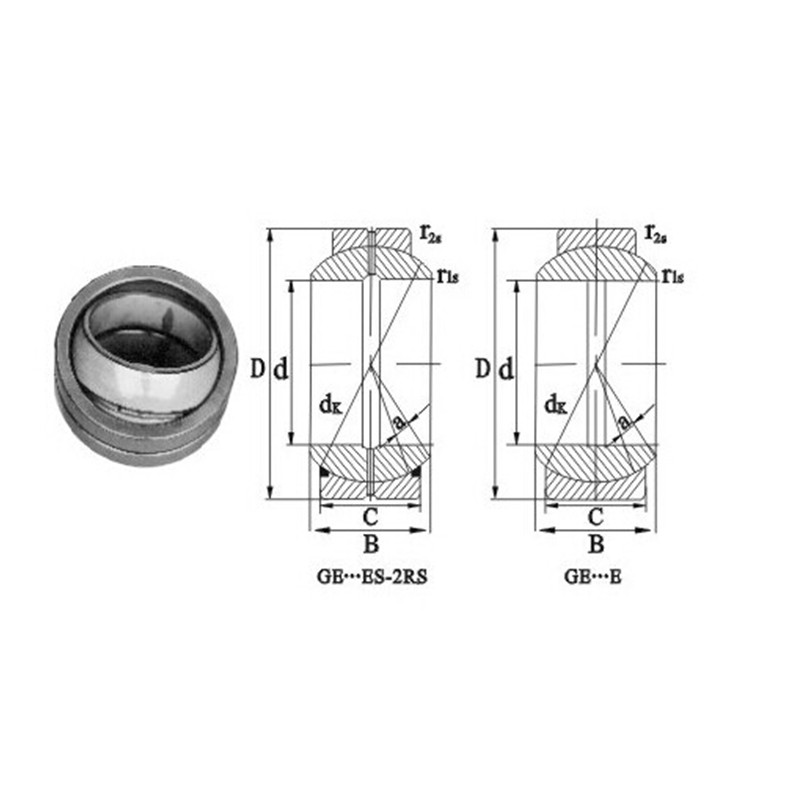

Product parameters
Designation | Dimensions (mm) | α· ≈ | Load Ratings (KN ) | Weight (kg) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Type1 | Type2 | d | D | B | C | dk | r1s min | r2s min | C | CO | ||
GE6E | - | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.4 | 17 | 0.004 |
GE8E | - | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.5 | 27.5 | 0.007 |
GE10E | - | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.15 | 40.5 | 0.011 |
GE12E | - | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 11 | 10.8 | 54 | 0.016 |
GE15ES | - | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 17 | 85 | 0.025 |
GE17ES | - | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21.2 | 106 | 0.041 |
GE20ES | GE20ES-2RS | 20 | 35 | 16 | 12 | 29 | 0.6 | 0.3 | 9 | 30 | 146 | 0.061 |
GE25ES | GE25ES-2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.11 |
GE30ES | GE30ES-2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.14 |
GE35ES | GE35ES-2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 80 | 400 | 0.22 |
GE40ES | GE40ES-2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 100 | 500 | 0.3 |
GE45ES | GE45ES-2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 640 | 0.4 |
GE50ES | GE50ES-2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.54 |
GE60ES | GE60ES-2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1 |
GE70ES | GE70ES-2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 315 | 1560 | 1.5 |
GE80ES | GE80ES-2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.2 |
GE90ES | GE90ES-2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 490 | 2450 | 2.7 |
GE100ES | GE100ES-2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 610 | 3050 | 4.3 |
GE110ES | GE110ES-2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 655 | 3250 | 4.7 |
GE120ES | GE120ES-2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8 |
GE140ES | GE140ES-2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 1080 | 5400 | 11 |
