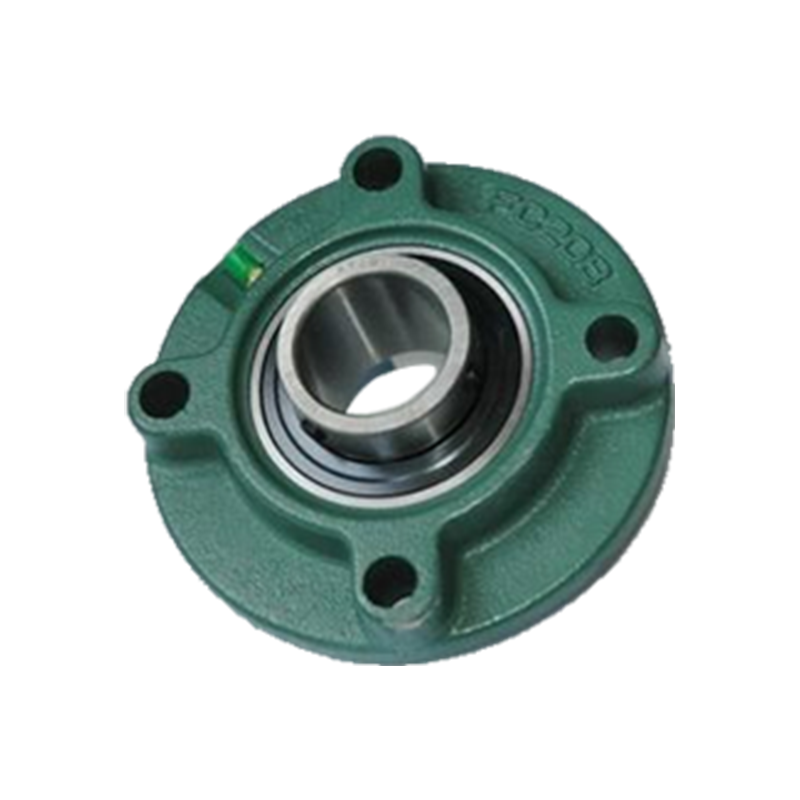

UCFC series bearing seats are high-performance rolling bearings widely used in industrial machinery and equipment. Its design uses high-quality materials to ensure the durability and reliability of the bearings. The bearing seats of the UCFC series have a simple installation method, allowing users to quickly and easily replace and maintain them, reducing equipment downtime. This series of products usually has a sealed structure, which effectively prevents the intrusion of dust and moisture, thereby extending the service life of the bearing. UCFC series bearing housings are suitable for a variety of applications, including transmission systems, conveying equipment and agricultural machinery. In addition, the product also offers a variety of sizes and configurations to meet the needs of different customers and ensure stable operation in various environments. By adopting innovative design and manufacturing processes, the UCFC series bearing housings have become an indispensable key component in industrial applications.
Product parameters

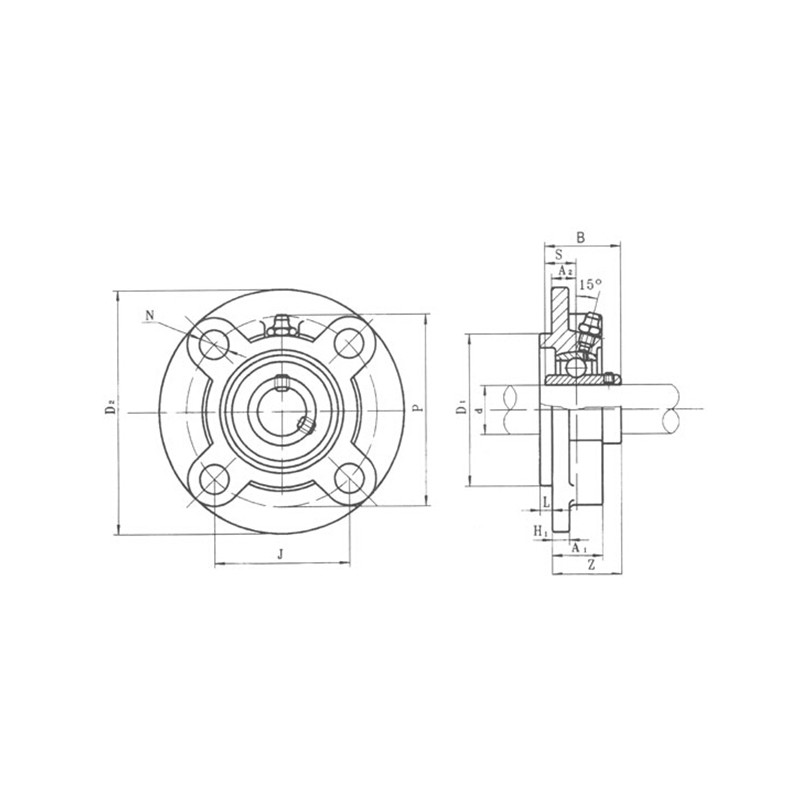

Type | Dimensions(mm) | Bolt Dimensions | Bearing Type | House Type | Weight (With House) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
d | D2 | P | J | A2 | N | L | H1 | D1 | Z | B | S | (Kg) | ||||
UCFC204 | 20 | 100 | 78 | 55.1 | 10 | 12 | 5 | 7 | 62 | 28.3 | 31 | 12.7 | M10 | UC204 | FC204 | 0.7 |
UCFC205 | 25 | 115 | 90 | 63.6 | 10 | 12 | 6 | 7 | 70 | 29.8 | 34.1 | 14.3 | M10 | UC205 | FC205 | 1 |
UCFC206 | 30 | 125 | 100 | 70.7 | 10 | 12 | 8 | 8 | 80 | 32.2 | 38.1 | 15.9 | M10 | UC206 | FC206 | 1.3 |
UCFC207 | 35 | 135 | 110 | 77.8 | 11 | 14 | 8 | 9 | 90 | 36.4 | 42.9 | 17.5 | M12 | UC207 | FC207 | 1.6 |
UCFC208 | 40 | 145 | 120 | 84.8 | 11 | 14 | 10 | 9 | 100 | 41.2 | 49.2 | 19 | M12 | UC208 | FC208 | 2.1 |
UCFC209 | 45 | 160 | 132 | 93.3 | 10 | 16 | 12 | 14 | 105 | 40.2 | 49.2 | 19 | M14 | UC209 | FC209 | 2.7 |
UCFC210 | 50 | 165 | 138 | 97.6 | 10 | 16 | 12 | 14 | 110 | 42.6 | 51.6 | 19 | M14 | UC210 | FC210 | 3.1 |
UCFC211 | 55 | 185 | 150 | 106.1 | 13 | 19 | 12 | 15 | 125 | 46.4 | 55.6 | 22.2 | M16 | UC211 | FC211 | 4.2 |
UCFC212 | 60 | 195 | 160 | 113.1 | 17 | 19 | 12 | 15 | 135 | 56.7 | 65.1 | 25.4 | M16 | UC212 | FC212 | 5.3 |
UCFC213 | 65 | 205 | 170 | 120.2 | 16 | 19 | 14 | 15 | 145 | 55.7 | 65.1 | 25.4 | M16 | UC213 | FC213 | 6 |
UCFC214 | 70 | 215 | 177 | 125.1 | 17 | 19 | 14 | 18 | 150 | 61.4 | 74.6 | 30.2 | M16 | UC214 | FC214 | 7 |
UCFC215 | 75 | 220 | 184 | 130.1 | 18 | 19 | 16 | 18 | 160 | 62.5 | 77.8 | 33.3 | M16 | UC215 | FC215 | 7.8 |
UCFC216 | 80 | 240 | 200 | 141.4 | 18 | 23 | 16 | 18 | 170 | 67.3 | 82.6 | 33.3 | M20 | UC216 | FC216 | 9.3 |
UCFC217 | 85 | 250 | 208 | 147.1 | 18 | 23 | 18 | 20 | 180 | 69.6 | 85.7 | 34.1 | M20 | UC217 | FC217 | 11 |
UCFC218 | 90 | 265 | 220 | 155.5 | 22 | 23 | 18 | 20 | 190 | 78.3 | 96 | 39.7 | M20 | UC218 | FC218 | 13 |
