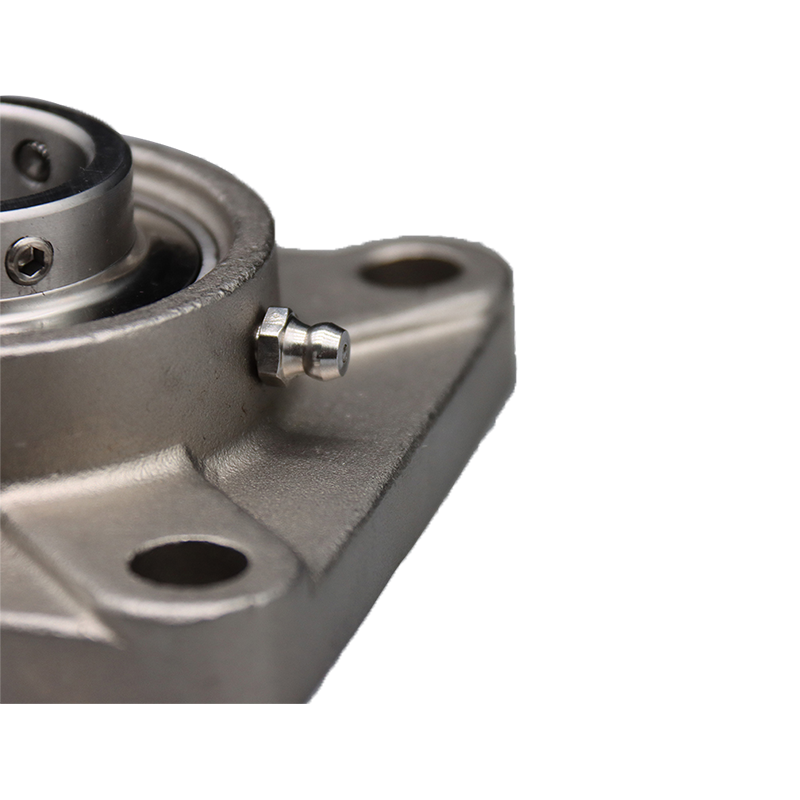

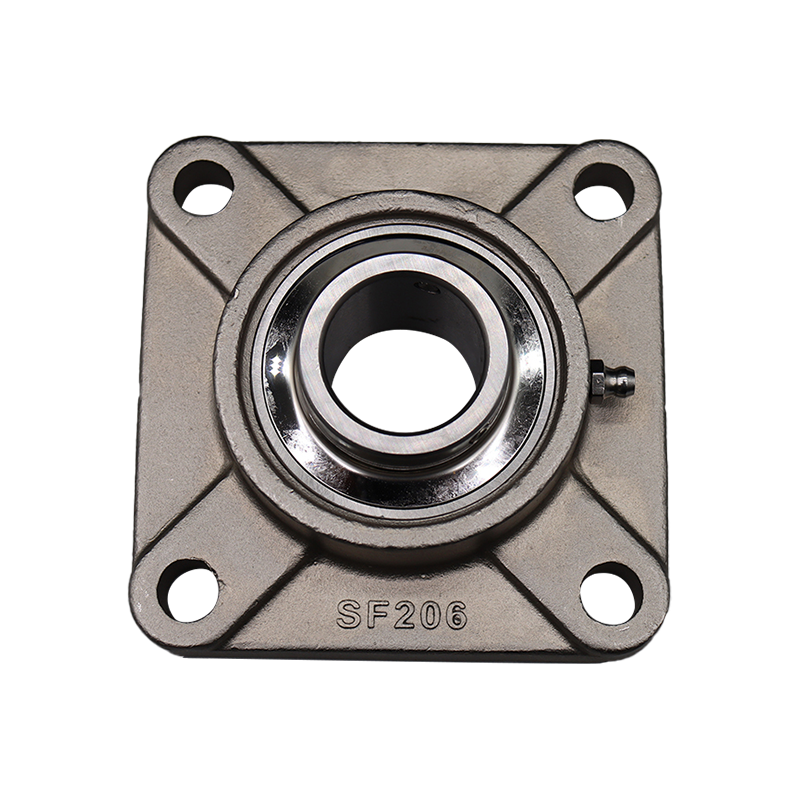

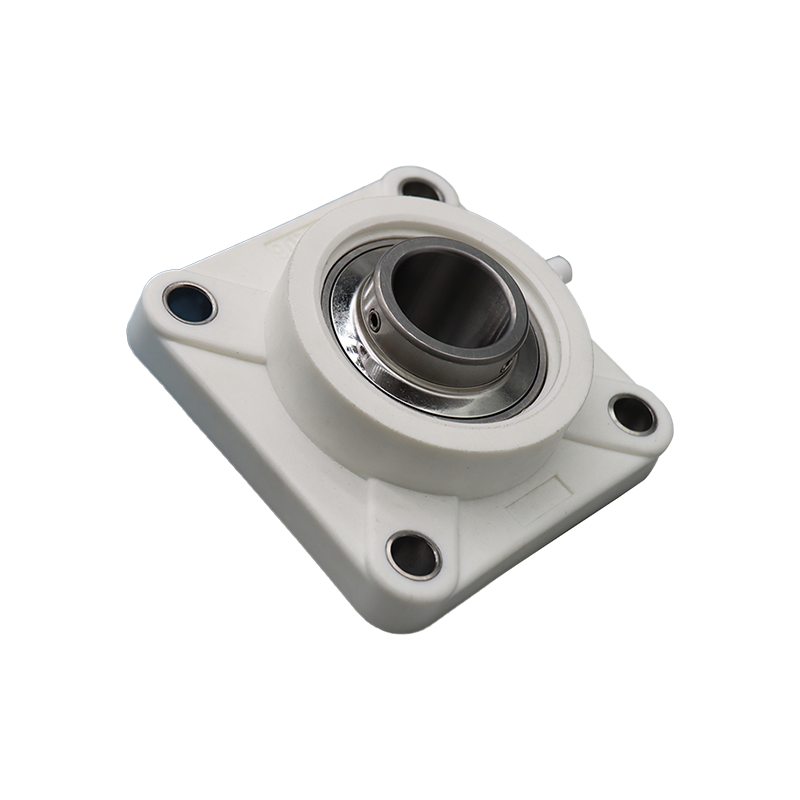

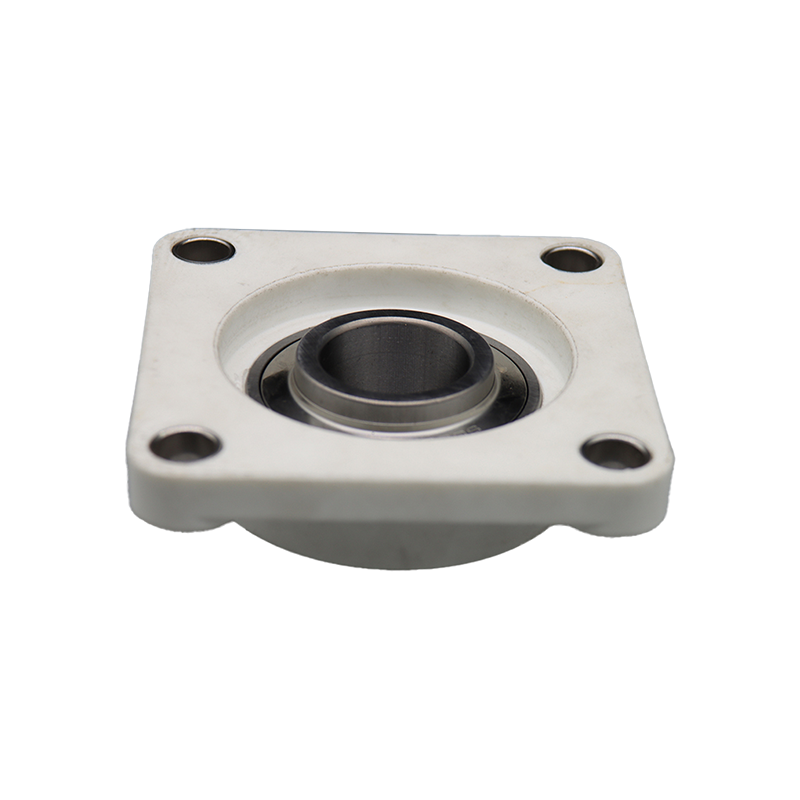

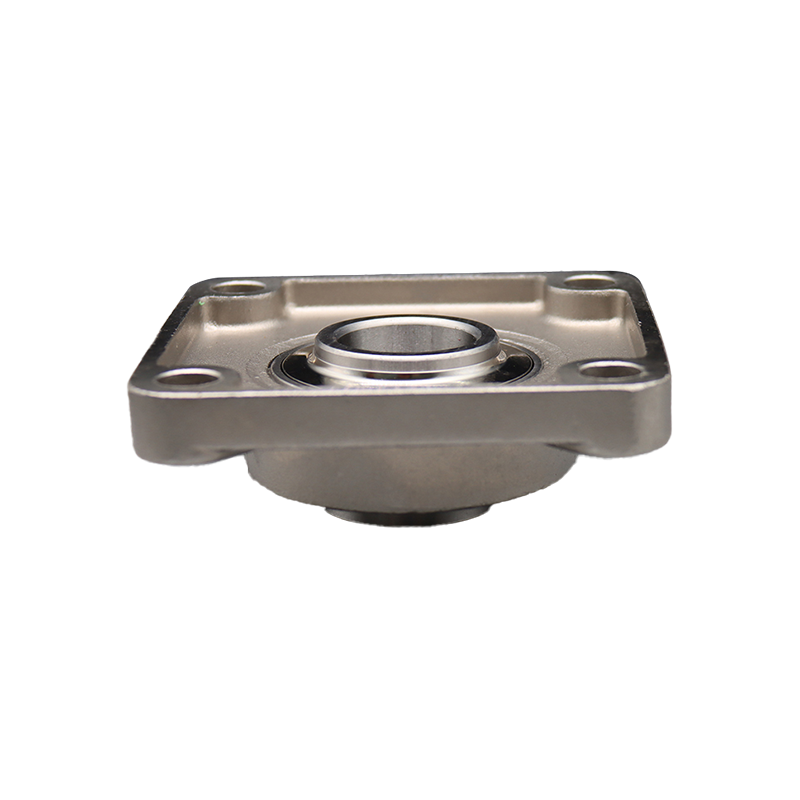

The UCF series bearing seat is a high-performance bearing product that is widely used in industrial machinery, agricultural equipment, automation equipment and other fields. They are made of high-quality materials and have excellent wear resistance and corrosion resistance to ensure long-term stable operation. The design of the UCF series includes an integrated bearing and bracket for easy installation and maintenance, which can effectively reduce equipment vibration and noise. Its standardized size and configuration make it highly compatible with other mechanical components and can meet the needs of various working conditions. In addition, UCF series bearing seats provide various types of sealing structures to further enhance their application performance in harsh environments. Whether it is light or heavy load, UCF series bearing housings are ideal for efficient transmission and precise positioning.
Product parameters

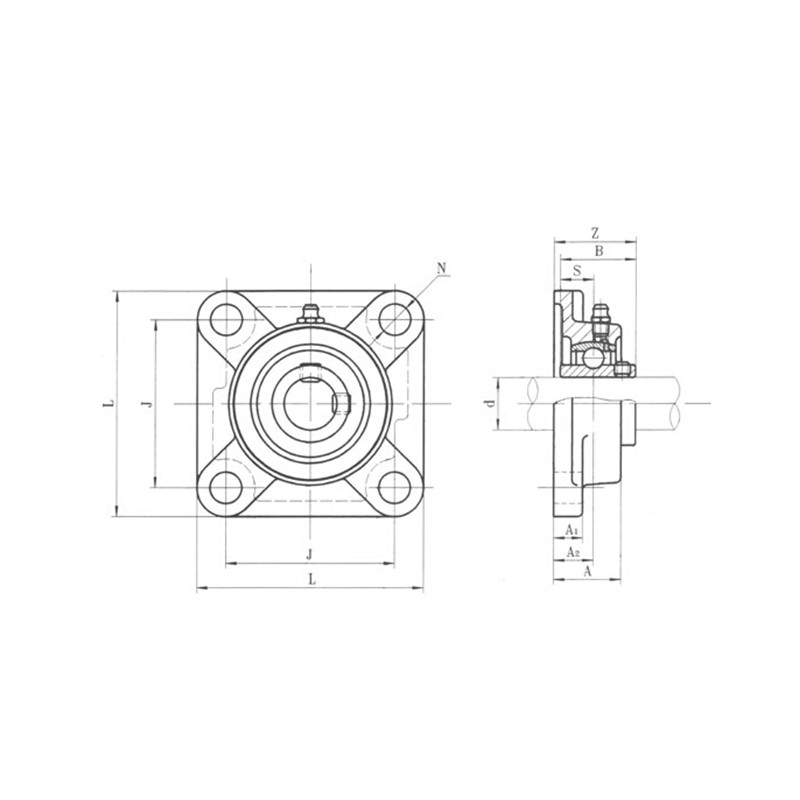

| Type(With House) | Dimensions（mm） | Bolt Dimensions | Bearing Type | House Type | Weight (With House) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | L | A | J | A1 | A2 | N | Z | B | S | (Kg) | ||||
| UCF204 | 20 | 86 | 25.5 | 64 | 11 | 15 | 12 | 33.3 | 31 | 12.7 | M10 | UC204 | F204 | 0.6 |
| UCF205 | 25 | 95 | 27 | 70 | 13 | 16 | 12 | 35.7 | 34.1 | 14.3 | M10 | UC205 | F205 | 0.8 |
| UCF206 | 30 | 108 | 31 | 83 | 13 | 18 | 12 | 40.2 | 38.1 | 15.9 | M10 | UC206 | F206 | 1 |
| UCF207 | 35 | 117 | 34 | 92 | 15 | 19 | 14 | 44.4 | 42.9 | 17.5 | M12 | UC207 | F207 | 1.4 |
| UCF208 | 40 | 130 | 36 | 102 | 15 | 21 | 16 | 51.2 | 49.2 | 19 | M14 | UC208 | F208 | 1.8 |
| UCF209 | 45 | 137 | 38 | 105 | 16 | 22 | 16 | 52.2 | 49.2 | 19 | M14 | UC209 | F209 | 2.2 |
| UCF210 | 50 | 143 | 40 | 111 | 16 | 22 | 16 | 54.6 | 51.6 | 19 | M14 | UC210 | F210 | 2.4 |
| UCF211 | 55 | 162 | 43 | 130 | 18 | 25 | 19 | 58.4 | 55.6 | 22.2 | M16 | UC211 | F211 | 3.6 |
| UCF212 | 60 | 175 | 48 | 143 | 18 | 29 | 19 | 68.7 | 65.1 | 25.4 | M16 | UC212 | F212 | 4.4 |
| UCF213 | 65 | 187 | 50 | 149 | 22 | 30 | 19 | 69.7 | 65.1 | 25.4 | M16 | UC213 | F213 | 5.5 |
| UCF214 | 70 | 193 | 54 | 152 | 22 | 31 | 19 | 75.4 | 74.6 | 30.2 | M16 | UC214 | F214 | 6.1 |
| UCF215 | 75 | 200 | 56 | 159 | 22 | 34 | 19 | 78.5 | 77.8 | 33.3 | M16 | UC215 | F215 | 6.9 |
| UCF216 | 80 | 208 | 58 | 165 | 22 | 34 | 23 | 83.3 | 82.6 | 33.3 | M20 | UC216 | F216 | 8.1 |
| UCF217 | 85 | 220 | 63 | 175 | 24 | 36 | 23 | 87.6 | 85.7 | 34.1 | M20 | UC217 | F217 | 9.3 |
| UCF218 | 90 | 235 | 68 | 187 | 24 | 40 | 23 | 96.3 | 96 | 39.7 | M20 | UC218 | F218 | 11 |
