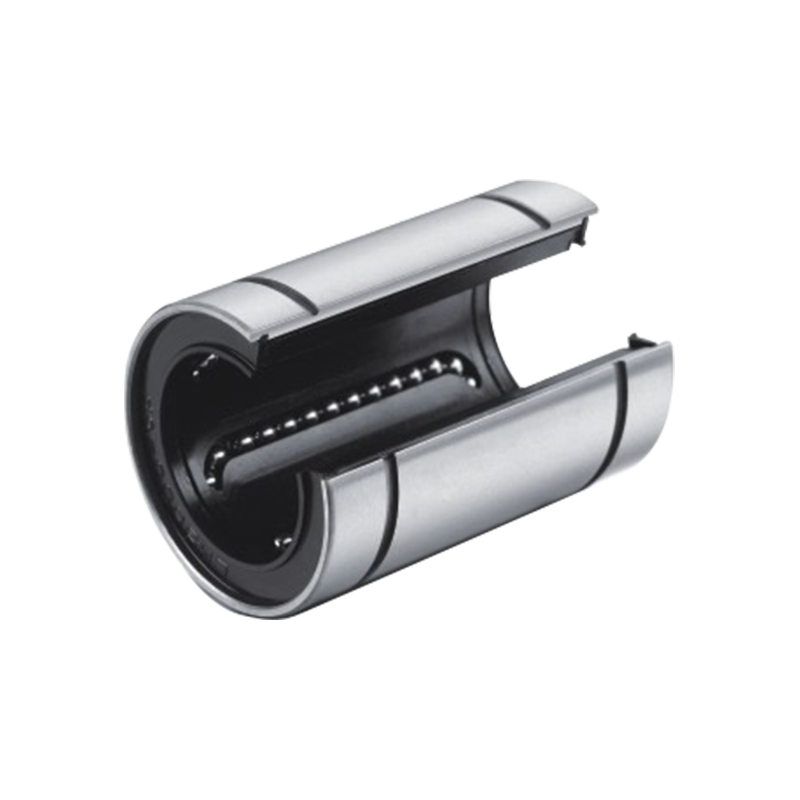

LM..UU-OP series open linear ball bearings are high-performance motion components that are widely used in industrial automation, machinery manufacturing, motion control and other fields. This series of bearings are made of high-quality materials and have excellent wear resistance and corrosion resistance, ensuring their stability under high loads and high-speed operations. The LM..UU-OP series is designed to allow free sliding on rails and can be used with many types of rails for easy installation and maintenance. Its open structure makes lubrication more convenient and effectively extends the service life of the bearing. In addition, this series of bearings also has low friction resistance, which can improve the working efficiency of mechanical equipment and reduce energy consumption. It is an indispensable key component in modern mechanical equipment.
Product parameters

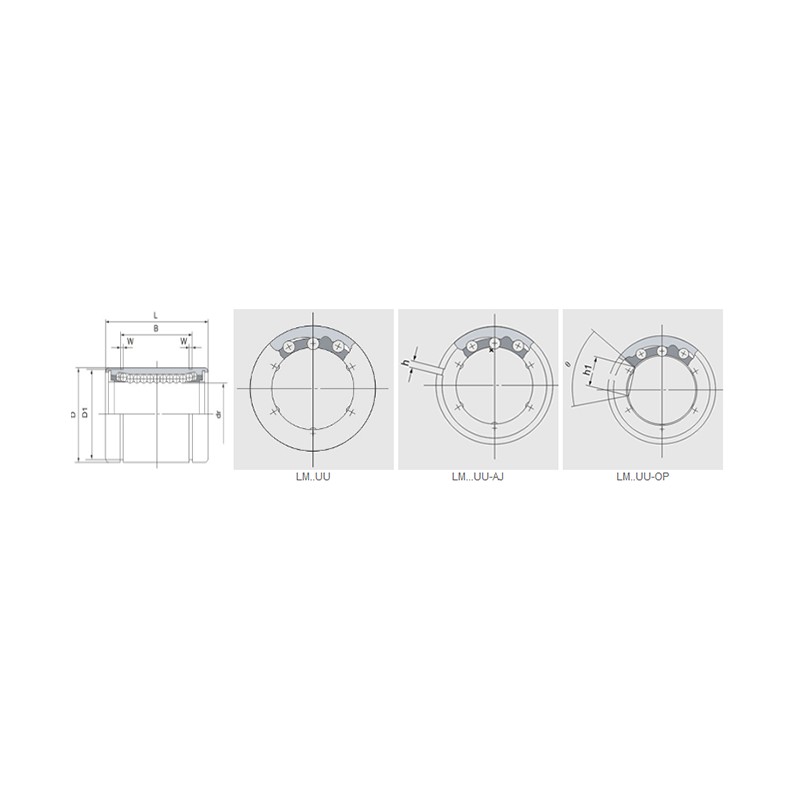

| Resin retainer | Nominal shaft diameter | dr | Major dimensions and tolerance | Eccentricity | Radial clearance (Max) | Basic load rating(kN) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LM…UU | Ball circuit | Weight(Kg) | LM…UU-AJ | Ball circuit | Weight | LM…UU-OP | Ball circuit | Weight(Kg) | mm | mm | Tolerance | Tolerance | D mm | Tolerance(μm) | L mm | Tolerance(μm) | B mm | Tolerance(μm) | W(mm) | D1(mm) | h(mm) | h1(mm) | θ | Precision | High | Dynamic | Static | |
| LM3 | 4 | 1.35 | — | — | — | — | — | — | 3 | 3 | 0/-5 | 0/-8 | 7 | 0/-9 | 10 | 0/-120 | — | — | — | — | — | — | — | 4 | 8 | -3 | 69 | 105 |
| LM4 | 4 | 1.9 | — | — | — | — | — | — | 4 | 4 | 0/-5 | 0/-8 | 8 | 0/-9 | 12 | 0/-120 | — | — | — | — | — | — | — | 4 | 8 | -3 | 88 | 127 |
| LM5UU | 4 | 4 | — | — | — | — | — | — | 5 | 5 | 0/-5 | 0/-8 | 10 | 0/-9 | 15 | 0/-120 | 10.2 | 0/-200 | 1.1 | 9.6 | — | — | — | 4 | 8 | -3 | 167 | 206 |
| LM6UU | 4 | 7.6 | LM6UU-AJ | 4 | 7.5 | — | — | — | 6 | 6 | 0/-6 | 0/-9 | 12 | 0/-11 | 19 | 0/-200 | 13.5 | 0/-200 | 1.1 | 11.5 | 1 | — | — | 8 | 12 | -3 | 206 | 265 |
| LM8SUU | 4 | 10.4 | LM8SUU-AJ | 4 | 10 | — | — | — | 8 | 8 | 0/-6 | 0/-9 | 15 | 0/-11 | 17 | 0/-200 | 11.5 | 0/-200 | 1.1 | 14.3 | 1 | — | — | 8 | 12 | -3 | 176 | 216 |
| LM8UU | 4 | 15 | LM8UU-AJ | 4 | 14.7 | — | — | — | 8 | 8 | 0/-6 | 0/-9 | 15 | 0/-11 | 24 | 0/-200 | 17.5 | 0/-200 | 1.1 | 14.3 | 1 | — | — | 8 | 12 | -3 | 274 | 392 |
| LM10UU | 4 | 29.5 | LM10UU-AJ | 4 | 29 | LM10UU-OP | 3 | 23 | 10 | 10 | 0/-6 | 0/-9 | 19 | 0/-13 | 29 | 0/-200 | 22 | 0/-200 | 1.3 | 18 | 1 | 6.8 | 80° | 8 | 12 | -4 | 372 | 549 |
| LM12UU | 4 | 31.5 | LM12UU-AJ | 4 | 31 | LM12UU-OP | 3 | 25 | 12 | 12 | 0/-6 | 0/-9 | 21 | 0/-13 | 30 | 0/-200 | 23 | 0/-200 | 1.3 | 20 | 1.5 | 8 | 80° | 8 | 12 | -4 | 510 | 784 |
| LM13UU | 4 | 43 | LM13UU-AJ | 4 | 42 | LM13UU-OP | 3 | 34 | 13 | 13 | 0/-6 | 0/-9 | 23 | 0/-13 | 32 | 0/-200 | 23 | 0/-200 | 1.3 | 22 | 1.5 | 9 | 80° | 8 | 12 | -4 | 510 | 784 |
| LM16UU | 5 | 69 | LM16UU-AJ | 5 | 68 | LM16UU-OP | 4 | 52 | 16 | 16 | 0/-6 | 0/-9 | 28 | 0/-13 | 37 | 0/-200 | 26.5 | 0/-200 | 1.6 | 27 | 1.5 | 11 | 80° | 8 | 12 | -6 | 774 | 1180 |
| LM20UU | 5 | 87 | LM20UU-AJ | 5 | 85 | LM20UU-OP | 4 | 69 | 20 | 20 | 0/-7 | 0/-10 | 32 | 0/-16 | 42 | 0/-200 | 30.5 | 0/-200 | 1.6 | 30.5 | 1.5 | 11 | 60° | 10 | 15 | -6 | 882 | 1370 |
| LM25UU | 6 | 220 | LM25UU-AJ | 6 | 216 | LM25UU-OP | 5 | 188 | 25 | 25 | 0/-7 | 0/-10 | 40 | 0/-16 | 59 | 0/-300 | 41 | 0/-300 | 1.85 | 38 | 2 | 12 | 50° | 10 | 15 | -6 | 980 | 1570 |
| LM30UU | 6 | 250 | LM30UU-AJ | 6 | 245 | LM30UU-OP | 5 | 210 | 30 | 30 | 0/-7 | 0/-10 | 45 | 0/-16 | 64 | 0/-300 | 44.5 | 0/-300 | 1.85 | 43 | 2.5 | 15 | 50° | 10 | 15 | -8 | 1570 | 2740 |
| LM35UU | 6 | 390 | LM35UU-AJ | 6 | 384 | LM35UU-OP | 5 | 335 | 35 | 35 | 0/-8 | 0/-12 | 52 | 0/-19 | 70 | 0/-300 | 49.5 | 0/-300 | 2.1 | 49 | 2.5 | 17 | 50° | 12 | 20 | -8 | 1670 | 3140 |
| LM40UU | 6 | 585 | LM40UU-AJ | 6 | 579 | LM40UU-OP | 5 | 500 | 40 | 40 | 0/-8 | 0/-12 | 60 | 0/-19 | 80 | 0/-300 | 60.5 | 0/-300 | 2.1 | 57 | 3 | 20 | 50° | 12 | 20 | -10 | 2160 | 4020 |
