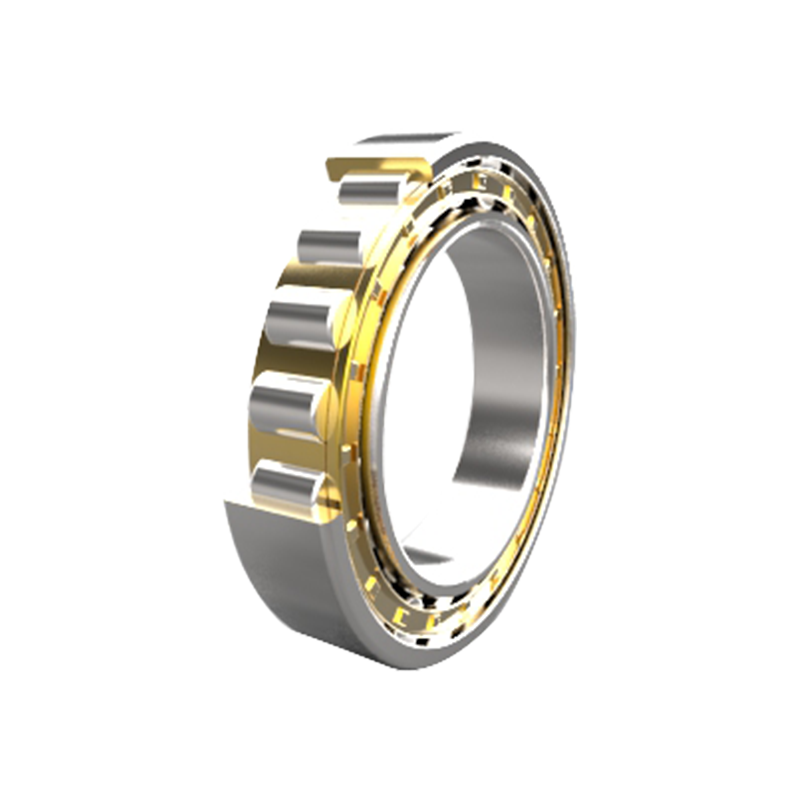

NF series cylindrical roller bearing is a rolling bearing widely used in mechanical transmission and equipment, with high load-bearing capacity and rigidity. This series of bearings is mainly composed of an inner ring, an outer ring and rollers. The cylindrical shape of the rollers enables them to withstand large radial loads and have low friction during high-speed operation. NF series bearings are particularly suitable for applications requiring high precision and stability, such as motors, reducers and industrial machinery. It is also designed for ease of installation and maintenance, effectively extending the service life of the equipment. In addition, the diversified specifications and material selection of NF series bearings enable it to meet the needs of different working conditions and environments and provide reliable performance guarantee.
Product parameters

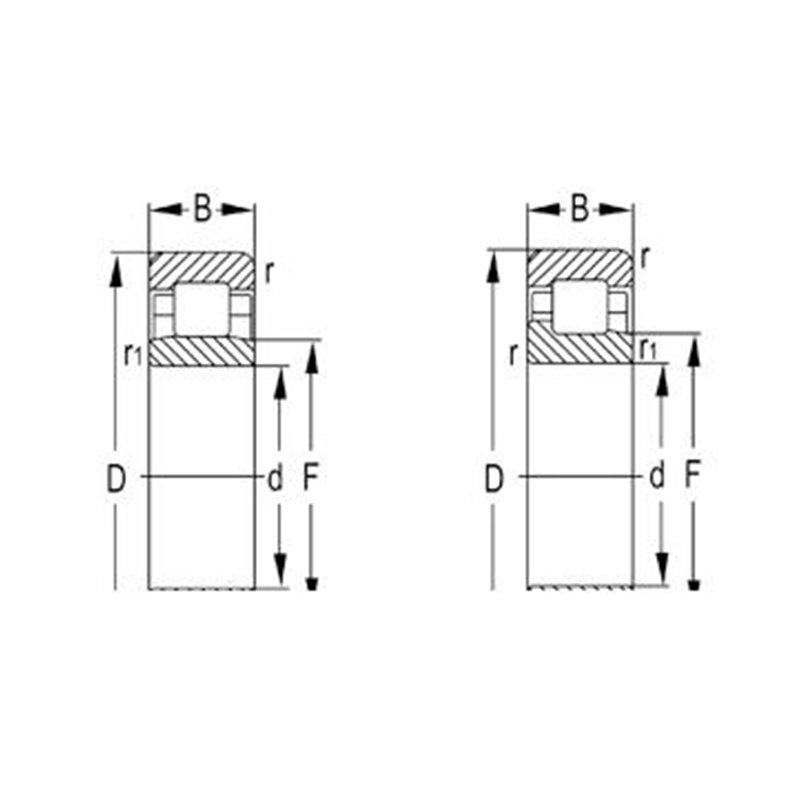

Designation | Principal Dimensions(mm) | Basic Load Ratings(KN) | Limited Speed(rpm) | Weight | ||||||
---|---|---|---|---|---|---|---|---|---|---|
d | D | B | rs min | rs1min | Dynamic(Cr) | Static(Cor) | Grease | Oil | (kg) | |
NF204E | 20 | 47 | 14 | 1 | 0.6 | 17 | 14 | 17000 | 20000 | 0.109 |
NF205E | 25 | 52 | 15 | 1 | 0.6 | 28 | 27 | 11000 | 14000 | 0.148 |
NF206E | 30 | 62 | 16 | 1 | 0.6 | 36 | 36 | 8500 | 11000 | 0.22 |
NF207E | 35 | 72 | 17 | 1.1 | 0.6 | 47 | 48 | 7500 | 9500 | 0.344 |
NF208E | 40 | 80 | 18 | 1.1 | 1.1 | 52 | 53 | 7000 | 9000 | 0.39 |
NF209E | 45 | 85 | 19 | 1.1 | 1.1 | 59 | 64 | 6300 | 8000 | 0.52 |
NF210E | 50 | 90 | 20 | 1.1 | 1.1 | 61 | 69 | 6000 | 7500 | 0.56 |
NF211E | 55 | 100 | 21 | 1.5 | 1.1 | 80 | 96 | 5300 | 6700 | 0.62 |
NF212E | 60 | 110 | 22 | 1.5 | 1.5 | 90 | 102 | 5000 | 6300 | 0.84 |
NF213E | 65 | 120 | 23 | 1.5 | 1.5 | 102 | 118 | 4500 | 5600 | 1.05 |
NF214E | 70 | 125 | 24 | 1.5 | 1.5 | 112 | 135 | 4300 | 5300 | 1.29 |
NF215E | 75 | 130 | 25 | 1.5 | 1.5 | 125 | 155 | 4000 | 5000 | 1.45 |
NF216E | 80 | 140 | 26 | 2 | 2 | 132 | 165 | 3800 | 4800 | 1.74 |
NF217E | 85 | 150 | 28 | 2 | 2 | 158 | 192 | 3600 | 4500 | 2.08 |
NF218E | 90 | 160 | 30 | 2 | 2 | 170 | 203 | 3400 | 4300 | 2.5 |
NF219E | 95 | 170 | 32 | 2.1 | 2.1 | 192 | 214 | 3200 | 4000 | 2.8 |
NF220E | 100 | 180 | 34 | 2.1 | 2.1 | 208 | 226 | 3000 | 3800 | 3.14 |
NF221E | 105 | 190 | 36 | 2.1 | 2.1 | 224 | 238 | 2800 | 3600 | 4 |
NF222E | 110 | 200 | 38 | 2.1 | 2.1 | 239 | 342 | 2600 | 3400 | 5.11 |
NF224E | 120 | 215 | 40 | 2.1 | 2.1 | 247 | 249 | 2200 | 3000 | 6.32 |
NF226E | 130 | 230 | 40 | 2.1 | 2.1 | 358 | 372 | 2000 | 2800 | 7.38 |
NF228E | 140 | 250 | 42 | 2.4 | 2.4 | 302 | 415 | 1800 | 2400 | 9.01 |
