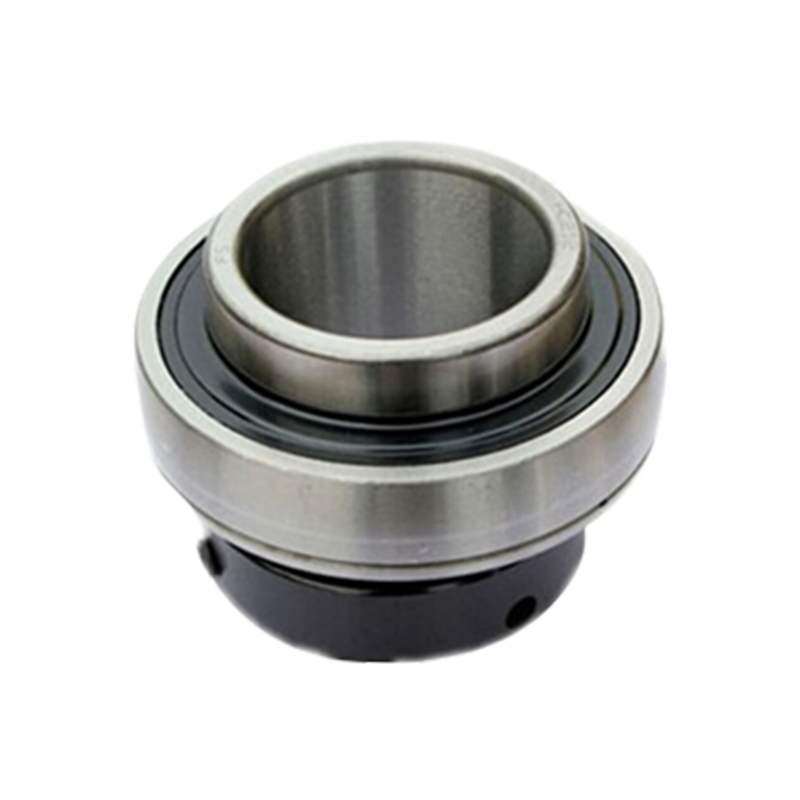

UK200 series insert bearings are a commonly used mechanical component and are widely used in various industrial equipment. Designed with efficiency and ease of installation in mind, it usually consists of a deep groove ball bearing with an outer ring and a bearing housing. The outer ring of UK200 series bearings can be easily fixed on the casing, while the inner ring can be slidably assembled on the rotating shaft to ensure a good fit between the shaft and the bearing. This series of bearings are made of high-quality materials, have good wear resistance and corrosion resistance, and can operate stably in harsh environments. Due to its standardized design, UK200 series bearings are compatible with multiple models and brands of equipment, making them easy to replace and maintain, greatly improving the reliability and service life of the equipment.
Product parameters

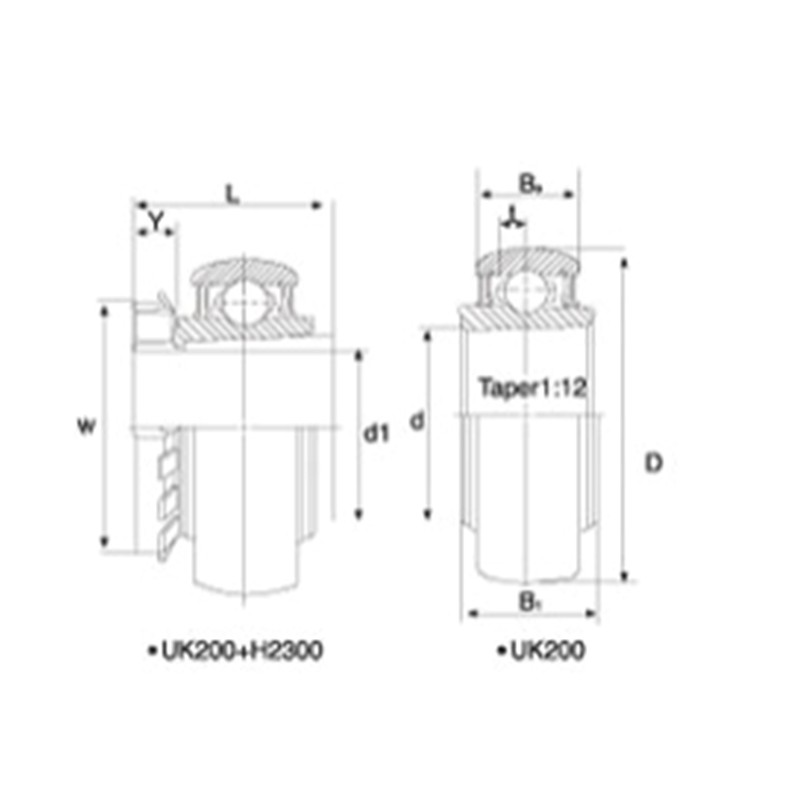

Bearing No. | d1 | Dimensions(mm) | Basic Load Rating (kN) | |||||||||
(in.) | (mm) | D | L | d | Bi | Be | T | Y | W | Dynamic | Static | |
UK205+H2305 | 20 | 52 | 35 | 25 | 25 | 17 | 4.2 | 8 | 38 | 1400 | 750 | |
UK205+HE2305 | 3/4 | 20 | 52 | 35 | 25 | 25 | 17 | 4.2 | 8 | 38 | 1400 | 750 |
UK206+H2306 | 25 | 62 | 38 | 30 | 28 | 19 | 5.2 | 8 | 45 | 1900 | 1100 | |
UK206+HS2306 | 7/8 | 25 | 62 | 38 | 30 | 28 | 19 | 5.2 | 8 | 45 | 1900 | 1100 |
UK207+H2307 | 30 | 72 | 43 | 35 | 30 | 20 | 5.6 | 9 | 52 | 2550 | 1500 | |
UK207+HS2307 | 11/8 | 30 | 72 | 43 | 35 | 30 | 20 | 5.6 | 9 | 52 | 2550 | 1500 |
UK208+H2308 | 35 | 80 | 46 | 40 | 31 | 21 | 6.2 | 10 | 58 | 2950 | 1800 | |
UK208+HE2308 | 11/4 | 35 | 80 | 46 | 40 | 31 | 21 | 6.2 | 10 | 58 | 2950 | 1800 |
UK209+H2309 | 40 | 85 | 50 | 45 | 33 | 22 | 6.3 | 11 | 65 | 3180 | 2050 | |
UK209+HA2309 | 17/16 | 40 | 85 | 50 | 45 | 33 | 22 | 6.3 | 11 | 65 | 3180 | 2050 |
UK210+H2310 | 45 | 90 | 55 | 50 | 35 | 24 | 6.5 | 12 | 70 | 3500 | 2300 | |
UK210+HA2310 | 1 11/16 | 45 | 90 | 55 | 50 | 35 | 24 | 6.5 | 12 | 70 | 3500 | 2300 |
UK211+H2311 | 50 | 100 | 59 | 55 | 37 | 25 | 7 | 12 | 75 | 4350 | 2900 | |
UK211+HS2311 | 17/8 | 50 | 100 | 59 | 55 | 37 | 25 | 7 | 12 | 75 | 4350 | 2900 |
UK212+H2312 | 55 | 110 | 62 | 60 | 39 | 27 | 7 | 13 | 80 | 4750 | 3250 | |
UK212+HA2312 | 21/16 | 55 | 110 | 62 | 60 | 39 | 27 | 7 | 13 | 80 | 4750 | 3250 |
UK213+H2313 | 60 | 120 | 65 | 65 | 40 | 28 | 8.5 | 14 | 85 | 5700 | 4000 | |
UK213+HA2313 | 23/16 | 60 | 120 | 65 | 65 | 40 | 28 | 8.5 | 14 | 85 | 5700 | 4000 |
UK215+H2315 | 65 | 130 | 73 | 75 | 45 | 30 | 9.2 | 15 | 98 | 6600 | 4950 | |
UK215+HE2315 | 21/2 | 65 | 130 | 73 | 75 | 45 | 30 | 9.2 | 15 | 98 | 6600 | 4950 |
UK216+H2316 | 70 | 140 | 78 | 80 | 48 | 33 | 9.6 | 17 | 105 | 7150 | 5400 | |
UK216+HE2316 | 23/4 | 70 | 140 | 78 | 80 | 48 | 33 | 9.6 | 17 | 105 | 7150 | 5400 |
UK217+H2317 | 75 | 150 | 82 | 85 | 50 | 35 | 10.5 | 18 | 110 | 8300 | 6350 | |
UK217+HE2317 | 3 | 75 | 150 | 82 | 85 | 50 | 35 | 10.5 | 18 | 110 | 8300 | 6350 |
UK218+H2318 | 80 | 160 | 66 | 90 | 52 | 37 | 11.1 | 18 | 120 | 9500 | 7100 | |
UK218+HS2318 | 31/8 | 80 | 160 | 66 | 90 | 52 | 37 | 11.1 | 18 | 120 | 9500 | 7100 |
