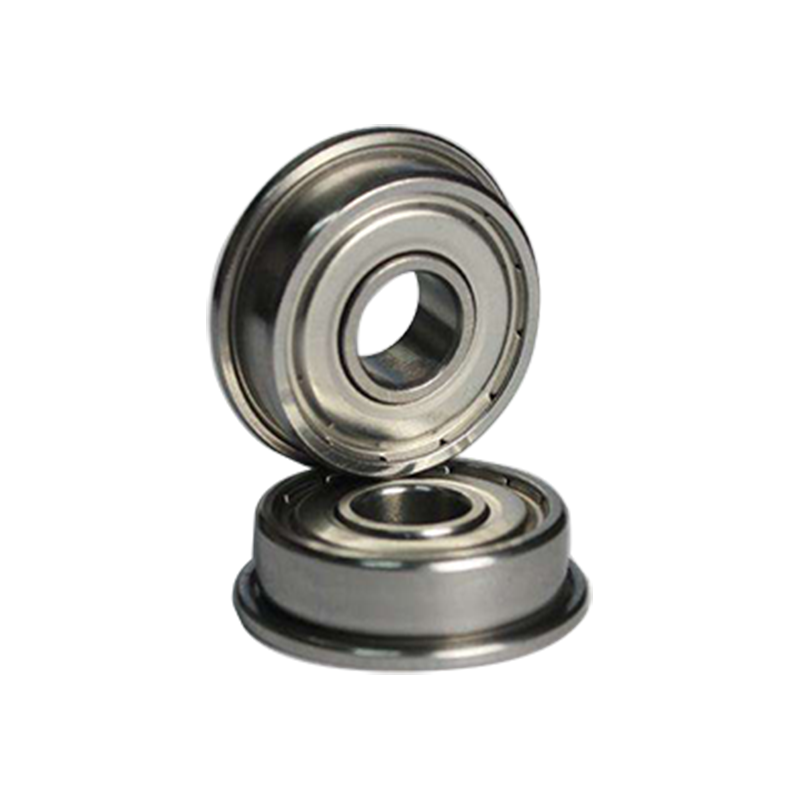

Metric Series Flange Minature Ball Bearing
Metric Series Flange Minature Ball Bearing
Metric Series Flange Minature Ball Bearing

Metric Series

Metric Series Flange Miniature Ball Bearings are a type of bearing widely used in precision machinery, especially suitable for equipment with limited space and high performance requirements. Such bearings are typically manufactured from high-quality materials to ensure their durability and stability. Its flange design provides additional support, facilitates installation, and can also effectively reduce the displacement of the bearing during operation. Key features of this mini ball bearing include a low coefficient of friction, high rotational speed capability and excellent load carrying capacity. They are suitable for a variety of applications such as power tools, robots, printers and small motors. In terms of design, Metric Series Flange Miniature Ball Bearings also pay attention to details and are usually available in different sizes and configurations to meet the needs of different equipment. Bearings are usually pre-lubricated or sealed.

Send inquiry

Product parameters

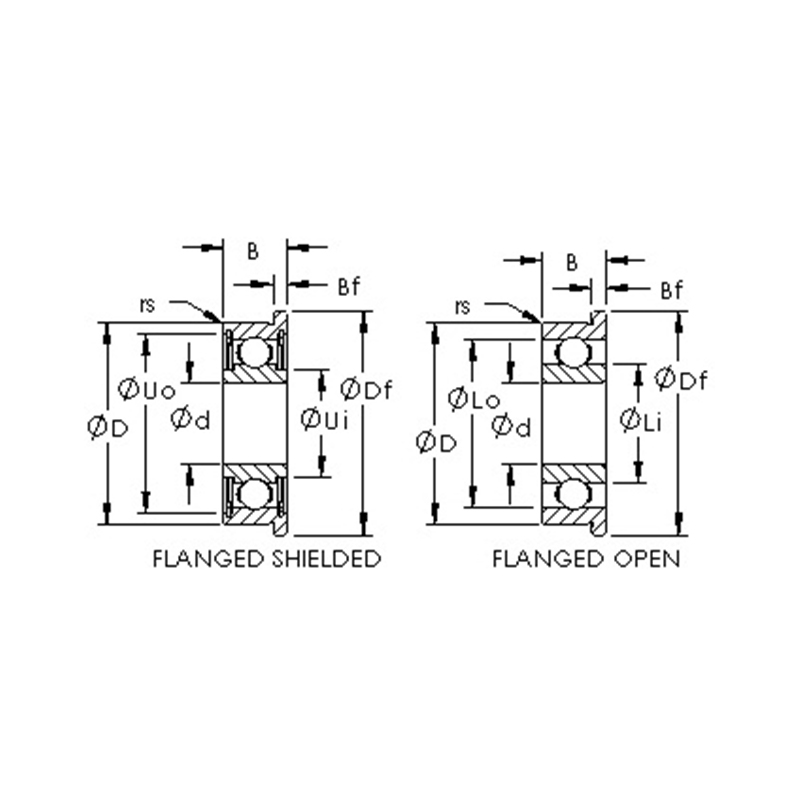

Product Number Bearing Type Dimensions（mm） Basic Load Rating （N）
d D B Df Bf Dynamic Load Rating (Cr) Static Load Rating (Cor)
F691 Open Flanged Ball Bearings 1 4 1.6 5 0.5 120 30
MF41x Open Flanged Ball Bearings 1.2 4 1.8 4.8 0.4 95 26
F681x Open Flanged Ball Bearings 1.5 4 1.2 5 0.4 95 26
F681xzz Sealed Flanged Ball Bearings 1.5 4 2 5 0.6 95 26
F691x Open Flanged Ball Bearings 1.5 5 2 6.5 0.6 144 40
F691xzz Sealed Flanged Ball Bearings 1.5 5 2.6 6.5 0.8 144 40
F601x Open Flanged Ball Bearings 1.5 6 2.5 7.5 0.6 281 79
F601xzz Sealed Flanged Ball Bearings 1.5 6 3 7.5 0.8 281 79
F682 Open Flanged Ball Bearings 2 5 1.5 6.1 0.5 144 40
F682 2RS Sealed Flanged Ball Bearings 2 5 1.5 6.1 0.5 144 40
F682zz Sealed Flanged Ball Bearings 2 5 2.3 6.1 0.6 144 40
MF52 Open Flanged Ball Bearings 2 5 2 6.2 0.6 144 40
MF52 2RS Sealed Flanged Ball Bearings 2 5 2 6.2 0.6 144 40
MF52zz Sealed Flanged Ball Bearings 2 5 2.5 6.2 0.6 144 40
F692 Open Flanged Ball Bearings 2 6 2.3 7.5 0.6 281 79
F692 2RS Sealed Flanged Ball Bearings 2 6 3 7.5 0.8 281 79
F692zz Sealed Flanged Ball Bearings 2 6 3 7.5 0.8 281 79
MF62 Open Flanged Ball Bearings 2 6 2.5 7.2 0.6 281 79
MF62 2RS Sealed Flanged Ball Bearings 2 6 2.5 7.2 0.6 281 79
MF62zz Sealed Flanged Ball Bearings 2 6 2.5 7.2 0.6 281 79
MF72 Open Flanged Ball Bearings 2 7 2.5 8.2 0.6 328 103
MF72 2RS Sealed Flanged Ball Bearings 2 7 3 8.2 0.6 328 103
MF72zz Sealed Flanged Ball Bearings 2 7 3 8.2 0.6 328 103
F602 Open Flanged Ball Bearings 2 7 2.8 8.5 0.7 328 103
F602 2RS Sealed Flanged Ball Bearings 2 7 2.8 8.5 0.7 328 103
F602zz Sealed Flanged Ball Bearings 2 7 3.5 8.5 0.9 328 103
F682x Open Flanged Ball Bearings 2.5 6 1.8 7.1 0.5 178 59
F682x 2RS Sealed Flanged Ball Bearings 2.5 6 1.8 7.1 0.5 178 59
F682xzz Sealed Flanged Ball Bearings 2.5 6 2.6 7.1 0.8 178 59
F692x Open Flanged Ball Bearings 2.5 7 2.5 8.5 0.7 328 103
F692x 2RS Sealed Flanged Ball Bearings 2.5 7 3.5 8.5 0.9 328 103
F692xzz Sealed Flanged Ball Bearings 2.5 7 3.5 8.5 0.9 328 103
MF82x Open Flanged Ball Bearings 2.5 8 2.5 9.2 0.6 180 67
MF82x 2RS Sealed Flanged Ball Bearings 2.5 8 2.5 9.2 0.6 180 67
MF82xzz Sealed Flanged Ball Bearings 2.5 8 2.5 9.2 0.6 180 67
F602x Open Flanged Ball Bearings 2.5 8 2.8 9.5 0.7 469 142
F602x 2RS Sealed Flanged Ball Bearings 2.5 8 4 9.5 0.9 469 142
F602xzz Sealed Flanged Ball Bearings 2.5 8 4 9.5 0.9 469 142
MF63 Open Flanged Ball Bearings 3 6 2 7.2 0.6 178 59
MF63 2RS Sealed Flanged Ball Bearings 3 6 2 7.2 0.6 178 59
MF63zz Sealed Flanged Ball Bearings 3 6 2.5 7.2 0.6 178 59
F683 Open Flanged Ball Bearings 3 7 2 8.1 0.5 264 90
F683 2RS Sealed Flanged Ball Bearings 3 7 3 8.1 0.8 264 90
F683zz Sealed Flanged Ball Bearings 3 7 3 8.1 0.8 264 90
MF83 Open Flanged Ball Bearings 3 8 2.5 9.2 0.6 336 113
MF83 2RS Sealed Flanged Ball Bearings 3 8 2.5 9.2 0.6 336 113
MF83zz Sealed Flanged Ball Bearings 3 8 3 9.2 0.6 336 113
F693 Open Flanged Ball Bearings 3 8 3 9.5 0.7 474 114
F693 2RS Sealed Flanged Ball Bearings 3 8 4 9.5 0.9 474 144
F693zz Sealed Flanged Ball Bearings 3 8 4 9.5 0.9 474 144
MF93 Open Flanged Ball Bearings 3 9 2.5 10.2 0.6 485 151
MF93 2R Sealed Flanged Ball Bearings 3 9 2.5 10.2 0.6 485 151
MF93zz Sealed Flanged Ball Bearings 3 9 4 10.6 0.8 485 151
F603 Open Flanged Ball Bearings 3 9 3 10.5 0.7 230 151
F603 2RS Sealed Flanged Ball Bearings 3 9 5 10.5 0.7 230 151
F603zz Sealed Flanged Ball Bearings 3 9 5 10.5 1 230 151
F623 Open Flanged Ball Bearings 3 10 4 11.5 1 536 175
F623 2RS Sealed Flanged Ball Bearings 3 10 4 11.5 1 536 175
F623zz Sealed Flanged Ball Bearings 3 10 4 11.5 1 536 175
MF74 Open Flanged Ball Bearings 4 7 2 8.2 0.6 264 92
MF74 2RS Sealed Flanged Ball Bearings 4 7 2 8.2 0.6 264 92
MF74zz Sealed Flanged Ball Bearings 4 7 2.5 8.2 0.6 217 86
MF84 Open Flanged Ball Bearings 4 8 2 9.2 0.6 336 113
MF84 2RS Sealed Flanged Ball Bearings 4 8 2 9.2 0.6 336 113
MF84zz Sealed Flanged Ball Bearings 4 8 3 9.2 0.6 336 113
F684 Open Flanged Ball Bearings 4 9 2.5 10.3 0.6 545 182
F684 2RS Sealed Flanged Ball Bearings 4 9 4 10.3 1 545 182
F684zz Sealed Flanged Ball Bearings 4 9 4 10.3 1 545 182
MF104 Open Flanged Ball Bearings 4 10 3 11.2 0.6 604 218
MF104 2RS Sealed Flanged Ball Bearings 4 10 4 11.6 0.8 604 218
MF104zz Sealed Flanged Ball Bearings 4 10 4 11.6 0.8 604 218
F694 Open Flanged Ball Bearings 4 11 4 12.5 1 814 280
F694 2RS Sealed Flanged Ball Bearings 4 11 4 12.5 1 814 280
F694zz Sealed Flanged Ball Bearings 4 11 4 12.5 1 814 280
F604 Open Flanged Ball Bearings 4 12 4 13.5 1 814 280
F604 2RS Sealed Flanged Ball Bearings 4 12 5 13.5 1 814 280
F604zz Sealed Flanged Ball Bearings 4 12 5 13.5 1 814 280
F624 Open Flanged Ball Bearings 4 13 5 15 1 1106 390
F624 2RS Sealed Flanged Ball Bearings 4 13 5 15 1 1106 390
F624zz Sealed Flanged Ball Bearings 4 13 5 15 1 1106 390
F634 Open Flanged Ball Bearings 4 16 5 18 1 1139 418
F634 2RS Sealed Flanged Ball Bearings 4 16 5 18 1 1139 418
F634zz Sealed Flanged Ball Bearings 4 16 5 18 1 1139 418
MF85 Open Flanged Ball Bearings 5 8 2 9.2 0.6 262 96
MF85 2RS Sealed Flanged Ball Bearings 5 8 2.5 9.2 0.6 185 72
MF85zz Sealed Flanged Ball Bearings 5 8 2.5 9.2 0.6 185 72
MF95 Open Flanged Ball Bearings 5 9 2.5 10.2 0.6 366 135
MF95 2RS Sealed Flanged Ball Bearings 5 9 3 10.2 0.6 366 135
MF95zz Sealed Flanged Ball Bearings 5 9 3 10.2 0.6 366 135
MF105 Open Flanged Ball Bearings 5 10 3 11.2 0.6 366 135
MF105 2RS Sealed Flanged Ball Bearings 5 10 4 11.6 0.8 366 135
MF105zz Sealed Flanged Ball Bearings 5 10 4 11.6 0.8 366 135
MF115 2RS Sealed Flanged Ball Bearings 5 11 4 12.6 0.8 609 226
MF115zz Shielded Flanged Ball Bearings 5 11 4 12.6 0.8 609 226
MF115 Open Flanged Ball Bearings 5 11 4 12.6 0.8 609 226
F685 Open Flanged Ball Bearings 5 11 3 12.5 0.8 609 226
F685 2RS Sealed Flanged Ball Bearings 5 11 5 12.5 1 609 226
F685zz Sealed Flanged Ball Bearings 5 11 5 12.5 1 609 226
F695 Open Flanged Ball Bearings 5 13 4 15 1 916 346
F695 2RS Sealed Flanged Ball Bearings 5 13 4 15 1 916 346
F695zz Sealed Flanged Ball Bearings 5 13 4 15 1 916 346
F605 Open Flanged Ball Bearings 5 14 5 16 1 1130 406
F605 2RS Sealed Flanged Ball Bearings 5 14 5 16 1 1130 406
F605zz Sealed Flanged Ball Bearings 5 14 5 16 1 1130 406
F625 Open Flanged Ball Bearings 5 16 5 18 1 1470 540
F625 2RS Sealed Flanged Ball Bearings 5 16 5 18 1 1470 540
F625zz Sealed Flanged Ball Bearings 5 16 5 18 1 1470 540
F635 Open Flanged Ball Bearings 5 19 6 22 1.5 1986 717
F635 2RS Sealed Flanged Ball Bearings 5 19 6 22 1.5 1986 717
F635zz Sealed Flanged Ball Bearings 5 19 6 22 1.5 1986 717
MF106 Open Flanged Ball Bearings 6 10 2.5 11.2 0.6 422 174
MF106 2RS Sealed Flanged Ball Bearings 6 10 3 11.2 0.6 422 174
MF106zz Sealed Flanged Ball Bearings 6 10 3 11.2 0.6 422 174
MF126 Open Flanged Ball Bearings 6 12 3 13.2 0.6 609 236
MF126 2RS Sealed Flanged Ball Bearings 6 12 4 13.6 0.8 609 236
MF126zz Sealed Flanged Ball Bearings 6 12 4 13.6 0.8 609 236
F686 Open Flanged Ball Bearings 6 13 3.5 15 1 920 354
F686 2RS Sealed Flanged Ball Bearings 6 13 5 15 1.1 920 354
F686zz Sealed Flanged Ball Bearings 6 13 5 15 1.1 920 354
F696 Open Flanged Ball Bearings 6 15 5 17 1.2 1139 418
F696 2RS Sealed Flanged Ball Bearings 6 15 5 17 1.2 1139 418
F696zz Sealed Flanged Ball Bearings 6 15 5 17 1.2 1139 418
F606 Open Flanged Ball Bearings 6 17 6 19 1.2 1924 677
F606 2RS Sealed Flanged Ball Bearings 6 17 6 19 1.2 1924 677
F606zz Sealed Flanged Ball Bearings 6 17 6 19 1.2 1924 677
F626 Open Flanged Ball Bearings 6 19 6 22 1.5 1986 717
F626 2RS Sealed Flanged Ball Bearings 6 19 6 22 1.5 1986 717
F626zz Sealed Flanged Ball Bearings 6 19 6 22 1.5 1986 717
MF117 Open Flanged Ball Bearings 7 11 2.5 12.2 0.6 387 162
MF117 2RS Sealed Flanged Ball Bearings 7 11 3 12.2 0.6 387 162
MF117zz Sealed Flanged Ball Bearings 7 11 3 12.2 0.6 387 162
MF137 Open Flanged Ball Bearings 7 13 3 14.2 0.6 460 221
MF137 2RS Sealed Flanged Ball Bearings 7 13 4 14.6 0.8 460 221
MF137zz Sealed Flanged Ball Bearings 7 13 4 14.6 0.8 460 221
F687 Open Flanged Ball Bearings 7 14 3.5 16 1 997 410
F687 2RS Sealed Flanged Ball Bearings 7 14 5 16 1.1 997 410
F687zz Sealed Flanged Ball Bearings 7 14 5 16 1.1 997 410
F697 Open Flanged Ball Bearings 7 17 5 19 1.2 1364 575
F697 2RS Sealed Flanged Ball Bearings 7 17 5 19 1.2 1364 575
F697zz Sealed Flanged Ball Bearings 7 17 5 19 1.2 1364 575
F607 Open Flanged Ball Bearings 7 19 6 22 1.5 1986 717
F607 2RS Sealed Flanged Ball Bearings 7 19 6 22 1.5 1986 717
F607zz Sealed Flanged Ball Bearings 7 19 6 22 1.5 1986 717
F627 Open Flanged Ball Bearings 7 22 7 25 1.5 2794 1103
F627 2RS Sealed Flanged Ball Bearings 7 22 7 25 1.5 2794 1103
F627zz Sealed Flanged Ball Bearings 7 22 7 25 1.5 2794 1103
MF128 Open Flanged Ball Bearings 8 12 2.5 13.2 0.6 462 219
MF128 2RS Sealed Flanged Ball Bearings 8 12 3.5 13.6 0.8 462 219
MF128zz Sealed Flanged Ball Bearings 8 12 3.5 13.6 0.8 462 219
MF148 Open Flanged Ball Bearings 8 14 3.5 15.6 0.8 695 309
MF148 2RS Sealed Flanged Ball Bearings 8 14 4 15.6 0.8 695 309
MF148zz Sealed Flanged Ball Bearings 8 14 4 15.6 0.8 695 309
F688 Open Flanged Ball Bearings 8 16 4 18 1 1064 474
F688 2RS Sealed Flanged Ball Bearings 8 16 5 18 1.1 1064 474
F688zz Sealed Flanged Ball Bearings 8 16 5 18 1.1 1064 474
F698 Open Flanged Ball Bearings 8 19 6 22 1.5 1902 734
F698 2RS Sealed Flanged Ball Bearings 8 19 6 22 1.5 1902 734
F698zz Sealed Flanged Ball Bearings 8 19 6 22 1.5 1902 734
F608 Open Flanged Ball Bearings 8 22 7 25 1.5 2799 1103
F608 2RS Sealed Flanged Ball Bearings 8 22 7 25 1.5 2799 1103
F608zz Sealed Flanged Ball Bearings 8 22 7 25 1.5 2799 1103
F679 Open Flanged Ball Bearings 9 14 3 15.5 0.8 781 374
F679 2RS Sealed Flanged Ball Bearings 9 14 4.5 15.5 0.8 781 374
F679zz Sealed Flanged Ball Bearings 9 14 4.5 15.5 0.8 781 374
F689 Open Flanged Ball Bearings 9 17 4 19 1 1128 534
F689 2RS Sealed Flanged Ball Bearings 9 17 5 19 1.1 1128 534
F689zz Sealed Flanged Ball Bearings 9 17 5 19 1.1 1128 534
F699 Open Flanged Ball Bearings 9 20 6 23 1.5 2097 865
F699 2RS Sealed Flanged Ball Bearings 9 20 6 23 1.5 2097 865
F699zz Sealed Flanged Ball Bearings 9 20 6 23 1.5 2097 865
F609 Open Flanged Ball Bearings 9 24 7 27 1.5 2853 1155
F609 2RS Sealed Flanged Ball Bearings 9 24 7 27 1.5 2853 1155
F609zz Sealed Flanged Ball Bearings 9 24 7 27 1.5 2853 1155

about Yinin

Shanghai Yinin Bearing and Transmission Company was founded in 2009 and has over 20 years of experience in the bearing field. We are China Metric Series Flange Minature Ball Bearing manufacturers and offer custom Metric Series Flange Minature Ball Bearing factory. Since 1999, starting from representing bearing manufacturers in China, we have exported different kinds of bearings. Nowadays we are developing one completed sales and manufacturing bearings group.
Company Profile
Get In Touch

Industry Applications

Agriculture

Bearings also play a very important role in agricultural machinery. They are used to support rotatin...

Automotive

Bearings are widely used in automobiles. They are the key supporting and rotating parts of many movi...

Medical Devices

Used for support, height, angle, joint, and rotating parts of medical equipment.

Home Appliances

Used for support, rotation, motor and compressor parts of household appliances.

Automation

Used for rotation and movement of support and guide parts of automation equipment

Construction

In building structures, bearings can be used to connect different structural components.

Food & Beverage

In the production process of food and beverages, pumps are needed to transport liquids and compresso...

Aerospace

Bearings are used in aircraft and spacecraft engines to support rotating components such as turbines...

WHAT’S NEWS

read more

2025-01-09

22200 Series Spherical Roller Bearings Launched: Unlock...
22200 series spherical roller bearings adopt optimized material technology and internal structure design, especially the geometry of raceways and rollers has been improved. Compared with conventional ...

2025-01-02

The Versatile 6000 Series Deep Groove Ball Bearing
The 6000 Series Deep Groove Ball Bearing is a cornerstone in the world of mechanical engineering, celebrated for its versatility, durability, and efficiency. Designed to meet a wide range of industria...

2024-12-17

Analysis of the friction coefficient of needle roller b...
Overview of the friction coefficient of needle roller bearingsAs the name suggests, the rolling element of needle roller bearings is a slender needle roller. This design enables the bearing to provide...

contact us

SUBMIT

Contact Us

Tel: +86-13916786238

Fax: +86-21-68551629

Email: [email protected]

Add: HuangXu Industrial Area, DanTu, ZhenJiang city, JiangSu Province, China

Industries

Agriculture
Automotive
Medical Devices
Home Appliances
Automation
Construction
Food & Beverage
Aerospace
Transportation
Mining
New Energy

Resources

Download
Agent
FAQ

Company

Company Profile
Manufacturing

Social

Copyright © Shanghai Yinin Bearing and Transmission Company Rights Reserved. Custom Metric Series Flange Minature Ball Bearing Manufacturers
technical support
