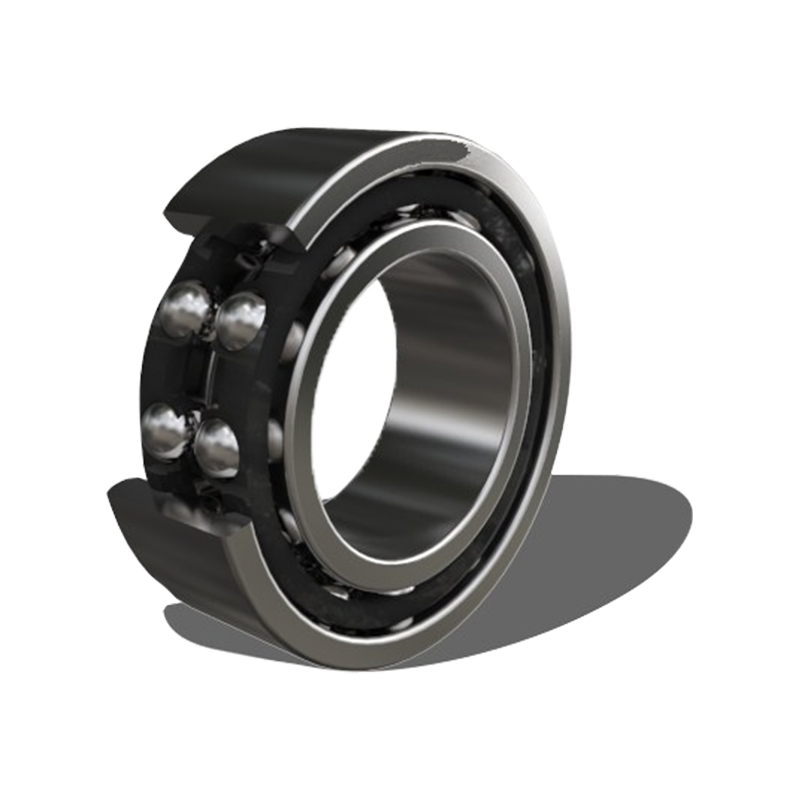

The 5200 series double row angular contact ball bearing is a high-performance rolling bearing, mainly used to bear radial load and axial load. This kind of bearing consists of an inner ring, an outer ring and two rows of rolling elements (balls), and has high rigidity and load-bearing capacity. Its design allows for larger contact angles and is suitable for high-speed and high-load applications. Due to its double-row structure, 5200 series bearings can better distribute loads during operation, reduce wear and extend service life. Widely used in automobiles, machine tools, aerospace and other fields.
Product parameters
| Designation | Principal dimensions(mm) | Basic load ratings(KN) | Basic load ratings(kgf) | Limiting Speed (rpm) | Distance of action point | Installation dimensions(mm) | Weight | ||||||||
| d | D | B | r(min) | Cr | Cor | Cr | Cor | Grease | Oil | a0(mm) | da(min) | Da(max) | ra(max) | (kg) | |
| 5200 | 10 | 30 | 14.3 | 0.6 | 7150 | 3900 | 730 | 400 | 17000 | 22000 | 14.5 | 15 | 25 | 0.6 | 0.05 |
| 5201 | 12 | 32 | 15.9 | 0.6 | 10500 | 5800 | 1070 | 590 | 15000 | 20000 | 16.7 | 17 | 27 | 0.6 | 0.06 |
| 5202 | 15 | 35 | 15.9 | 0.6 | 11700 | 7050 | 1190 | 715 | 13000 | 17000 | 18.3 | 20 | 30 | 0.6 | 0.07 |
| 5203 | 17 | 40 | 17.5 | 0.6 | 14600 | 9050 | 1490 | 920 | 11000 | 15000 | 20.8 | 22 | 35 | 0.6 | 0.09 |
| 5204 | 20 | 47 | 20.6 | 1 | 19600 | 12400 | 2000 | 1270 | 10000 | 13000 | 24.3 | 26 | 41 | 1 | 0.12 |
| 5205 | 25 | 52 | 20.6 | 1 | 21300 | 14700 | 2170 | 1500 | 8500 | 11000 | 26.8 | 31 | 46 | 1 | 0.19 |
| 5206 | 30 | 62 | 23.8 | 1 | 29600 | 21100 | 3000 | 2150 | 7100 | 9500 | 31.6 | 36 | 56 | 1 | 0.29 |
| 5207 | 35 | 72 | 27 | 1.1 | 39000 | 28700 | 4000 | 2920 | 6300 | 8000 | 36.6 | 42 | 65 | 1 | 0.43 |
| 5208 | 40 | 80 | 30.2 | 1.1 | 44000 | 33500 | 4500 | 3400 | 5600 | 7100 | 41.5 | 47 | 73 | 1 | 0.57 |
| 5209 | 45 | 85 | 30.2 | 1.1 | 49500 | 38000 | 5050 | 3900 | 5000 | 6700 | 43.4 | 52 | 78 | 1 | 0.62 |
| 5210 | 50 | 90 | 30.2 | 1.1 | 53000 | 43500 | 5400 | 4400 | 4800 | 6000 | 45.9 | 57 | 83 | 1 | 0.67 |
| 5211 | 55 | 100 | 33.3 | 1.5 | 56000 | 49000 | 5700 | 5000 | 4300 | 5600 | 50.1 | 64 | 91 | 1.5 | 0.96 |
| 5212 | 60 | 110 | 36.5 | 1.5 | 69000 | 62000 | 7050 | 6300 | 3800 | 5000 | 56.5 | 69 | 101 | 1.5 | 1.35 |
| 5213 | 65 | 120 | 38.1 | 1.5 | 76500 | 69000 | 7800 | 7050 | 3600 | 4500 | 59.7 | 74 | 111 | 1.5 | 1.65 |
| 5214 | 70 | 125 | 39.7 | 1.5 | 94000 | 82000 | 9600 | 8400 | 3400 | 4500 | 63.8 | 79 | 116 | 1.5 | 1.8 |
| 5215 | 75 | 130 | 41.3 | 1.5 | 93500 | 83000 | 9550 | 8500 | 3200 | 4300 | 66.1 | 84 | 121 | 1.5 | 1.9 |
| 5216 | 80 | 140 | 44.4 | 2 | 99000 | 93000 | 10100 | 9500 | 3000 | 3800 | 69.6 | 90 | 130 | 2 | 2.5 |
| 5217 | 80 | 150 | 49.2 | 2 | 116000 | 110000 | 11800 | 11200 | 2800 | 3600 | 75.3 | 95 | 140 | 2 | 3.4 |
