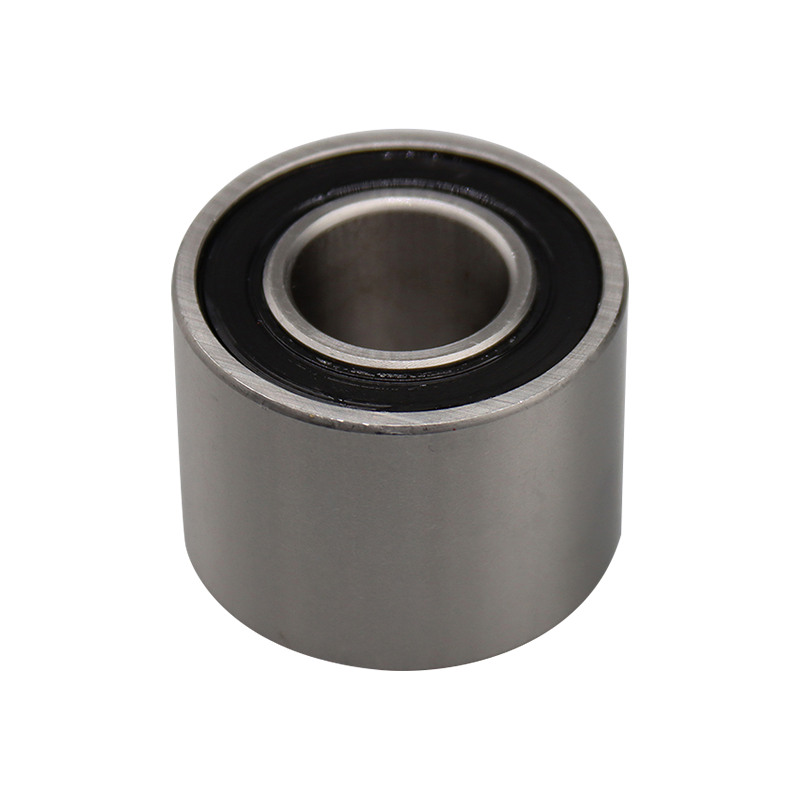

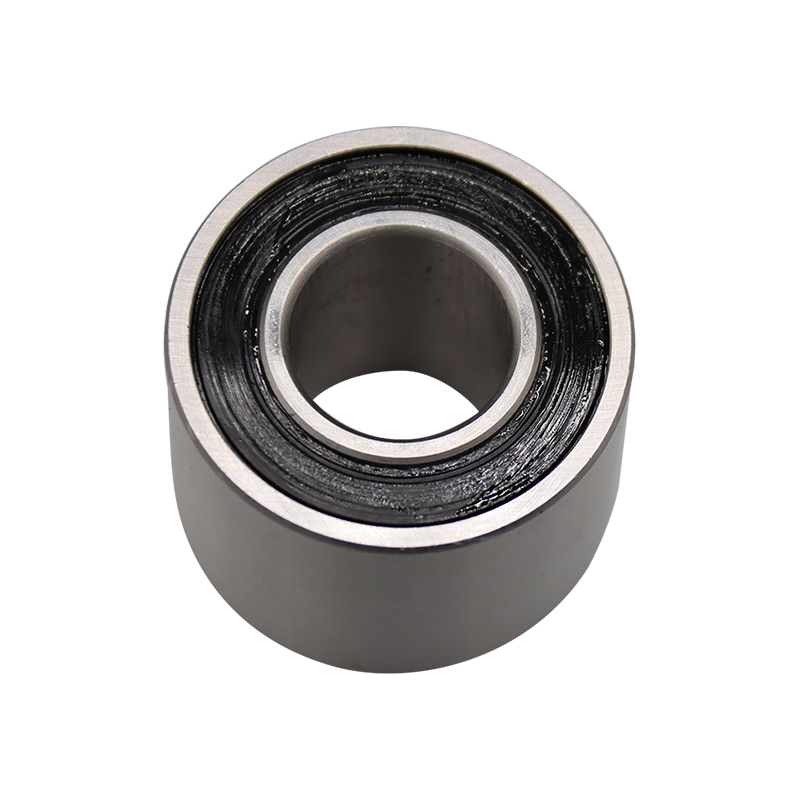

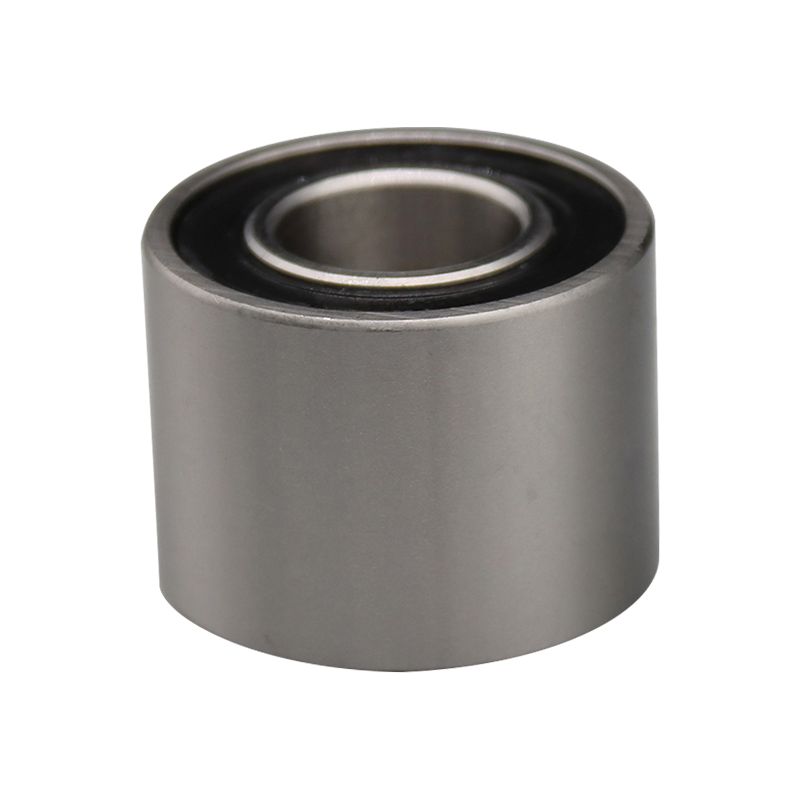

3000A-2RS series double row angular contact ball bearings are high performance bearings designed to withstand simultaneous radial and axial loads. Its unique dual-row design provides higher load-bearing capacity and stability and is suitable for use in high-load and high-speed applications. This series of bearings are made of high-quality materials and are wear-resistant and corrosion-resistant to ensure long-term and reliable operation. The contact angle of the inner and outer rings of the bearing is precisely designed to effectively distribute the load, thereby extending the service life. In addition, the 2RS seal design effectively prevents contaminants from entering the inside of the bearing and reduces maintenance frequency. This kind of bearing is widely used in the automotive industry, machine tools, wind power generation and other mechanical equipment. It has excellent performance and stability and can meet the needs of various working conditions.
Product parameters

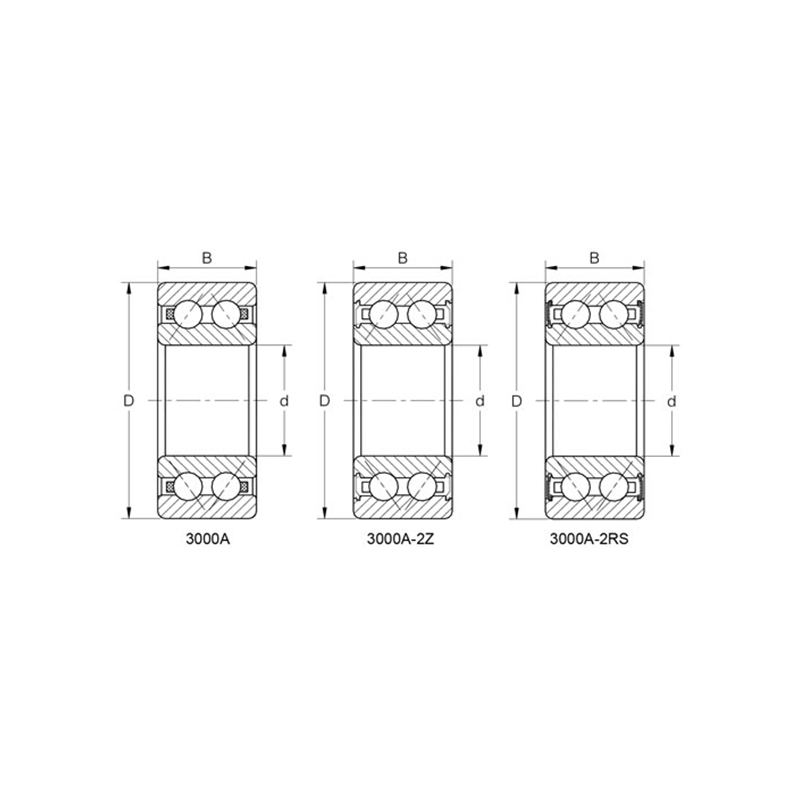

| Designation | Principal Dimensions(mm) | Basic Load Ratings(KN) | Limited Speed(rpm) | Weight | ||||
| d | D | B | Dynamic(Cr) | Static(Cor) | Grease | Oil | (kg) | |
| 3000A-2RS | 10 | 26 | 12 | 5.5 | 3.2 | 18000 | - | 0.022 |
| 3200A-2RS | 10 | 30 | 14.3 | 7.5 | 4.3 | 16000 | - | 0.05 |
| 3001A-2RS | 12 | 28 | 12 | 6.1 | 3.7 | 17000 | - | 0.025 |
| 3201A-2RS | 12 | 32 | 15.9 | 9 | 4.9 | 14000 | - | 0.058 |
| 3002A-2RS | 15 | 32 | 13 | 8.5 | 5.4 | 14500 | - | 0.036 |
| 3202A-2RS | 15 | 35 | 15.9 | 10 | 6 | 11000 | - | 0.066 |
| 3302A-2RS | 15 | 42 | 19 | 14 | 8 | 10000 | - | 0.13 |
| 3003A-2RS | 17 | 35 | 14 | 9 | 6 | 12500 | - | 0.042 |
| 3203A-2RS | 17 | 40 | 17.5 | 12.7 | 7.8 | 9000 | - | 0.096 |
| 3303A-2RS | 17 | 47 | 22.2 | 17.3 | 10.4 | 8000 | - | 0.18 |
| 3804A-2RS | 20 | 32 | 10 | 4.9 | 3.9 | 13000 | - | 0.02 |
| 3904A-2RS | 20 | 37 | 13 | 9.3 | 6.6 | 12000 | - | 0.046 |
| 3004A-2RS | 20 | 42 | 16 | 14.2 | 9.6 | 11000 | - | 0.08 |
| 3204A-2RS | 20 | 47 | 20.6 | 19 | 12.1 | 8000 | - | 0.16 |
| 3304A-2RS | 20 | 52 | 22.2 | 19 | 12.3 | 8500 | - | 0.22 |
| 3805A-2RS | 25 | 37 | 10 | 5.5 | 4.9 | 11500 | - | 0.025 |
| 3905A-2RS | 25 | 42 | 13 | 9.6 | 7.5 | 11000 | - | 0.062 |
| 3005A-2RS | 25 | 47 | 16 | 15.2 | 11 | 9500 | - | 0.1 |
| 3205A-2RS | 25 | 52 | 20.6 | 20.6 | 13.9 | 7500 | - | 0.19 |
| 3305A-2RS | 25 | 62 | 25.4 | 27.6 | 17.8 | 7500 | - | 0.367 |
| 3806A-2RS | 30 | 42 | 10 | 5.7 | 5.6 | 10000 | - | 0.03 |
| 3906A-2RS | 30 | 47 | 13 | 9.9 | 8.3 | 9500 | - | 0.095 |
| 3006A-2RS | 30 | 55 | 19 | 20.3 | 15.5 | 8000 | - | 0.16 |
| 3206A-2RS | 30 | 62 | 23.8 | 25.7 | 18.5 | 6300 | - | 0.31 |
| 3306A-2RS | 30 | 72 | 30.2 | 37.2 | 25.9 | 6000 | - | 0.59 |
| 3807A-2RS | 35 | 47 | 10 | 6.1 | 6.2 | 8500 | - | 0.035 |
| 3907A-2RS | 35 | 55 | 15 | 12.9 | 11.3 | 8000 | - | 0.138 |
| 3007A-2RS | 35 | 62 | 20 | 24.2 | 20.4 | 6500 | - | 0.24 |
| 3207A-2RS | 35 | 72 | 27 | 30.4 | 23.5 | 5600 | - | 0.51 |
| 3307A-2RS | 35 | 80 | 34.9 | 46.1 | 35.3 | 5300 | - | 0.82 |
| 3808A-2RS | 40 | 52 | 10 | 6.4 | 6.9 | 7000 | - | 0.04 |
| 3908A-2RS | 40 | 62 | 16 | 17.4 | 15.8 | 6500 | - | 0.158 |
| 3008A-2RS | 40 | 68 | 21 | 24.5 | 20.8 | 6000 | - | 0.279 |
| 3208A-2RS | 40 | 80 | 30.2 | 40.8 | 30.2 | 5300 | - | 0.64 |
| 3308A-2RS | 40 | 90 | 36.5 | 54.9 | 40.1 | 4800 | - | 1.06 |
| 3809A-2RS | 45 | 58 | 10 | 6.7 | 7.7 | 6300 | - | 0.055 |
| 3909A-2RS | 45 | 68 | 16 | 17.9 | 17.2 | 6000 | - | 0.183 |
| 3009A-2RS | 45 | 75 | 23 | 39.3 | 36.4 | 5600 | - | 0.364 |
| 3209A-2RS | 45 | 85 | 30.2 | 42.8 | 34.5 | 4800 | - | 0.72 |
| 3309A-2RS | 45 | 100 | 39.7 | 72.1 | 52 | 4300 | - | 1.24 |
| 3810A-2RS | 50 | 65 | 12 | 7 | 8.4 | 6000 | - | 0.075 |
| 3910A-2RS | 50 | 72 | 16 | 19.1 | 19.6 | 5800 | - | 0.189 |
| 3010A-2RS | 50 | 80 | 23 | 42.3 | 41.9 | 5300 | - | 0.395 |
| 3210A-2RS | 50 | 90 | 30.2 | 43.2 | 35.3 | 4500 | - | 0.78 |
| 3310A-2RS | 50 | 110 | 44.4 | 84.9 | 62.6 | 4000 | - | 1.96 |
| 3811A-2RS | 55 | 72 | 13 | 12.8 | 14.4 | 5500 | - | 0.01 |
| 3911A-2RS | 55 | 80 | 19 | 20 | 21.7 | 5300 | - | 0.282 |
| 3011A-2RS | 55 | 90 | 26 | 43.7 | 44.7 | 4800 | - | 0.581 |
| 3211A-2RS | 55 | 100 | 33.3 | 53.9 | 47.2 | 4000 | - | 1.03 |
| 3311A-2RS | 55 | 120 | 49.2 | 106.3 | 82 | 3600 | - | 2.4 |
| 3812A-2RS | 60 | 78 | 14 | 13.6 | 16.2 | 5000 | - | 0.14 |
| 3912A-2RS | 60 | 85 | 19 | 21 | 23.8 | 4800 | - | 0.303 |
| 3012A-2RS | 60 | 95 | 26 | 47.2 | 53.4 | 4400 | - | 0.621 |
| 3212A-2RS | 60 | 110 | 36.5 | 61.3 | 52.6 | 3800 | - | 1.4 |
| 3312A-2RS | 60 | 130 | 54 | 121.4 | 95.1 | 3400 | - | 3.24 |
| 3813A-2RS | 65 | 85 | 15 | 15.1 | 18.3 | 4700 | - | 0.182 |
| 3913A-2RS | 65 | 90 | 19 | 21.4 | 24.8 | 4500 | - | 0.324 |
| 3013A-2RS | 65 | 100 | 26 | 49.5 | 59.2 | 4000 | - | 0.661 |
| 3213A-2RS | 65 | 120 | 38.1 | 73.4 | 66.6 | 3400 | - | 1.84 |
| 3313A-2RS | 65 | 140 | 58.7 | 137.5 | 109.6 | 2800 | - | 3.9 |
| 3814A-2RS | 70 | 90 | 15 | 18 | 21.9 | 4400 | - | 0.19 |
| 3914A-2RS | 70 | 100 | 23 | 25.8 | 30 | 4000 | - | 0.516 |
| 3014A-2RS | 70 | 110 | 30 | 54.2 | 58.9 | 3600 | - | 0.95 |
| 3214A-2RS | 70 | 125 | 39.7 | 80.5 | 73.8 | 3200 | - | 1.98 |
| 3314A-2RS | 70 | 150 | 63.5 | 154.5 | 125.1 | 2800 | - | 4.7 |
| 3815A-2RS | 75 | 95 | 15 | 16 | 20.3 | 4200 | - | 0.224 |
| 3915A-2RS | 75 | 105 | 23 | 26 | 31.3 | 3800 | - | 0.546 |
| 3015A-2RS | 75 | 115 | 30 | 57.7 | 66.5 | 3400 | - | 1.003 |
| 3215A-2RS | 75 | 130 | 41.3 | 87.9 | 81.4 | 3000 | - | 2.01 |
| 3315A-2RS | 75 | 160 | 68.3 | 171.4 | 134.8 | 2600 | - | 6.3 |
| 3216A-2RS | 80 | 140 | 44.4 | 103.7 | 97.5 | 2800 | - | 2.48 |
| 3316A-2RS | 80 | 170 | 68.3 | 190.1 | 151.7 | 2400 | - | 7.21 |
| 3217A-2RS | 85 | 150 | 49.2 | 111.8 | 106.4 | 2400 | - | 3.2 |
| 3317A-2RS | 85 | 180 | 73 | 189.4 | 234.5 | 2200 | - | 8.3 |
| 3218A-2RS | 90 | 160 | 52.4 | 111.8 | 106.4 | 2400 | - | 4.5 |
