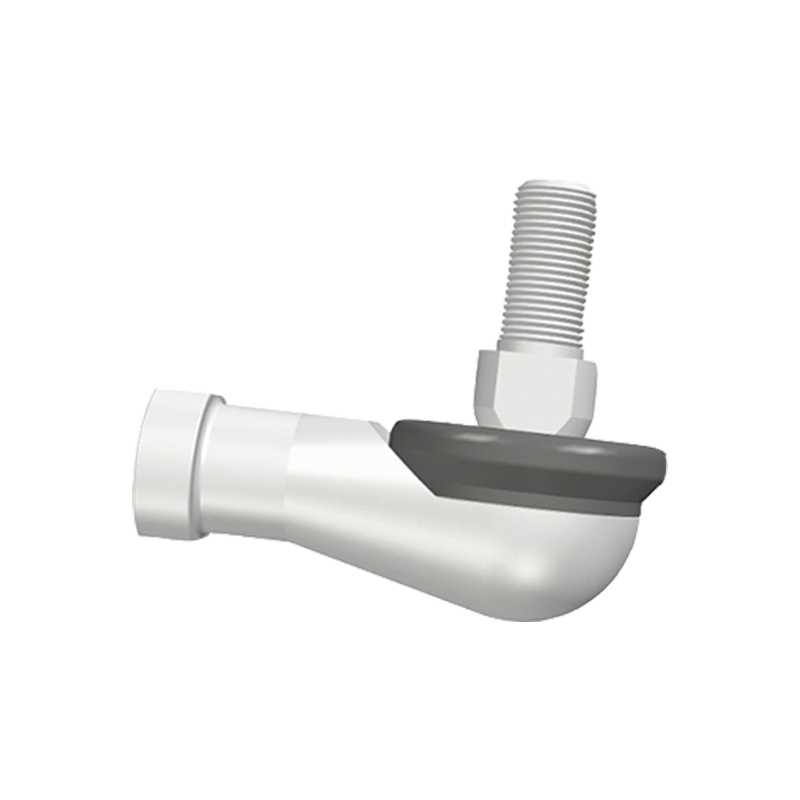

SQY...-RS series ball joint rod end bearings are high-performance mechanical components that are widely used in various industrial equipment. This bearing has a spherical joint design that can provide flexible movement at multiple angles, making it particularly suitable for applications requiring high loads and dynamic movement. The bearings of the SQY...-RS series are made of high-quality materials and have excellent wear resistance and corrosion resistance, ensuring long-term stable operation. Its design features include low friction, easy installation and maintenance, and is suitable for applications such as robotic arms, drive systems and agricultural machinery. In addition, SQY...-RS series bearings are also available in a variety of sizes and specifications to meet the needs of different customers and are ideal for efficient motion transmission.
Product parameters

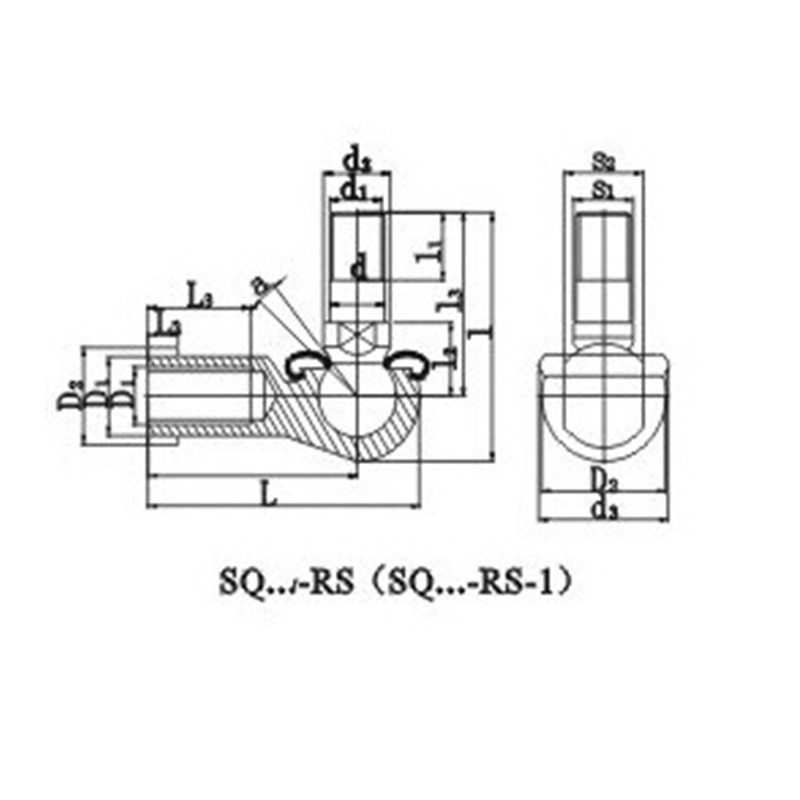

| Designation | Dimensions（mm） | Static load ratings (KN) | Weight(Kg) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | d2 | d3 | l | l1 | l2 | l3 | S1 | L | L1 | L2 | L3 | D1 | D2 | D3 | S2 | α° ≈ | |||
| SQY4-RS | 10-32 | 9 | 19 | 29 | 8 | 10 | 21 | 7 | 35 | 27 | 4 | 14 | 9 | 11 | 16 | 9 | 25 | 22 | 0.026 |
| SQY6-RS | 1/4-28 | 10 | 20 | 35.5 | 11 | 11 | 26 | 8 | 40 | 30.5 | 5 | 14 | 10 | 13 | 19 | 11 | 25 | 3.5 | 0.039 |
| SQY7-RS | 5/16-24 | 12 | 24 | 42.5 | 12 | 14 | 31 | 10 | 48 | 36.5 | 5 | 17 | 12.5 | 16 | 23 | 14 | 25 | 6.6 | 0.068 |
| SQY9-RS | 3/8-24 | 14 | 30 | 50.5 | 15 | 17 | 37 | 11 | 57 | 43.5 | 6.5 | 21 | 15 | 19 | 27 | 17 | 25 | 10 | 0.112 |
| SQY11-RS | 7/16-20 | 17 | 32 | 57.5 | 17 | 19 | 42 | 15 | 66 | 50.5 | 6.5 | 25 | 17.5 | 22 | 31 | 19 | 25 | 16 | 0.164 |
| SQY12-RS | 1/2-20 | 19 | 38 | 73.5 | 22 | 21.5 | 56 | 17 | 75 | 57.5 | 8 | 26 | 20 | 25 | 35 | 22 | 25 | 19 | 0.254 |
| SQY15-RS | 5/8-18 | 22 | 44 | 79.5 | 23 | 23.5 | 60 | 19 | 84 | 64.5 | 8 | 32 | 22 | 27 | 39 | 22 | 20 | 26 | 0.336 |
| SQY19-RS | 3/4-16 | 23 | 45 | 90 | 25 | 26.5 | 68 | 20 | 93 | 71 | 10 | 34 | 25 | 31 | 44 | 27 | 20 | 33 | 0.464 |
