SQG... Series

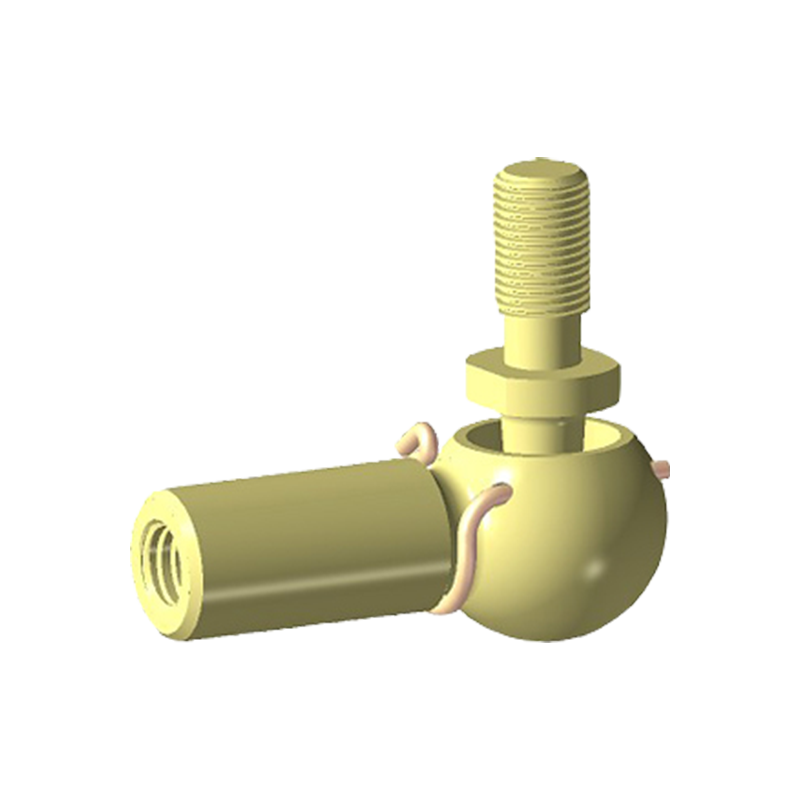

The SQG series ball joint rod end bearing is a high-performance mechanical connection component that is widely used in various industrial and mechanical equipment. Made of high-quality materials, this bearing has excellent wear and corrosion resistance and is able to function normally under extreme conditions. The design of the SQG series gives it excellent load-bearing capacity and flexible range of motion, suitable for a variety of motion forms, such as rotation, swing and axial movement. In addition, the structure of the ball joint can effectively reduce friction and improve transmission efficiency. SQG series ball joint rod end bearings are widely used in automobiles, aerospace, machinery manufacturing and other fields, and are key components to ensure the stability and reliability of mechanical systems.

Send inquiry

Product parameters

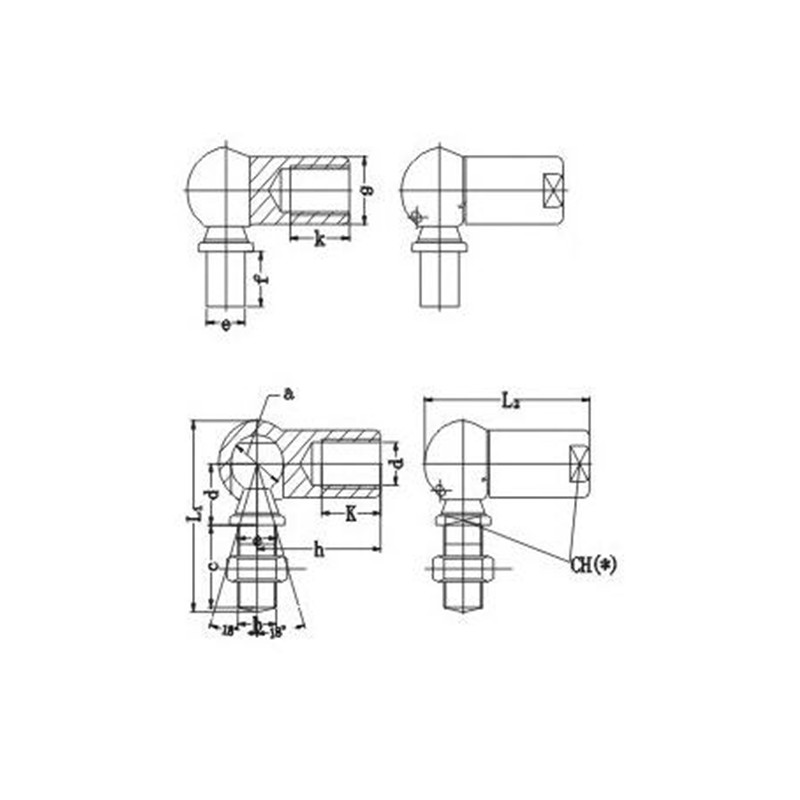

Designation Dimensions(mm) Static load ratings (KN) Weight(Kg)
d1 d2 d3 l1 l2 l3 S L1 D1 D3 α° ≈
SQG5 M5 8 8 10.2 10.2 9 7 22 8 12.8 10 2.2 0.015
SQG6 M6 10 10 11.5 12.5 11 8 25 10 14.8 15 3.5 0.025
SQG8 MR 14 13 14 16.5 13 11 30 13 193 15 6.6 0.053
SQG10 M10 16 16 15.5 20 16 13 35 16 24 15 10 0.104
SQG12 M12 16 16 15.5 20 16 13 35 16 24 15 16 0.104
SQG14 M14×1.5 19 19 21.5 28 20 16 45 22 30 15 19 0.221
SQG14/B5 M14×2 19 19 21.5 28 20 16 45 22 30 15 26 0.221
