SQD Series Ball Joint Rod End Bearing - Precision Motion Control Components

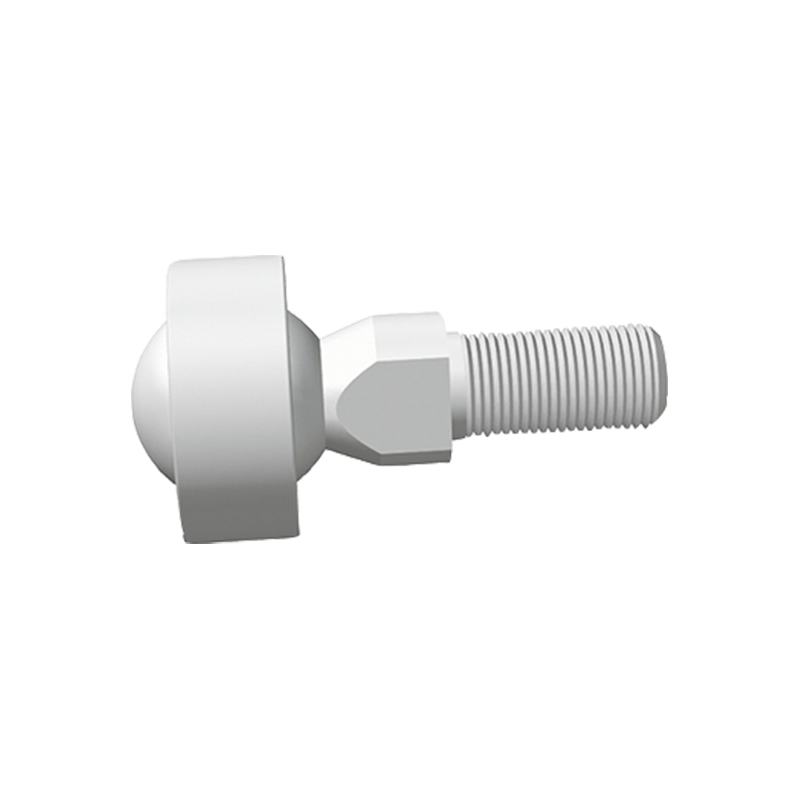

The SQD series ball joint rod end bearing is a mechanical component designed for transmitting static and dynamic loads in oscillating, rotating, and tilting movements. This series is engineered to meet specific industrial requirements for stability and consistent performance across various applications, including robotics, automation, and hydraulic systems.

Product Features and Engineering

• Structural Composition: The body is constructed from alloy steel with a hardened raceway, and the ball is made from chrome steel. This material combination is selected for its load-bearing capacity and resistance to wear under operational conditions.
• Lubrication and Maintenance: An integrated grease nipple facilitates lubrication, which is essential for reducing friction and extending the service life of the bearing, particularly in continuous-duty applications.
• Design Specifications: The compact design of the SQD series allows for effective use in space-constrained assemblies. The bearing is manufactured to industry standards, ensuring dimensional compatibility and facilitating integration into existing systems.

These specifications are based on standard test conditions. Performance may vary depending on application-specific factors such as load type, speed, and environmental conditions. For a detailed technical data sheet, please contact our support team.

Application and Integration

The SQD series ball joint rod end bearings are suitable for use in motion control and linkage systems. The robust construction makes them appropriate for applications in manufacturing automation and agricultural machinery where reliable mechanical linkages are required.

Frequently Asked Procurement Questions

1. How does the SQD series ball joint compare to spherical plain bearings in terms of load handling and installation?

While both components facilitate movement, the SQD series ball joint is engineered with a threaded shank for direct integration into linkage rods, simplifying assembly in applications requiring tensile or compressive forces. Spherical plain bearings, conversely, are typically press-fit into housings and are better suited for accommodating angular misalignment. The choice between them depends on whether your design requires a threaded connection for ease of adjustment and a compact profile, or a press-fit solution to handle high radial loads with angular movement. For specific design considerations regarding load handling, please consult our engineering team for a detailed analysis.

2. What are the signs of impending failure for a ball joint rod end and how can they be mitigated?

Common indicators of wear and impending failure for ball joint rod ends include increased rotational play, noticeable noise (such as clicking or grinding), and corrosion on the bearing surfaces. These issues often arise from inadequate lubrication, exposure to contaminants, or exceeding the bearing's rated load capacity. To mitigate these problems, it is crucial to adhere to a regular lubrication schedule using a compatible grease and to protect the bearing with a sealed boot in abrasive or wet environments. Proper initial selection based on static and dynamic load requirements is also critical to ensure a long operational lifespan. If you are experiencing premature wear, we can help assess your specific application and recommend a more suitable product or maintenance protocol.
