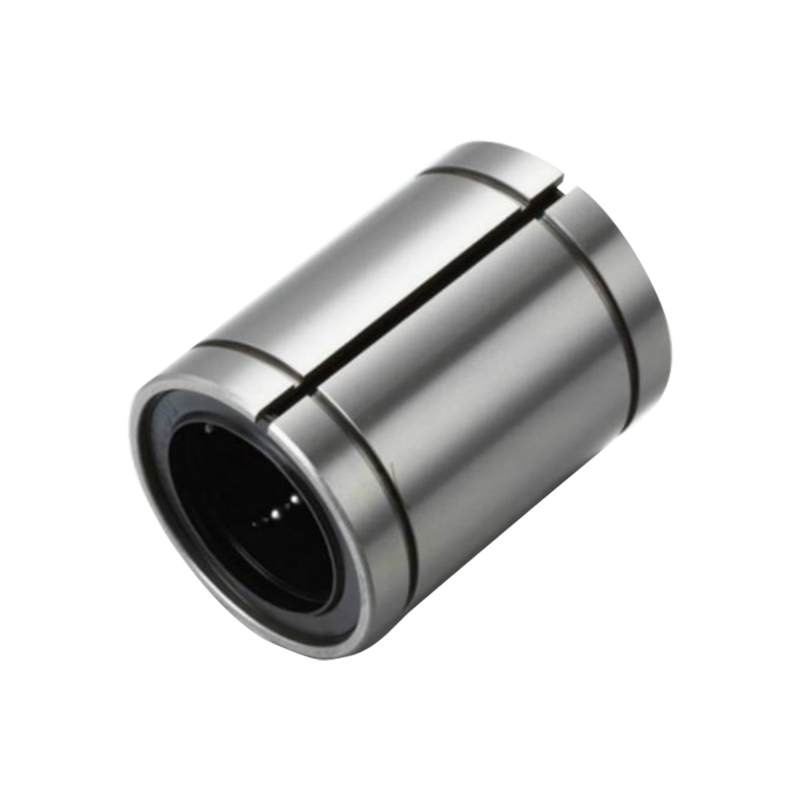

LM..UU-AJ series adjustable linear ball bearings are a high-performance linear motion solution that are widely used in industrial automation, robots, CNC machine tools and other fields. This series of products is made of high-quality materials with excellent wear resistance and low friction characteristics, ensuring smooth movement and high load capacity. Its adjustable design allows users to adjust the bearing clearance according to specific needs, providing better stability and accuracy. In addition, LM..UU-AJ series bearings also have a sealed design, which effectively prevents the intrusion of dust and impurities and extends their service life. This series can maintain excellent performance whether operating at high speed or under heavy load conditions, making it an ideal choice for those pursuing efficient and precise linear motion.
Product parameters
| Resin retainer | Nominal shaft diameter | dr | Major dimensions and tolerance | Eccentricity | Radial clearance (Max) | Basic load rating(kN) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

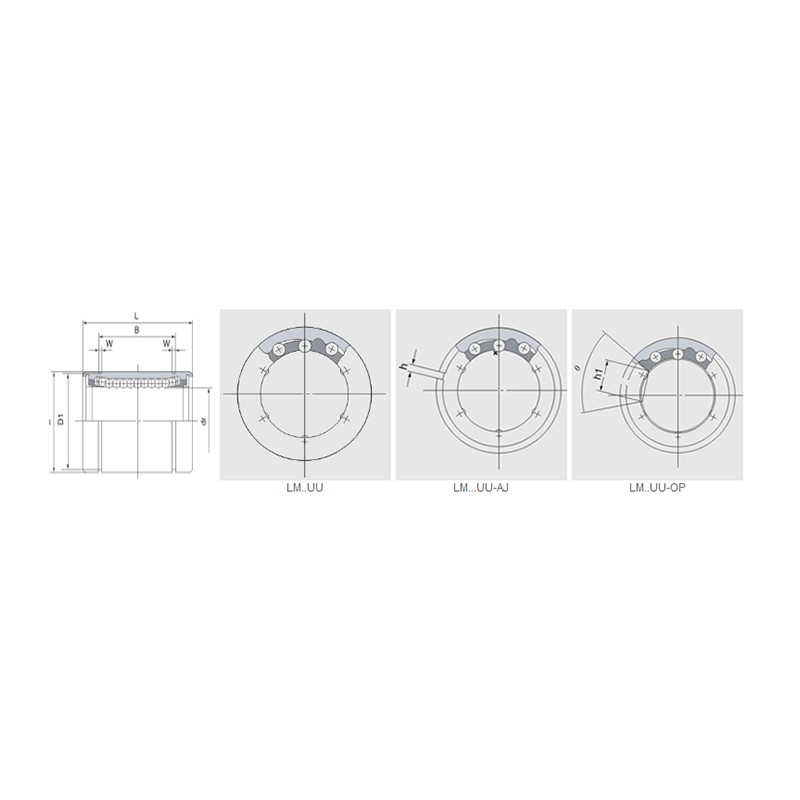

| LM…UU | Ball circuit | Weight(Kg) | LM…UU-AJ | Ball circuit | Weight | LM…UU-OP | Ball circuit | Weight(Kg) | mm | mm | Tolerance | Tolerance | D mm | Tolerance(μm) | L mm | Tolerance(μm) | B mm | Tolerance(μm) | W(mm) | D1(mm) | h(mm) | h1(mm) | θ | Precision | High | Dynamic | Static | |
| LM…UU | Ball circuit | Weight | LM…UU-AJ | Ball circuit | Weight | LM…UU-OP | Ball circuit | Weight | Precision | High | Tolerance(μm) | Tolerance(μm) | Tolerance(μm) | Precision | High | Co N | Co N | |||||||||||
| LM3 | 4 | 1.35 | — | — | — | — | — | — | 3 | 3 | 0/-5 | 0/-8 | 7 | 0/-9 | 10 | 0/-120 | — | — | — | — | — | — | — | 4 | 8 | -3 | 69 | 105 |
| LM4 | 4 | 1.9 | — | — | — | — | — | — | 4 | 4 | 0/-5 | 0/-8 | 8 | 0/-9 | 12 | 0/-120 | — | — | — | — | — | — | — | 4 | 8 | -3 | 88 | 127 |
| LM5UU | 4 | 4 | — | — | — | — | — | — | 5 | 5 | 0/-5 | 0/-8 | 10 | 0/-9 | 15 | 0/-120 | 10.2 | 0/-200 | 1.1 | 9.6 | — | — | — | 4 | 8 | -3 | 167 | 206 |
| LM6UU | 4 | 7.6 | LM6UU-AJ | 4 | 7.5 | — | — | — | 6 | 6 | 0/-6 | 0/-9 | 12 | 0/-11 | 19 | 0/-200 | 13.5 | 0/-200 | 1.1 | 11.5 | 1 | — | — | 8 | 12 | -3 | 206 | 265 |
| LM8SUU | 4 | 10.4 | LM8SUU-AJ | 4 | 10 | — | — | — | 8 | 8 | 0/-6 | 0/-9 | 15 | 0/-11 | 17 | 0/-200 | 11.5 | 0/-200 | 1.1 | 14.3 | 1 | — | — | 8 | 12 | -3 | 176 | 216 |
| LM8UU | 4 | 15 | LM8UU-AJ | 4 | 14.7 | — | — | — | 8 | 8 | 0/-6 | 0/-9 | 15 | 0/-11 | 24 | 0/-200 | 17.5 | 0/-200 | 1.1 | 14.3 | 1 | — | — | 8 | 12 | -3 | 274 | 392 |
| LM10UU | 4 | 29.5 | LM10UU-AJ | 4 | 29 | LM10UU-OP | 3 | 23 | 10 | 10 | 0/-6 | 0/-9 | 19 | 0/-13 | 29 | 0/-200 | 22 | 0/-200 | 1.3 | 18 | 1 | 6.8 | 80° | 8 | 12 | -4 | 372 | 549 |
| LM12UU | 4 | 31.5 | LM12UU-AJ | 4 | 31 | LM12UU-OP | 3 | 25 | 12 | 12 | 0/-6 | 0/-9 | 21 | 0/-13 | 30 | 0/-200 | 23 | 0/-200 | 1.3 | 20 | 1.5 | 8 | 80° | 8 | 12 | -4 | 510 | 784 |
| LM13UU | 4 | 43 | LM13UU-AJ | 4 | 42 | LM13UU-OP | 3 | 34 | 13 | 13 | 0/-6 | 0/-9 | 23 | 0/-13 | 32 | 0/-200 | 23 | 0/-200 | 1.3 | 22 | 1.5 | 9 | 80° | 8 | 12 | -4 | 510 | 784 |
| LM16UU | 5 | 69 | LM16UU-AJ | 5 | 68 | LM16UU-OP | 4 | 52 | 16 | 16 | 0/-6 | 0/-9 | 28 | 0/-13 | 37 | 0/-200 | 26.5 | 0/-200 | 1.6 | 27 | 1.5 | 11 | 80° | 8 | 12 | -6 | 774 | 1180 |
| LM20UU | 5 | 87 | LM20UU-AJ | 5 | 85 | LM20UU-OP | 4 | 69 | 20 | 20 | 0/-7 | 0/-10 | 32 | 0/-16 | 42 | 0/-200 | 30.5 | 0/-200 | 1.6 | 30.5 | 1.5 | 11 | 60° | 10 | 15 | -6 | 882 | 1370 |
| LM25UU | 6 | 220 | LM25UU-AJ | 6 | 216 | LM25UU-OP | 5 | 188 | 25 | 25 | 0/-7 | 0/-10 | 40 | 0/-16 | 59 | 0/-300 | 41 | 0/-300 | 1.85 | 38 | 2 | 12 | 50° | 10 | 15 | -6 | 980 | 1570 |
| LM30UU | 6 | 250 | LM30UU-AJ | 6 | 245 | LM30UU-OP | 5 | 210 | 30 | 30 | 0/-7 | 0/-10 | 45 | 0/-16 | 64 | 0/-300 | 44.5 | 0/-300 | 1.85 | 43 | 2.5 | 15 | 50° | 10 | 15 | -8 | 1570 | 2740 |
| LM35UU | 6 | 390 | LM35UU-AJ | 6 | 384 | LM35UU-OP | 5 | 335 | 35 | 35 | 0/-8 | 0/-12 | 52 | 0/-19 | 70 | 0/-300 | 49.5 | 0/-300 | 2.1 | 49 | 2.5 | 17 | 50° | 12 | 20 | -8 | 1670 | 3140 |
| LM40UU | 6 | 585 | LM40UU-AJ | 6 | 579 | LM40UU-OP | 5 | 500 | 40 | 40 | 0/-8 | 0/-12 | 60 | 0/-19 | 80 | 0/-300 | 60.5 | 0/-300 | 2.1 | 57 | 3 | 20 | 50° | 12 | 20 | -10 | 2160 | 420 |
| LM50UU | 6 | 1580 | LM50UU-AJ | 6 | 1560 | LM50UU-OP | 5 | 1340 | 50 | 50 | 0/-8 | 0/-12 | 80 | 0/-19 | 100 | 0/-300 | 74 | 0/-300 | 2.6 | 76.5 | 3 | 25 | 50° | 12 | 20 | -13 | 3820 | 7940 |
| LM60UU | 6 | 1860 | LM60UU-AJ | 6 | 1820 | LM60UU-OP | 5 | 1610 | 60 | 60 | 0/-9 | 0/-15 | 90 | 0/-22 | 110 | 0/-300 | 85 | 0/-300 | 3.15 | 86.5 | 3 | 30 | 50° | 17 | 25 | -13 | 4700 | 100 |
| LM80UU | 6 | 4420 | LM80UU-AJ | 6 | 4300 | LM80UU-OP | 5 | 3650 | 80 | 80 | 0/-9 | 0/-15 | 120 | 0/-22 | 140 | 0/-400 | 105.5 | 0/-400 | 4.15 | 116 | 3 | 40 | 50° | 17 | 25 | -20 | 7350 | 160 |
| LM100UU | 6 | 8600 | LM100UU-AJ | 6 | 8540 | LM100UU-OP | 5 | 7200 | 100 | 100 | 0/-10 | 0/-20 | 150 | 0/-25 | 175 | 0/-400 | 125.5 | 0/-400 | 4.15 | 145 | 3 | 50 | 50° | 20 | 30 | -20 | 14100 | 34800 |
| LM120UU | 8 | 15000 | LM120UU-AJ | 8 | 14900 | LM120UU-OP | 6 | 11600 | 120 | 120 | 0/-10 | 0/-20 | 180 | 0/-25 | 200 | 0/-400 | 158.6 | 0/-400 | 4.15 | 175 | 3 | 85 | 80° | 20 | 30 | -25 | 16400 | 400 |
| LM150UU | 8 | 20250 | LM150UU-AJ | 8 | 20150 | LM150UU-OP | 6 | 15700 | 150 | - | -13 | 0/-25 | 210 | -29 | 240 | 0/-400 | 170.6 | 0/-400 | 5.15 | 204 | 3 | 105 | 80° | 25 | 40 | -25 | 21100 | 54300 |
