Innovative Application of Spherical Plain Bearings in Aerospace

In the aerospace field, high-performance mechanical components are the key to ensuring flight safety and efficiency. In recent years, with the continuous advancement of technology, the application of spherical plain bearings in the aerospace field has achieved significant innovative breakthroughs, providing important support for the design and performance improvement of aircraft.

1. Characteristics and advantages of spherical plain bearings

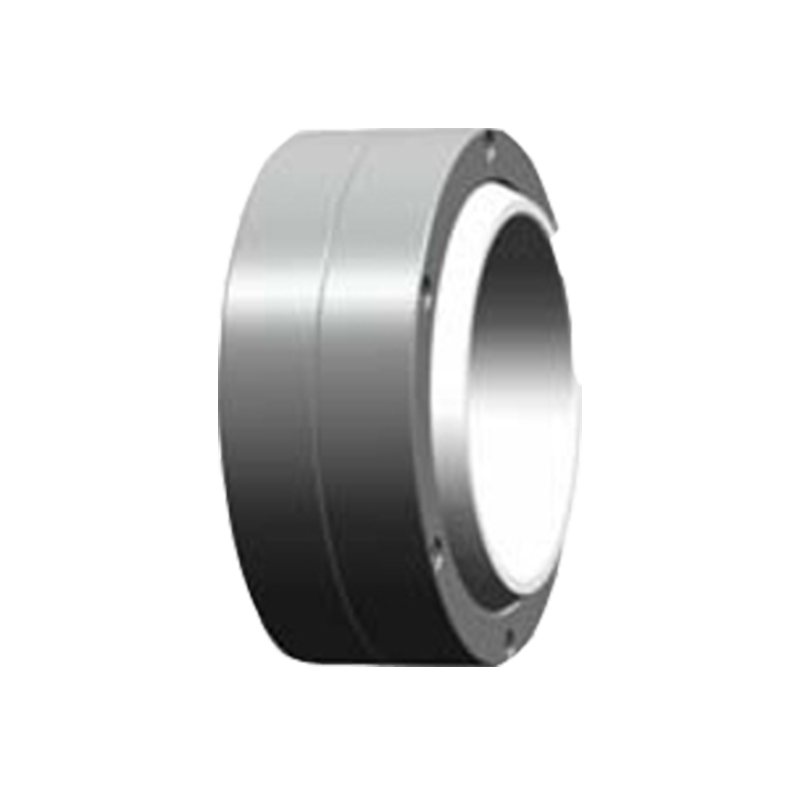

Spherical plain bearings are high-performance bearings that can withstand composite loads (including radial, axial and moment loads) and have the following key characteristics:
High load capacity: Able to withstand high loads while maintaining stable operating performance.
Self-aligning ability: Allows a certain angular deviation between the shaft and the bearing seat to reduce the impact of installation errors on the equipment.
Corrosion resistance: Adopts special materials and surface treatment processes to adapt to the harsh environment of the aerospace field.
Long life and high reliability: Through optimized design and material selection, spherical plain bearings can maintain long-term stable operation under extreme conditions.

2. Innovative application areas
Application in flight control systems
Flight control surfaces: In the aircraft's ailerons, elevators, and rudders, spherical plane bearings are used to connect the control surfaces to the fuselage structure. Their self-aligning ability and high load-bearing capacity ensure the precise control and reliability of the control surfaces under complex aerodynamic loads.
Flight control actuators: Spherical plane bearings are integrated into flight control actuators to transmit and convert power, ensuring the rapid response and high-precision control of flight control systems in various flight attitudes.

Application in aircraft engines
Engine blade support: In the blade support system of aircraft engines, spherical plane bearings can withstand the composite loads under high speed and high temperature environments, while providing stable support and self-aligning functions to reduce blade vibration and fatigue damage.
Engine suspension system: Spherical plane bearings are used in the engine suspension system to connect the engine to the fuselage structure, ensuring that the engine remains stable during flight and can withstand load changes in various flight attitudes.

Application in aerospace structural parts
Landing gear system: In the joints of the aircraft landing gear, spherical plane bearings can withstand high impact loads and multi-directional torques, ensuring the reliability and safety of the landing gear during take-off and landing.
Fuselage connectors: Spherical plane bearings are used in the connection parts of the fuselage structure, such as wing-body connection, tail connection, etc., to provide high load capacity and self-aligning function, reduce structural stress concentration, and extend structural life.

Application in UAVs and spacecraft
UAV flight control system: In small UAVs and unmanned aerial vehicles, spherical plane bearings are used in the joints of the flight control system, providing lightweight, high-precision and high-reliability solutions.
Spacecraft attitude control: In the attitude control mechanism of the spacecraft, spherical plane bearings can withstand extreme space environments, including high vacuum, high and low temperature changes, etc., to ensure the stable operation of the attitude control system of the spacecraft.

3. Technological innovation and future prospects
With the continuous development of aerospace technology, the technological innovation of spherical plane bearings is also continuously advancing. For example:
Application of new materials: Use high-performance engineering plastics, ceramics and composite materials to further improve the corrosion resistance and wear resistance of bearings.
Intelligent bearing technology: integrated sensors and monitoring systems to achieve real-time bearing status monitoring and fault warning, improving aircraft safety and maintenance efficiency.
Lightweight design: by optimizing structural design and material selection, the weight of the bearing is reduced while maintaining its high performance and reliability.
